UXFlowDocumentScrollViewer is a feature-rich user interface control for displaying FlowDocument content on continuous scrolling mode. UXFlowDocumentScrollViewer facilitates users with sophisticated viewing experiences, allowing them to easily view, zoom, and search throughout the pages in the document. In addition, users can also print the document using customized paper size, where the document will be paged automatically for printing purpose. Text selection is supported as well, allowing users to select a range of text and copy them to clipboard for latter use.

Using UXFlowDocumentScrollViewer

You use UXFlowDocumentScrollViewer to view a flow document, which you can set through the provided Source property, or specify the document as the content of UXFlowDocumentScrollViewer. UXFlowDocumentScrollViewer requires the document to be of FlowDocument type. The document will flow inside UXFlowDocumentScrollViewer based on the view port in UXFlowDocumentScrollViewer .

A FlowDocument contains a collection of Block and Inline elements. Those elements are combined to create a document that can flow inside a viewer control. FlowDocument are part of the ClientUI document framework, which allow developers to create rich document content that can be viewed consistently in both Silverlight and WPF application. For more information about ClientUI flow document framework, see Flow Document Framework Overview.

The following example shows how to define a FlowDocument and display it in UXFlowDocumentScrollViewer.

</Intersoft:UXFlowDocumentScrollViewer>
    <Intersoft:FlowDocument>
        <Intersoft:Paragraph>
            <Intersoft:Run>
                Hello World!
            </Intersoft:Run>
        </Intersoft:Paragraph>
    </Intersoft:FlowDocument>
</Intersoft:UXFlowDocumentScrollViewer>

Loading FlowDocument

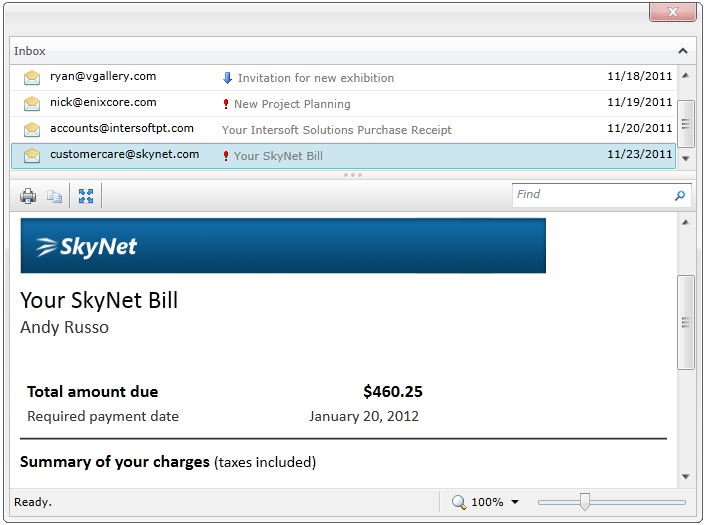

There are a number of ways to load a FlowDocument in UXFlowDocumentScrollViewer. You can set the Source property of the control to the URI of the document, or set the Document property to a FlowDocument object. You can bind the Source property for dynamic loading of a FlowDocument. If you have document that is not the type of FlowDocument, you can specify a converter using DocumentConverter. For example, you can load an HTML file and convert it to a FlowDocument object.

<Intersoft:UXPage
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        mc:Ignorable="d"
        xmlns:Intersoft="http://intersoft.clientui.com/schemas"
    xmlns:Converters="clr-namespace:TestProject.Converters"
        x:Class="TestProject.TestFlowDoc"
        Title="TestFlowDoc Page"
        d:DesignWidth="640" d:DesignHeight="480">

    <Intersoft:UXPage.Resources>
        <Converters:HtmlConverter x:Key="HtmlConverter"/>
    </Intersoft:UXPage.Resources>

    <Grid x:Name="LayoutRoot">
        <Intersoft:UXFlowDocumentScrollViewer Background="White" Source="{Binding SelectedEmail.BodySource}"
                                              DocumentConverter="{StaticResource HtmlConverter}"/>
    </Grid>
</Intersoft:UXPage>

You might need to change the structure of FlowDocument programmatically. In this case, you need to enable IsDocumentChanged property so that the changes will have effect in the viewer rendering.

private void ChangeDocumentStructure()
{
    FlowDocument doc = this.Viewer1.Document;

    Span span = new Span();
    Run run = new Run("Hello World");
    span.Inlines.Add(run);

    Paragraph p = new Paragraph();
    p.Inlines.Add(span);

    doc.Blocks.Insert(0, p);
    this.Viewer1.IsDocumentChanged = true;
}

You can allow users to open a FlowDocument from local computer at runtime. You must display the Open command button by enabling CanUserOpenDocument property. To open a local FlowDocument, users click on the Open command button and select a document from the Open File dialog box such as shown in the following screenshot.

Understanding UXFlowDocumentScrollViewer Elements

UXFlowDocumentScrollViewer facilitates users with the capability to open, view, and search a document. To achieve these capabilities, UXFlowDocumentScrollViewer comes with rich user interface elements that consisted of UXSearchBox, UXToolBar and UXStatusBar.

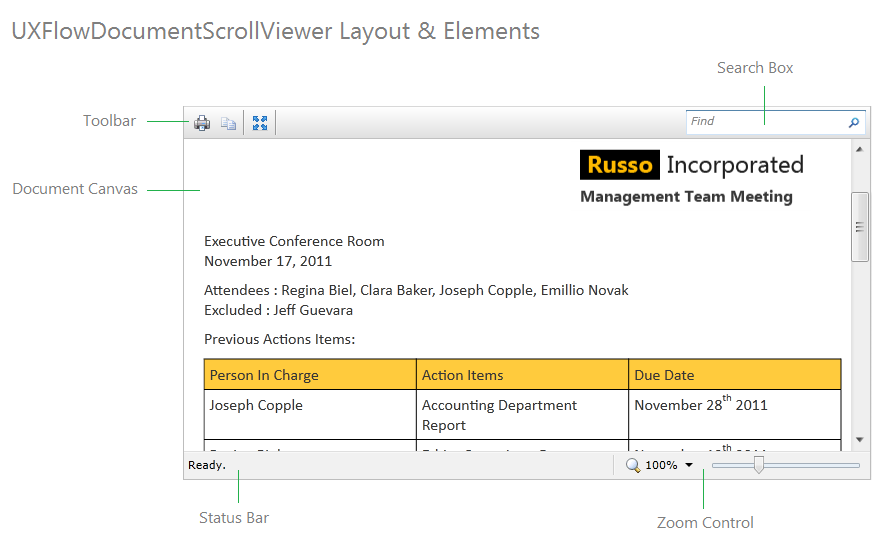

The following figure illustrates the main layout and user interface elements of the UXFlowDocumentScrollViewer control.

Although the UXFlowDocumentScrollViewer already provides predefined UI elements to allow rich user interaction, you are free to customize any of the elements to suit your application's preferences – thanks to the loosely-coupled architecture design that made the customization possible. You can customize the styles and appearance of the elements entirely by editing the control template using designer tools such as Expression Blend. To learn more about the commands used in the predefined UI elements, see the UXFlowDocumentScrollViewer Commands section later in this topic.

You can configure the UXFlowDocumentScrollViewer to display in full screen initially by setting the IsFullScreen property to true. Alternatively, users can toggle the full screen mode at runtime through the full screen command button in the tool bar.

Customizing Text Selection Appearance

UXFlowDocumentScrollViewer supports text highlighting for FlowDocument elements. The highlighting is applied on both text selection and search results found on the document. You can customize the selection brushes through the provided properties.

The properties and the default values are listed in the table below.

The following example shows how to customize the selection brushes in UXFlowDocumentScrollViewer.

<Intersoft:UXFlowDocumentScrollViewer HighlightSelectionBrush="#64006CC0" HighlightSearchBrush="#4CFAFF00"
                            HighlightSelectedSearchBrush="#4C0074FF"/>

Localizing UXFlowDocumentScrollViewer

UXFlowDocumentScrollViewer provides full localization support for the textual content used in the user interface elements. The following table lists the localizable string resources.

UXFlowDocumentScrollViewer Toolbar

UXFlowDocumentScrollViewer provides comprehensive commands for rich viewing experiences. Many of the essential commands are presented as command buttons in the toolbar and status bar section of the control. The complete elements can be seen in the section above.

The following table lists the commands presented in the toolbar section of the UXFlowDocumentScrollViewer control.

Opening Document
	Open a File dialog box to select the FlowDocument file to view.
Page Zooming
	Magnify the document size by a preset ratio.
Search
	The TextBox element to enter search criteria.
Others
	Toggle the UXFlowDocumentScrollViewer control to fill the screen.
	Print the document using print file dialog.
	Copy the highlighted text.

UXFlowDocumentScrollViewer Commands

UXFlowDocumentScrollViewer is built around the commanding semantics which allows the document interaction to be executed through declarative definition in the XAML markup. The commanding semantics is also an ideal approach for MVVM pattern development.

UXFlowDocumentScrollViewer includes predefined commands to interact with the document which are described in the following table.
