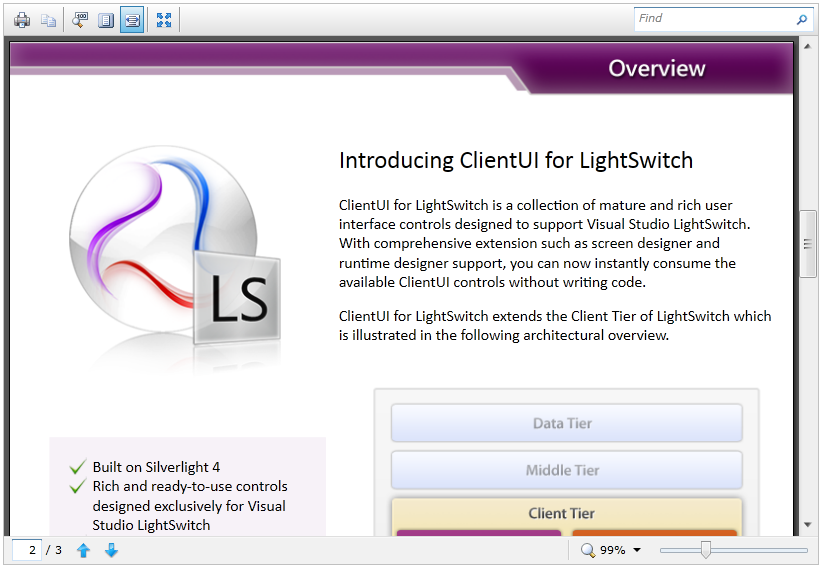

UXFlowDocumentPageViewer is a feature-rich user interface control for displaying FlowDocument content on page basis. UXFlowDocumentPageViewer facilitates users with sophisticated viewing experiences, allowing them to easily view, zoom, and search throughout the pages in the document. In addition, users can also print the document using customized paper size, where the document will be paged automatically for printing purpose. Text selection is supported as well, allowing users to select a range of text and copy them to clipboard for latter use.

Using UXFlowDocumentPageViewer

You use UXFlowDocumentPageViewer to view a flow document, which you can set through the provided Source property, or specify the document as the content of UXFlowDocumentPageViewer. UXFlowDocumentPageViewer requires the document to be of FlowDocument type. The document will flow inside UXFlowDocumentPageViewer based on the page configuration in FlowDocument.

A FlowDocument contains a collection of Block and Inline elements. Those elements are combined to create a document that can flow inside a viewer control. FlowDocument are part of the ClientUI document framework, which allow developers to create rich document content that can be viewed consistently in both Silverlight and WPF application. For more information about ClientUI flow document framework, see Flow Document Framework Overview.

The following example shows how to define a FlowDocument and display it in UXFlowDocumentPageViewer.

<Intersoft:UXFlowDocumentPageViewer>
    <Intersoft:FlowDocument>
        <Intersoft:Paragraph>
            <Intersoft:Run>
                Hello World!
            </Intersoft:Run>
        </Intersoft:Paragraph>
    </Intersoft:FlowDocument>
</Intersoft:UXFlowDocumentPageViewer>

Loading FlowDocument

There are several ways to load a FlowDocument in UXFlowDocumentPageViewer. You can set the Source property of the control to the URI of the document, or set the Document property to a FlowDocument object. You can bind the Source property for dynamic loading of a FlowDocument. If you have document that is not in the type of FlowDocument, you can specify a converter using DocumentConverter. For example, you can load an HTML file and convert it to a FlowDocument object.

<Intersoft:UXPage
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        mc:Ignorable="d"
        xmlns:Intersoft="http://intersoft.clientui.com/schemas"
        xmlns:Converters="clr-namespace:TestProject.Converters"
        x:Class="TestProject.TestFlowDoc"
        Title="TestFlowDoc Page"
        d:DesignWidth="640" d:DesignHeight="480">

    <Intersoft:UXPage.Resources>
        <Converters:HtmlConverter x:Key="HtmlConverter"/>
    </Intersoft:UXPage.Resources>

    <Grid x:Name="LayoutRoot">
        <Intersoft:UXFlowDocumentViewer Background="White" Source="{Binding SelectedEmail.BodySource}"
                                        DocumentConverter="{StaticResource HtmlConverter}"/>
    </Grid>
</Intersoft:UXPage>

You might need to change the structure of FlowDocument programmatically. In this case, you need to enable IsDocumentChanged property so that the changes will have effect in the viewer rendering.

private void ChangeDocumentStructure()
{
    FlowDocument doc = this.Viewer1.Document;

    Span span = new Span();
    Run run = new Run("Hello World");
    span.Inlines.Add(run);

    Paragraph p = new Paragraph();
    p.Inlines.Add(span);

    doc.Blocks.Insert(0, p);
    this.Viewer1.IsDocumentChanged = true;
}

You can allow users to open a FlowDocument from local computer at runtime. You must display the Open command button by enabling CanUserOpenDocument property. To open a local FlowDocument, users click on the Open command button and select a document from the Open File dialog box such as shown in the following screenshot.

Understanding UXFlowDocumentPageViewer Elements

UXFlowDocumentPageViewer facilitates users with the capability to open, view, and search a document. To achieve these capabilities, UXFlowDocumentPageViewer comes with rich user interface elements that consisted of UXSearchBox, UXToolBar and UXStatusBar.

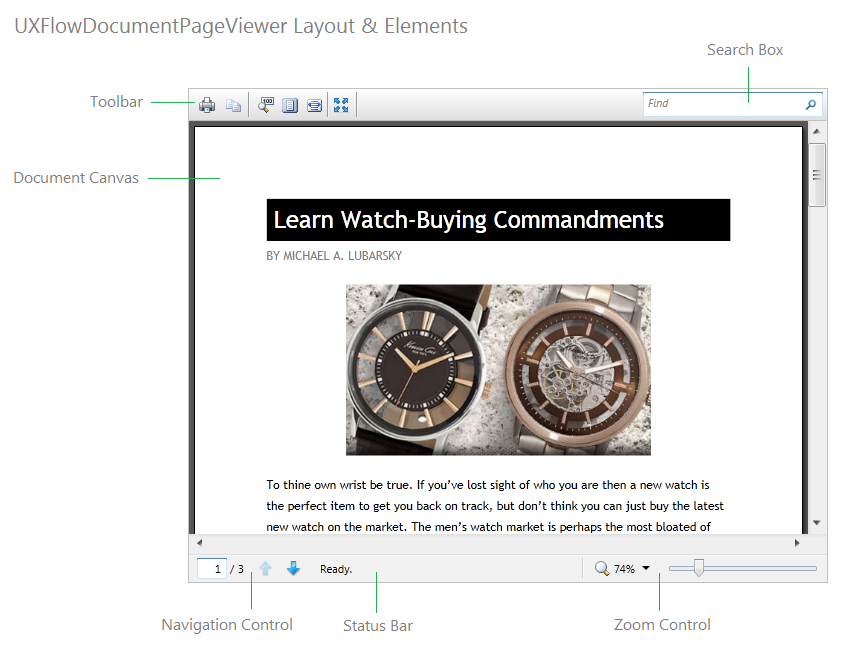

The following figure illustrates the main layout and user interface elements of the UXFlowDocumentPageViewer control.

Although the UXFlowDocumentPageViewer already provides predefined UI elements to allow rich user interaction, you are free to customize any of the elements to suit your application's preferences – thanks to the loosely-coupled architecture design that made the customization possible. You can customize the styles and appearance of the elements entirely by editing the control template using designer tools such as Expression Blend. To learn more about the commands used in the predefined UI elements, see the UXFlowDocumentPageViewer Commands section.

Customizing Text Selection Appearance

UXFlowDocumentPageViewer supports text highlighting for FlowDocument elements. The highlighting is applied on both text selection and search results found on the document. You can customize the selection brushes through the provided properties.

The properties and the default values are listed in the table below.

The following example shows how to customize the selection brushes in UXFlowDocumentPageViewer.

<Intersoft:UXFlowDocumentPageViewer HighlightSelectionBrush="#64006CC0" HighlightSearchBrush="#4CFAFF00"
                            HighlightSelectedSearchBrush="#4C0074FF"/>

Customizing Zoom Mode

UXFlowDocumentPageViewer features rich viewing capabilities that are comparable to the industry's popular viewers such as Adobe Reader, including various zoom presets and custom zoom ratio. UXFlowDocumentPageViewer provides 4 zoom mode which can be customized through the ZoomMode property.

The following list describes the supported zoom mode.

• ActualSize
  Sets the zoom mode to the original aspect ratio which display the actual size of the document.

• FitToWidth
  Automatically maintain the zoom ratio and arrange the document's width to fit the page canvas. This mode eliminates the need of horizontal scrollbar which significantly improves reading experience.

• FitToHeight
  Automatically maintain the zoom ratio and arrange the document's height to fit the page canvas. This mode ensures the entire page to be visible in the canvas which is ideal for quick browsing or print preview.

• Custom
  Sets the zoom mode to a custom, user-defined value. You can predefine the custom zoom value through the ZoomLevel property.

You can also configure the UXFlowDocumentPageViewer to display in full screen initially by setting the IsFullScreen property to true. Alternatively, users can toggle the full screen mode at runtime through the full screen command button in the tool bar.

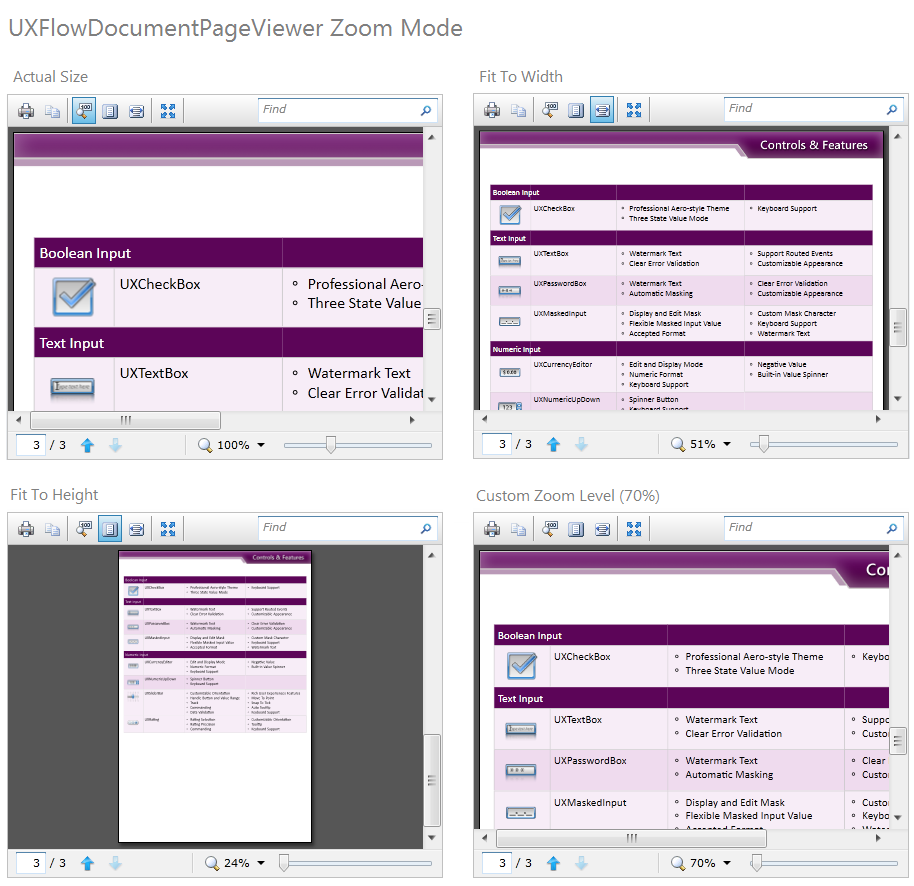

The following illustration compares the various zoom mode supported in UXFlowDocumentPageViewer .

Localizing UXFlowDocumentPageViewer

UXFlowDocumentPageViewer provides full localization support for the textual content used in the user interface elements. The following table lists the localizable string resources.

UXFlowDocumentPageViewer Toolbar

UXFlowDocumentPageViewer provides comprehensive commands for rich viewing experiences. Many of the essential commands are presented as command buttons in the toolbar and status bar section of the control. The complete elements can be seen in the section above.

The following table lists the commands presented in the toolbar section of the UXFlowDocumentPageViewer control.

Opening Document
	Open a File dialog box to select the FlowDocument file to view.
Page Navigation
	Displays the current page shown in the content section and the total page count of the document. You can enter a page number to directly jump to the specific page.
	Scroll to the previous page in the document.
	Scroll to the next page in the document.
Page Zooming
	Sets the zoom mode to show the actual size of the document.
	Sets the zoom mode to fit the width of the document.
	Sets the zoom mode to fit the height of the document.
	Magnify the document size by a preset ratio.
Search
	The TextBox element to enter search criteria.
Others
	Toggle the UXFlowDocumentPageViewer control to fill the screen.
	Print the document using print file dialog.
	Copy the highlighted text.

UXFlowDocumentPageViewer Commands

UXFlowDocumentPageViewer is built around the commanding semantics which allows the document interaction to be executed through declarative definition in the XAML markup. The commanding semantics is also an ideal approach for MVVM pattern development.

UXFlowDocumentPageViewer includes predefined commands to interact with the document which are described in the following table.
