UXCalendar is a sophisticated calendar control with comprehensive view modes featuring multiple views and multiple date selection feature.

Using UXCalendar

UXCalendar is a rich, full-featured calendar control that allows users to select a date or a range of dates using a visual calendar display. A calendar displays either the days of a month, the months of a year, the years of a decade, or the decades of century, depending on the value of the DisplayDate and InitialDisplayMode properties. If the DisplayDate property is not specified, the UXCalendar will automatically use the current date as its DisplayDate.

The following example shows how to define simple UXCalendar in XAML

<Intersoft:UXCalendar x:Name="UXCalendar1" DisplayDate="12/1/2010" />

For more information about supported selection mode and how to obtain input in UXCalendar, see Understanding UXCalendar Selection.

Customizing Culture

UXCalendar supports localization through the Culture property. You can set the culture to one of the values supported in .NET Framework. The following example shows how to customize the UXCalendar to use Germany culture.

<Intersoft:UXCalendar x:Name="UXCalendar1" Culture="de" />

Customizing Transitions

UXCalendar comes with elegant transitions which perform animation when the calendar is navigating, for instances, navigating to the previous or next month, navigating up to the parent or child view, and more. The transition uses an innovative double-buffering algorithm to create stunning and responsive animation even in multiple calendar view.

The transition is enabled by default. You can disable the transition by setting the IsTransitionEnabled property to false.

Understanding UXCalendar Layout

UXCalendar can display a single or multiple calendar views based on CalendarViewCount property. There are several layout differences between the single and multiple calendar views as described in the following figures.

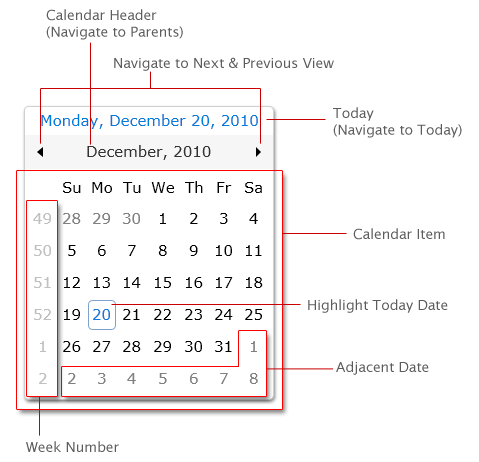

Single Calendar View

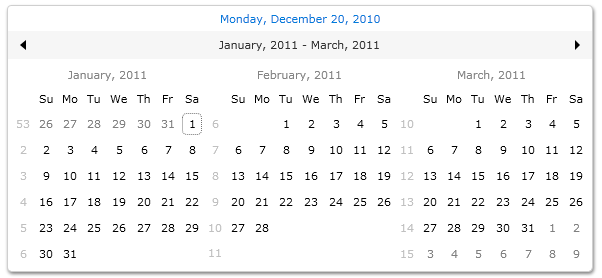

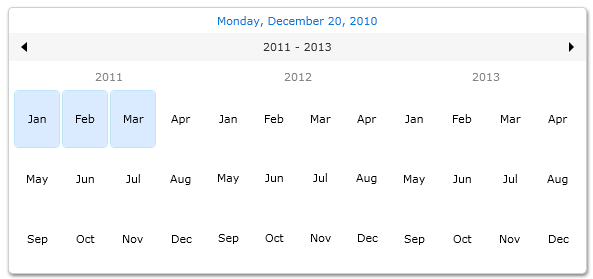

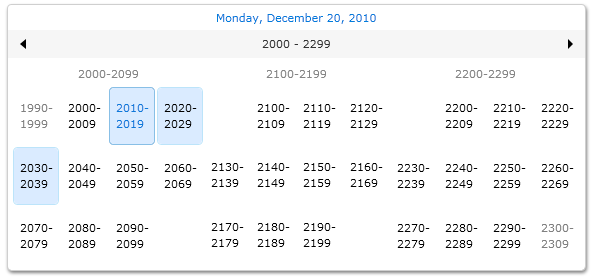

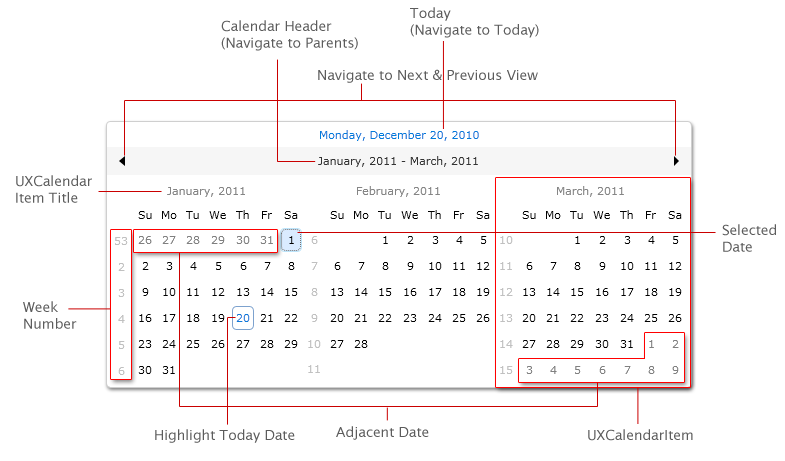

Multiple Calendar Views

The layout of UXCalendar is thoughtfully designed to support fluid layout which dynamically shrink or grow its size based on the content dimension, such as when you change the FontSize to a bigger value.

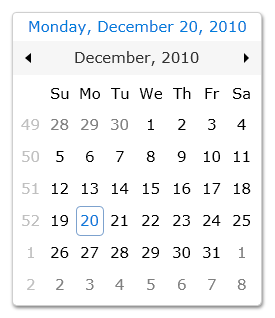

The following code shows how to create UXCalendar with larger FontSize.

<Intersoft:UXCalendar x:Name="UXCalendar1" FontSize="15"/>

Customizing UXCalendar

There are a host of behaviors that you can customize in the UXCalendar. The following list are the properties that you can configure in UXCalendar.

• InitialDisplayMode
• CalendarViewCount
• WeekNumberRule
• FirstDayOfWeek
• WeekNumberVisibility
• IsTodayHighlighted
• CalendarTodayVisibility
• TodayDateFormat
• TitleDateFormat
• TitleRangeFormat
• DisplayDateStart
• DisplayDateEnd
• GenerateAdjacentMonthDays

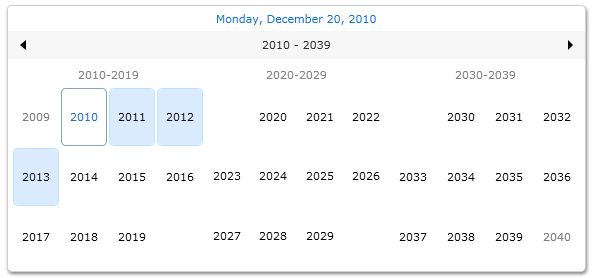

Customizing Display Mode

A calendar displays either the days of a month, the months of a year, the years of a decade, or the decades of century depending on the value of the DisplayDate and InitialDisplayMode properties. The following are display modes that available in UXCalendar:

• Month
  Displays a month at a time.
• Year
  Displays a year at a time.
• Decade
  Displays a decade at a time.
• Century
  Displays a century at a time.

<StackPanel>
    <Intersoft:UXCalendar x:Name="UXCalendar1" InitialDisplayMode="Month"/>
    <Intersoft:UXCalendar x:Name="UXCalendar2" InitialDisplayMode="Year"/>
    <Intersoft:UXCalendar x:Name="UXCalendar3" InitialDisplayMode="Decade"/>
    <Intersoft:UXCalendar x:Name="UXCalendar4" InitialDisplayMode="Centry"/>
</StackPanel>

Customizing Display Range

The range of dates displayed is governed by the DisplayDateStart and DisplayDateEnd properties. If DisplayMode is Year or Decade, only months or years that contain displayable dates will be displayed.

The following example shows UXCalendar with display range starts from January 2010 to December 2011.

<Intersoft:UXCalendar x:Name="UXCalendar1" DisplayDate="1/1/2010"     DisplayDateStart="1/1/2010" DisplayDateEnd="12/31/2011"/>

Customizing Calendar View Count

You can set the UXCalendar to show multiple calendar view by setting the CalendarViewCount property such as shown in the following example.

<Intersoft:UXCalendar x:Name="UXCalendar1" DisplayDate="12/1/2010" CalendarViewCount="3"/>

Customizing Week Number

By default, the week number is displayed in UXCalendar. You can set the week number visibility by changing the WeekNumberVisibility property to Collapsed.

<Intersoft:UXCalendar x:Name="UXCalendar1" WeekNumberVisibility="Collapsed"/>

The calculation of week number is determined with FirstDayOfWeek and WeekNumberRule property. The combination of these two properties will affect the week number value of each week in UXCalendar.

The following example shows how to customize the week number behavior.

<Intersoft:UXCalendar x:Name="UXCalendar1" DisplayDate="12/1/2010" WeekNumberRule="FirstFullWeek" FirstDayOfWeek="Monday"/>

Customizing Today Highlight

By default, the current day (today) will be highlighted in UXCalendar. You can disable it by changing the IsTodayHighlighted property to False.

The following example shows UXCalendar with IsTodayHighlighted property is set to True.

<Intersoft:UXCalendar x:Name="UXCalendar1" DisplayDate="12/1/2010" IsTodayHighlighted=True/>

Customizing Calendar Today Visibility

Calendar Today is an element that shows today information which is located in the header of the UXCalendar as illustrated in the layout section.  This element is visible by default. You can hide this element by setting the CalendarTodayVisibility property to Collapsed.

<Intersoft:UXCalendar DisplayDate="12/20/2010" CalendarTodayVisibility="Collapsed" />

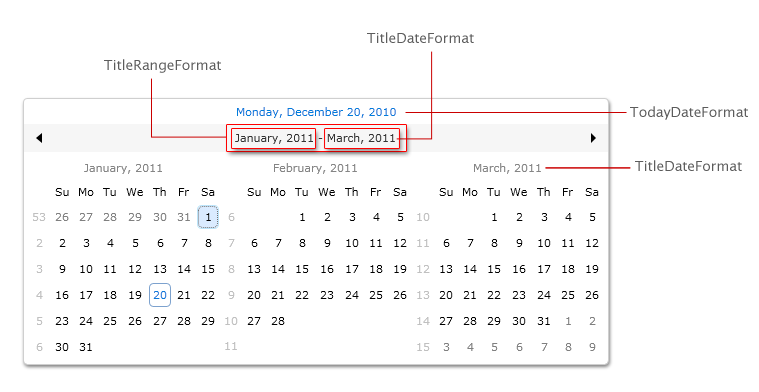

Customizing Date Title Format

The format of Date Title in UXCalendar can easily be customized. There are three properties that you can use to configure dates format in UXCalendar as follows:

• TodayDateFormat
  The date time format that will be used as the calendar's Today date string format. The default value is {0:dddd, MMMM d, yyyy}.
• TitleDateFormat
  The date time format that will be used as Date Title format for single date like in Month mode. The default value is {0:MMMMM, yyyy}.
• TitleRangeFormat
  The date time format that will be used as Date Title format for range date like in Decade, Century or multiple calendars mode.  The default value is {0} - {1}.

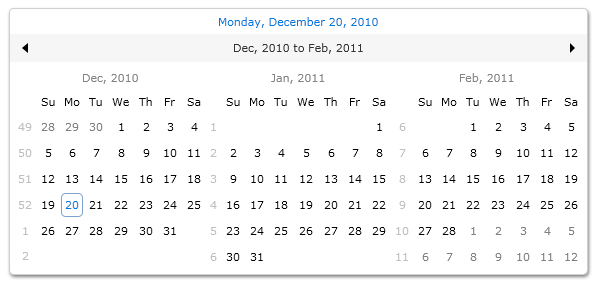

The following code shows how to modify Date Title formats in UXCalendar.

<Intersoft:UXCalendar x:Name="UXCalendar1" CalendarViewCount="3" HorizontalAlignment="Center" VerticalAlignment="Center" TitleDateFormat="{}{0:MMM, yyyy}" TitleRangeFormat="{}{0} to {1}">
</Intersoft:UXCalendar>

Customizing Adjacent Days Visibility

Adjacent Days are dates from the previous or next months that due to the nature of display have slots in the current display view. You can determine whether these adjacent days should be visible through the GenerateAdjacentMonthDays property.

If these adjacent days are visible, you can navigate to the previous or next month by selecting the adjacent days using keyboard or mouse. To learn more about this feature, see Understanding UXCalendar Navigation section.

The following code shows how to hide the Adjacent Days in UXCalendar.

<Intersoft:UXCalendar x:Name="UXCalendar1" DisplayDate="12/1/2010" CalendarViewCount="2" GenerateAdjacentMonthDays="False"/>

In multiple calendars, adjacent date will only appear in the first and last calendar.

Understanding UXCalendar Navigation

There are several ways to navigate between date in UXCalendar. The following table lists all actions to perform navigation between date in UXCalendar.

Mouse Navigation

Understanding UXCalendar Selection

You can determine the selection mode of the UXCalendar from SelectionMode property. There are four selection mode in UXCalendar that you can select as follows.

• None
  Selection is disabled.
• SingleDate
  Users can select only a single date.
• SingleRange
  Users can select a range of continuous date.
• MultipleRange
  Users can select a different multiple range of date.

The following illustrations describe the selection mode supported in UXCalendar.

In SingleDate selection mode, you use the SelectedDate property to obtain the selected date. In SingleRange and MultipleRange selection mode, you use the SelectedDates property to obtain the collection of selected date.

Understanding UXCalendar Keyboard and Mouse Gestures

UXCalendar comes with both great user interface and user experience features. It implements comprehensive keyboard and mouse gestures support conforming to ISO 9241 usability standards.

The following section describes the user interactions to perform date selection in UXCalendar.

Keyboard Navigation

Mouse Navigation

Keyboard and Mouse Combination

Understanding UXCalendar Commands

UXCalendar is included with predefined commands for navigation which integrated in CalendarCommands and DateTimeCommands that you can use in your application. To learn about using commands in your application, see Commanding Overview.

The following table describes the built-in calendar commands that you can use to perform navigation in UXCalendar.

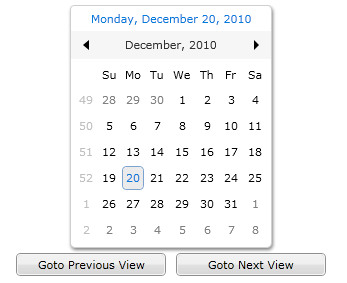

The following code shows how to use GotoNextView and GotoPreviousView command as UXCalendar navigation using UXButton.

<UserControl xmlns:Intersoft="http://intersoft.clientui.com/schemas"  x:Class="SilverlightApplication4.UXCalendarCommandSample"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:intersoft="clr-namespace:Intersoft.Client.UI.Aqua.UXInput;assembly=Intersoft.Client.UI.Aqua.UXInput"
mc:Ignorable="d"
d:DesignHeight="300" d:DesignWidth="400">

    <Grid x:Name="LayoutRoot" Background="White">
        <StackPanel Orientation="Vertical" HorizontalAlignment="Center">
            <Intersoft:UXCalendar x:Name="UXCalendar1" HorizontalAlignment="Center">
            </Intersoft:UXCalendar>
            <StackPanel Orientation="Horizontal">
                <Intersoft:UXButton Command="intersoft:CalendarCommands.GotoPreviousView" CommandTarget="{Binding ElementName=UXCalendar1}" Content="Goto Previous View" Height="23" Width="150" Margin="5,5"/>
                <Intersoft:UXButton Command="intersoft:CalendarCommands.GotoNextView" CommandTarget="{Binding ElementName=UXCalendar1}" Content="Goto Next View" Height="23" Width="150" Margin="5,5"/>
            </StackPanel>
        </StackPanel>
    </Grid>
</UserControl>

The following table lists the built-in commands related to date and time operation. You can use these commands to navigate to specific date based on each command characteristic.

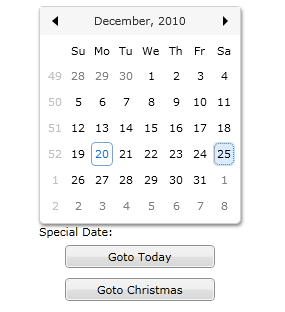

The following code shows how to use GotoDate and GotoToday command as UXCalendar navigation using UXButton.

<UserControl xmlns:Intersoft="http://intersoft.clientui.com/schemas"  x:Class="SilverlightApplication4.UXCalendarDateTimeCommand"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:intersoft="clr-namespace:Intersoft.Client.UI.Aqua.UXInput;assembly=Intersoft.Client.UI.Aqua.UXInput"
    mc:Ignorable="d"
    d:DesignHeight="300" d:DesignWidth="400">

    <Grid x:Name="LayoutRoot" Background="White">
        <StackPanel Orientation="Vertical" HorizontalAlignment="Center">
            <Intersoft:UXCalendar DisplayDate="1/1/2010" x:Name="UXCalendar1" HorizontalAlignment="Center" CalendarTodayVisibility="Collapsed">
            </Intersoft:UXCalendar>
            <StackPanel Orientation="Vertical">
                <TextBlock Text="Special Date:" />
                <Intersoft:UXButton Command="intersoft:DateTimeCommands.GotoToday" CommandTarget="{Binding ElementName=UXCalendar1}" Content="Goto Today" Height="23" Width="150" Margin="5,5"/>
                <Intersoft:UXButton Command="intersoft:DateTimeCommands.GotoDate" CommandParameter="12/25/2010" CommandTarget="{Binding ElementName=UXCalendar1}" Content="Goto Christmas" Height="23" Width="150" Margin="5,5"/>
            </StackPanel>
        </StackPanel>
    </Grid>
</UserControl>

Creating Events in UXCalendar

You can add events to UXCalendar by populating the Events property or EventsSource property. Events property accept object of type UXCalendarEventItem. You can create as many UXCalendarEventItem in the Events property by specifying the following properties.

• StartDate
  The start date of the event.
• EndDate
  The end date of the event. This property is optional. If you do not specify EndDate property, the value of EndDate will automatically set to be the same with the StartDate property.
• EventType
  There are three event type that you can choose for the event: Event, Holiday or Blackout.
• Subject
  The subject of the event.
• Description
  The description of the event.

Alternatively, you can simply bind the EventSource property with collection of data and use the member path properties as below to map your object model to UXCalendarEventItem properties.

• StartDateMemberPath
  Used to bind the StartDate property.
• EndDateMemberPath
  Used to bind the EndDate property.
• EventTypeMemberPath
  Used to bind the EventType property.
• SubjectMemberPath
  Used to bind the Subject property.
• DescriptionMemberPath
  Used to bind the Description property.

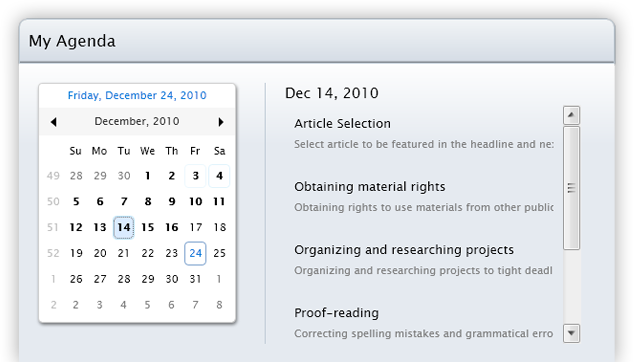

When UXCalendar has events from either the Events or EventSource property, it provides events from the current selected date or range of date through the SelectedEvents property. With these properties, you can create scheduling and calendaring application using MVVM design pattern, enabling you to bind the data and display the current selected events based on the selected dates. To learn more about data binding, see Data Binding Overview.

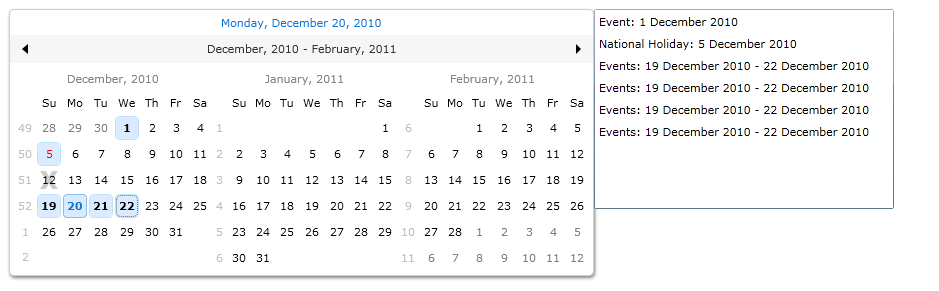

The following example shows how to perform data binding to UXCalendar using the member path properties and display selected events in a ListBox.

namespace UXCalendarSample.Model
{
    public class Event : ModelBase
    {
        public string StartDate { get; set; }
        public string EndDate { get; set; }
        public string EventType { get; set; }
        public string Description { get; set; }

        public Event(XElement x)
        {
            this.StartDate = x.Element("StartDate").Value.Trim();
            this.EndDate = x.Element("EndDate").Value.Trim();
            this.EventType = x.Element("EventType").Value.Trim();
            this.Subject = x.Element("Subject").Value.Trim();
            this.Description = x.Element("Description").Value.Trim();
        }

        public Event()
        {
        }
    }
}

namespace UXCalendarSample.ViewModel
{
    public class EventViewModel : ViewModelBase
    {
        public EventViewModel()
        {
            this.Events = new ObservableCollection<Event>();
            this.SelectedEvents = new ObservableCollection<object>();
            this.LoadEvents();
        }

        public ObservableCollection<Event> Events { get; set; }
        public ObservableCollection<object> SelectedEvents { get; set; }

        private void LoadEvents()
        {
            // loads contact data from xml file
            StreamResourceInfo resource = System.Windows.Application.GetResourceStream(
                    new Uri("SilverlightApplication4;component/Data/EventDataSource.xml", UriKind.Relative));

            XDocument doc = XDocument.Load(resource.Stream);

            var events = from x in doc.Descendants("Event")
                            select new Event(x);

            foreach (Event evt in events)
            {
                this.Events.Add(evt);
            }

            resource.Stream.Close();
        }
    }
}

<Intersoft:UXPage
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:ViewModels="clr-namespace:UXCalendarSample.ViewModel"
        mc:Ignorable="d"
        xmlns:Intersoft="http://intersoft.clientui.com/schemas"
        x:Class="SilverlightApplication4.Views.UXPage1"
        Title="UXPage1 Page"
        d:DesignWidth="640" d:DesignHeight="480">

    <Intersoft:UXPage.DataContext>
        <ViewModels:EventViewModel />
    </Intersoft:UXPage.DataContext>

    <Grid x:Name="LayoutRoot">
        <StackPanel Orientation="Horizontal" VerticalAlignment="Center" HorizontalAlignment="Center">
            <Intersoft:UXCalendar DisplayDate="12/12/2010" SelectionMode="MultipleRange"
                CalendarViewCount="3" x:Name="UXCalendar1" EventsSource="{Binding Events}"
                SelectedEvents="{Binding SelectedEvents}" StartDateMemberPath="StartDate" EndDateMemberPath="EndDate"
                EventTypeMemberPath="EventType" SubjectMemberPath="Subject" DescriptionMemberPath="Description">
            </Intersoft:UXCalendar>
            <ListBox Height="200" HorizontalAlignment="Left" Name="listBox1" VerticalAlignment="Top" Width="300"
                ItemsSource="{Binding SelectedEvents}" DisplayMemberPath="Description" />
        </StackPanel>
    </Grid>
</Intersoft:UXPage>
