The Advanced page gives you complete control over the WebGrid configuration and its tables structure. While most main features can be easily enabled in Quick Start page, some advanced features such as column set display, self referencing, or other table-level settings can only be configured in Advanced page.

Combining the state-of-the-art Component Designer with streamlined user interface concept in WebGrid.NET Enterprise 5.0, the Advanced page also displays rich designer for several main objects such as WebGridTable and WebGridColumn. This results in sophisticated designer experience and dramatically increasing developer's productivity.

With rich designer, you can now easily modify advanced configuration. For instance, you can launch ColumnSet Wizard by clicking on Design ColumnSet button in this screen, instead of having to set related settings in several locations.

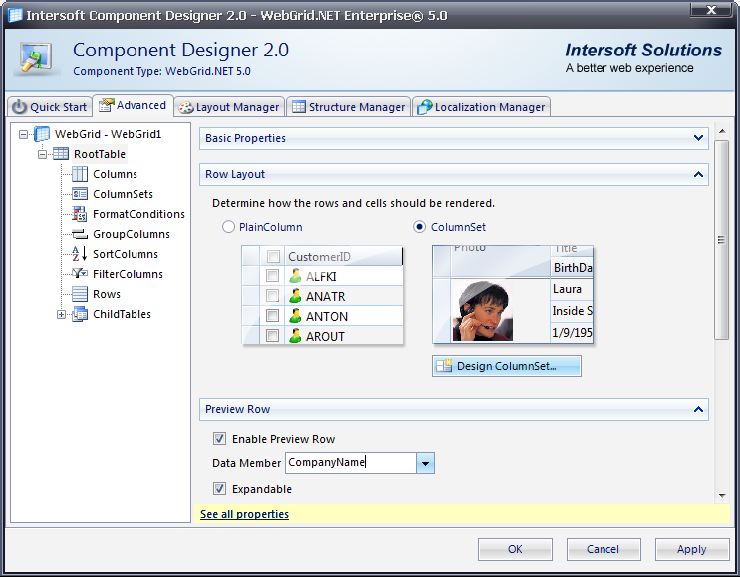

The following image shows the screenshot of Advanced page, while focused at a WebGridTable.

Thanks to the rock-solid Component Designer architecture that made rich designer experience possible, you can now instantly select an editing control for the selected column by simply clicking on the visual clue. No more tedious steps and lengthy procedure to use a custom editor such as Calculator or Html Editor.

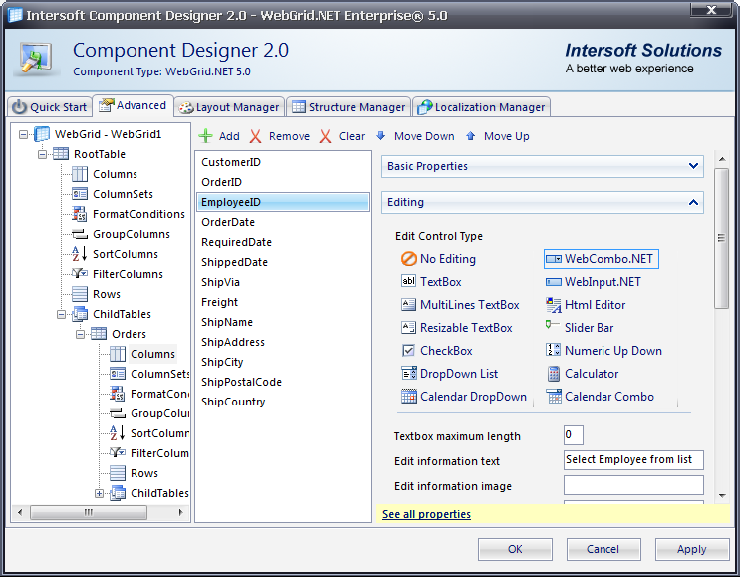

The following image shows the screenshot of Advanced page, while focused at a WebGridColumn.

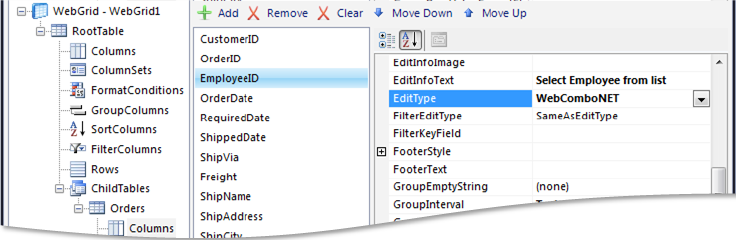

The following image shows the screenshot of Advanced page, when See all properties link is clicked. For advanced developer who preferred to browse all properties, here is the mode for you.

See Also
