Since WebGrid.NET supports hierarchical mode, there are many scenarios related to the child table. For instance, how to get a child row's key value, expand the child table and many more. As a sample, we use key value to be obtained in ChildTable.

There are 2 ways to obtain key value at client side on the parent row, from server side and client side.

Client-side

To obtain a key value on child table, we need a subtableId from the parent row that needs to be expanded first in order to render the sub table of the related key value.

SubtableId returns an array of a SubTable object which belongs to the table's current level that has been expanded before.

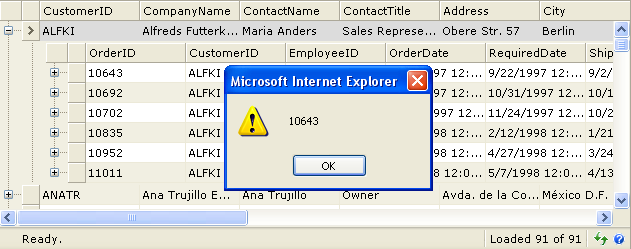

Here is the sample code on how to get the childRow keyValue of expanded parent row :

JavaScript

Copy Code

   function getKeyValue()
   {
       var grid = ISGetObject("WebGrid1");
       var selObj = grid.GetSelectedObject();
       var row = selObj.GetRowObject();
           if (row.Table.ChildTables.length > 0)
           {
               if (!row.ChildExpanded)
               {
                  row.ExpandChildRow(true);
                  alert(grid.Tables["Orders"].SubTableIds[0].GetElement(WG40.BODY,
                      WG40.HTMLTABLE).childNodes[1].childNodes[0].keyValue);
               }
            }
   }

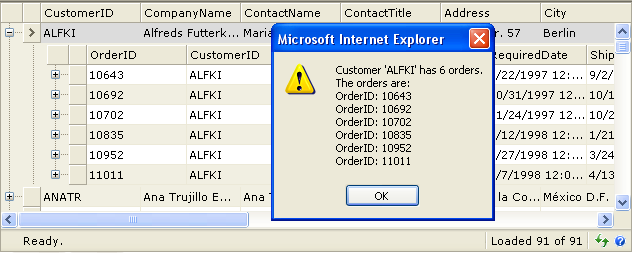

With the latest client side API in WebGrid.NET Enterprise 5.0, there is another way to get the child row by using GetChildRows object based on defined relations.

JavaScript

Copy Code

   function ExpChild()
    {
        var grid = ISGetObject("WebGrid1");
        var selObj = grid.GetSelectedObject();
        var row = selObj.GetRowObject();
        if (row.Table.ChildTables.length > 0)
        {
            if (!row.ChildExpanded)
            {
                row.ExpandChildRow(true);
                var childRows = row.GetChildRows("Orders");
                var s = "";
                for (var i=0; i<childRows.length; i++)
                s += "\nOrderID: " + childRows[i].KeyValue;
                debugger
                alert("Customer '" + row.KeyValue + "' has " + childRows.length +
                    " orders.\nThe orders are:" + s);
            }
        }
    }

These samples above show how to get the key value, obtain and set another property inside the object.

Server-side
In ServerSide, we can simply use "WebGrid1.RetrieveClientLastSelectedObject().KeyValue" to get the child's or parent's key value. However, we need to click to the proper row before.
