In order to complete this walkthrough, you will need the following:

• Access to the Microsoft Access Northwind database.
• Visual Studio 2008/2010 Application.

1. Bind WebGrid to Hierarchical ISDataSource control.
2. Right click WebGrid instance and choose WebGrid.NET Designer.

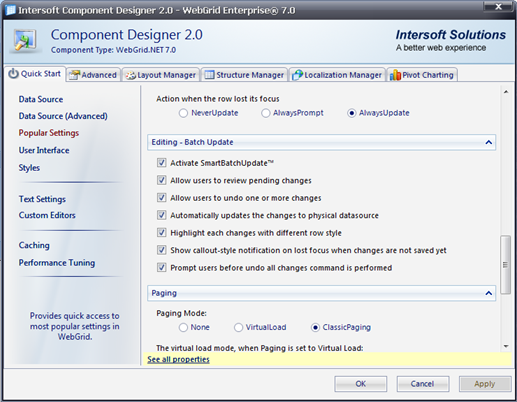

3. Enable the Editing - Batch Update features in WebGrid Component Designer.

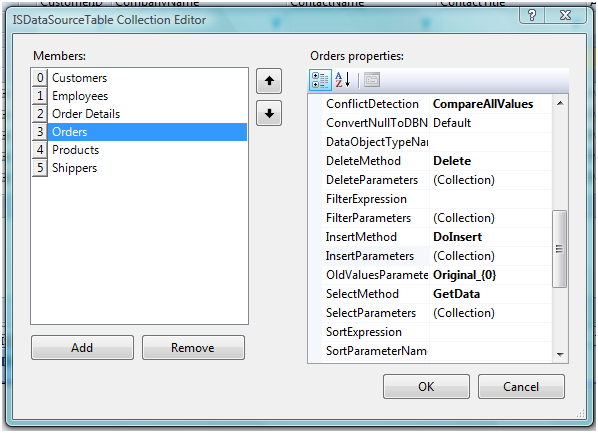

4. Create a DoInsert() method for each table which is used in the WebGrid and SelectIdentityQuery() function to retrieve the newly created ID, for example:


   C#

   Copy Code

   [DataObjectMethodAttribute(DataObjectMethodType.Insert, true)] public int DoInsert(ref Nullable OrderID, string CustomerID, Nullable EmployeeID, Nullable OrderDate,Nullable RequiredDate, Nullable ShippedDate, Nullable ShipVia, Nullable Freight, string ShipName,string ShipAddress, string ShipCity, string ShipRegion, string ShipPostalCode, string ShipCountry) { this.Connection.Open(); // important int affectedRows = this.Insert(CustomerID, EmployeeID, OrderDate, RequiredDate, ShippedDate, ShipVia,Freight, ShipName, ShipAddress, ShipCity, ShipRegion, ShipPostalCode, ShipCountry); int? identity = this.SelectIdentityQuery(); OrderID = identity; // pass the new identity into OrderID param this.Connection.Close(); return affectedRows; } public int SelectIdentityQuery() { OleDbCommand cmd = new OleDbCommand("SELECT @@IDENTITY", this.Connection); int newID = (int)cmd.ExecuteScalar(); return newID; }

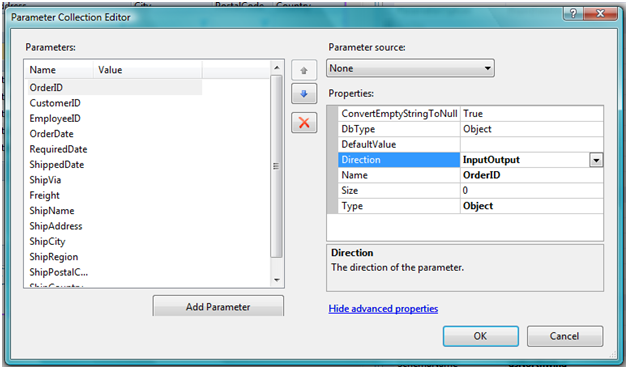

5. Update the parameters in insert function in the ISDataSource for the ID parameter, set the Direction property to InputOutput. This parameter is required to reflect the parameter signature of DoInsert method.






6. Click OK.
7. You are all set. Run the page in browser.
