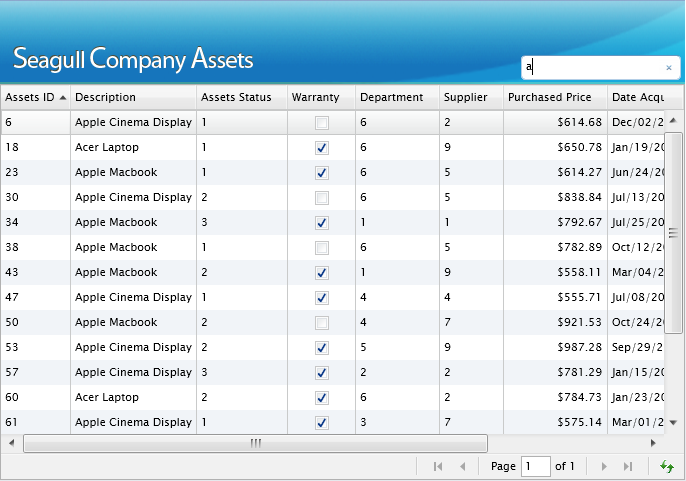

Using UXDataSearchBox

<Intersoft:DockPanel FillChildMode="Custom">
    <Intersoft:DockPanel.DataContext>
        <ViewModels:DataSearchBoxViewModel/>
    </Intersoft:DockPanel.DataContext>
    <Grid Intersoft:DockPanel.Dock="Top">
        <Intersoft:UXDataSearchBox HorizontalAlignment="Right" Margin="0,8,4,4" MinWidth="160"
            x:Name="SampleControl1"
            FilterDescriptors="{Binding QueryDescriptor.FilterDescriptors}" FilterMemberPath="Description" FilterOperator="StartsWith" WatermarkText="Search Assets" WatermarkTextVisibility="Visible" Height="25" VerticalAlignment="Bottom"/>
    </Grid>
    <Grid Intersoft:DockPanel.IsFillElement="True">
        <Intersoft:UXGridView QueryOperation="Server" AutoGenerateColumns="False"
                                ItemsSource="{Binding Items}" IsBusy="{Binding IsBusy, Mode=TwoWay}" IsRefreshed="{Binding IsRefreshed, Mode=TwoWay}"
                                CanUserPage="True" PageSize="20" PageDescriptor="{Binding QueryDescriptor.PageDescriptor}"
                                SortDescriptors="{Binding QueryDescriptor.SortDescriptors}">
            <Intersoft:UXGridView.Columns>
                <Intersoft:UXGridViewTextColumn Header="Assets ID" Binding="{Binding AssetsID}" IsReadOnly="True"/>
                <Intersoft:UXGridViewTextColumn Header="Description" Binding="{Binding Description}"/>
                <Intersoft:UXGridViewTextColumn Header="Assets Status" Binding="{Binding AssetsStatusID}"/>
                <Intersoft:UXGridViewCheckBoxColumn Header="Warranty" Binding="{Binding Warranty}" />
                <Intersoft:UXGridViewTextColumn Header="Department" Binding="{Binding DepartmentID}"/>
                <Intersoft:UXGridViewTextColumn Header="Supplier" Binding="{Binding SupplierID}"/>
                <Intersoft:UXGridViewTextColumn Header="Purchased Price" Binding="{Binding PurchasedPrice, StringFormat=c2}" CellHorizontalAlignment="Right" />
                <Intersoft:UXGridViewTextColumn Header="Date Acquired" Binding="{Binding DateAcquired, StringFormat=MMM/dd/yyyy}"/>
                <Intersoft:UXGridViewTextColumn Header="Date Sold" Binding="{Binding DateSold, StringFormat=MMM/dd/yyyy}" />
                <Intersoft:UXGridViewTextColumn Header="Next Schedule" Binding="{Binding NextSchedule, StringFormat=MMM/dd/yyyy}"/>
            </Intersoft:UXGridView.Columns>
        </Intersoft:UXGridView>
    </Grid>
</Intersoft:DockPanel>

using System;
using System.Collections;
using System.Collections.Generic;
using System.ComponentModel;
using System.ServiceModel.DomainServices.Client;
using Intersoft.Client.Data.ComponentModel;
using Intersoft.Client.Framework;
using Intersoft.ClientUI.Samples.DataControls.ModelServices;

namespace Intersoft.ClientUI.Samples.DataControls.ViewModels
{
    /// <summary>
    /// Represents a generic ViewModel base class that supports server-side data access to WCF RIA Services using QueryDescriptor.
    /// </summary>
    /// <remarks>
    /// The <see cref="GridViewModelBase"/> class exposes four properties that you can bind to the View elements.
    /// For the automatic query to work, bind the QueryDescriptor property to the View element that supports QueryDescriptor
    /// such as UXGridView, UXDataFilter and UXDataPager.
    /// </remarks>
    public abstract class GridViewModelBase<T> : ValidationViewModelBase where T : Entity
    {
        #region Fields

        private bool _isBusy;
        private bool _isPrerequisiteDataLoaded;
        private IEnumerable _items;
        private T _selectedItem;
        private IEnumerable<object> _selectedItems;
        private QueryDescriptor _queryDescriptor;

        #endregion

        #region Constructor

        /// <summary>
        /// Initializes a new instance of the <see cref="GridViewModelBase"/> class.
        /// </summary>
        public GridViewModelBase()
        {
            this._isPrerequisiteDataLoaded = true;
            this.QueryDescriptor = new QueryDescriptor();
            this.Presenter = new MessagePresenter();
            this.IsBusy = true;
            this.QueryLatency = 0.6;
        }

        #endregion

        #region Properties

        private double QueryLatency { get; set; }

        /// <summary>
        /// Gets a value that indicates whether the application is currently in design-time mode.
        /// </summary>
        protected bool IsInDesignMode
        {
            get
            {
                return Intersoft.Client.Framework.ISControl.IsInDesignModeStatic;
            }
        }

        /// <summary>
        /// Gets or sets a value that indicates whether the prerequisite data is loaded.
        /// </summary>
        protected virtual bool IsPrerequisiteDataLoaded
        {
            get { return _isPrerequisiteDataLoaded; }
            set
            {
                if (_isPrerequisiteDataLoaded != value)
                {
                    _isPrerequisiteDataLoaded = value;
                    OnPropertyChanged("IsPrerequisiteDataLoaded");

                    if (value)
                        this.QueryDescriptor.RaiseQueryChanged();
                }
            }
        }

        /// <summary>
        /// Gets the <see cref="MessagePresenter"/> instance.
        /// </summary>
        protected virtual MessagePresenter Presenter { get; private set; }

        /// <summary>
        /// Gets the data repository instance that implements <see cref="IDataRepository"/>.
        /// </summary>
        protected virtual IDataRepository DataSource { get; private set; }

        /// <summary>
        /// Gets or sets a value indicating the currently selected item.
        /// </summary>
        public T SelectedItem
        {
            get { return _selectedItem; }
            set
            {
                if (_selectedItem != value)
                {
                    if (_selectedItem != null)
                        _selectedItem.PropertyChanged -= new PropertyChangedEventHandler(OnSelectedItemPropertyChanged);

                    T _oldItem = _selectedItem;
                    _selectedItem = value;
                    OnSelectedItemChanged(_oldItem, value);

                    if (_selectedItem != null)
                        _selectedItem.PropertyChanged += new PropertyChangedEventHandler(OnSelectedItemPropertyChanged);

                    OnPropertyChanged("SelectedItem");
                }
            }
        }

        /// <summary>
        /// Gets or sets a collection of multiple selected items.
        /// </summary>
        public IEnumerable<object> SelectedItems
        {
            get { return _selectedItems; }
            set
            {
                if (_selectedItems != value)
                {
                    _selectedItems = value;
                    OnPropertyChanged("SelectedItems");
                }
            }
        }

        /// <summary>
        /// Gets or sets a value representing the collection of data.
        /// </summary>
        public IEnumerable Items
        {
            get { return _items; }
            set
            {
                if (_items != value)
                {
                    _items = value;
                    OnPropertyChanged("Items");
                }
            }
        }

        /// <summary>
        /// Gets or sets a value that indicates whether the data repository is busy processing a query based on the given <see cref="QueryDescriptor"/>.
        /// </summary>
        public bool IsBusy
        {
            get { return _isBusy; }
            set
            {
                if (_isBusy != value)
                {
                    _isBusy = value;
                    OnPropertyChanged("IsBusy");
                }
            }
        }

        /// <summary>
        /// Gets or sets a <see cref="QueryDescriptor"/> instance which provides the required information for data query purpose.
        /// </summary>
        public QueryDescriptor QueryDescriptor
        {
            get
            {
                return _queryDescriptor;
            }
            set
            {
                if (_queryDescriptor != value)
                {
                    if (_queryDescriptor != null)
                        _queryDescriptor.QueryChanged -= new EventHandler(OnQueryChanged);

                    _queryDescriptor = value;
                    _queryDescriptor.QueryChanged += new EventHandler(OnQueryChanged);

                    OnPropertyChanged("QueryDescriptor");
                }
            }
        }

        #endregion

        #region Virtual Methods

        /// <summary>
        /// Called when the data repository needs to fetch data from the repository, either during initial load, or due to query change.
        /// </summary>
        /// <param name="dataSource">An instance of the data repository.</param>
        protected virtual void LoadData(IDataRepository dataSource)
        {
            if (!this.IsInDesignMode && dataSource == null)
                throw new ArgumentNullException("dataSource should not be null.");

            this.DataSource = dataSource;
            this.LoadData();
        }

        /// <summary>
        /// Called when the data repository needs to fetch data from the repository, either during initial load, or due to query change.
        /// </summary>
        protected virtual void LoadData()
        {
            this.IsBusy = true;

            this.DataSource.GetData
            (
                this.QueryDescriptor, // QueryDescriptor need to have sort descriptor specified if you enable data paging.
                                      // You can add descriptor by grouping the data using UXGridView.GroupDescriptor, or set the sort information in UXGridView.SortDescriptor.

                (items) =>
                {
                    this.IsBusy = false;
                    this.Items = new PagedCollectionView(items);
                },
                (totalItemCount) =>
                {
                    if (totalItemCount != -1)
                        this.QueryDescriptor.PageDescriptor.TotalItemCount = totalItemCount;
                },
                (error) =>
                {
                    this.IsBusy = false;

                    this.Presenter.ShowErrorMessage(
                        "An exception has occurred during data loading.\n" +
                        "Message: " + error.Message + "\n" +
                        "Stack Trace: " + error.StackTrace);
                }
            );
        }

        /// <summary>
        /// Called when one of the properties in the <see cref="SelectedItem"/> object is changed.
        /// </summary>
        /// <param name="sender">The sender of the event.</param>
        /// <param name="e">The data related to the event.</param>
        protected virtual void OnSelectedItemPropertyChanged(object sender, PropertyChangedEventArgs e)
        {
        }

        /// <summary>
        /// Called when one of the properties in the <see cref="QueryDescriptor"/> object is changed.
        /// </summary>
        /// <param name="sender">The sender of the event.</param>
        /// <param name="e">The data related to the event.</param>
        protected virtual void OnQueryChanged(object sender, EventArgs e)
        {
            // Perform data retrieval in 0.6ms latency to ensure smooth transition. By default, transition took ~0.3ms.
            // If transition is not applied in the View, it's not necessary to use ExecuteTimeOut method.

            Utility.ExecuteTimeOut(this.QueryLatency,
                () =>
                {
                    if (this.IsPrerequisiteDataLoaded)
                    {
                        this.LoadData();
                        this.QueryLatency = 0;
                    }
                });
        }

        /// <summary>
        /// Called when the <see cref="SelectedItem"/> property changes.
        /// </summary>
        /// <param name="oldItem">The old selected item.</param>
        /// <param name="newItem">The new selected item.</param>
        protected virtual void OnSelectedItemChanged(T oldItem, T newItem)
        {
        }

        #endregion
    }
}

using System.Collections;
using Intersoft.Client.Data.ComponentModel;
using Intersoft.ClientUI.Samples.DataControls.ModelServices;
using Intersoft.ClientUI.Samples.Web;
using System.ComponentModel;

namespace Intersoft.ClientUI.Samples.DataControls.ViewModels
{
    public class DataSearchBoxViewModel : GridViewModelBase<CompanyAsset>
    {
        public DataSearchBoxViewModel()
            : base()
        {
            this.IsPrerequisiteDataLoaded = false;

            if (!this.IsInDesignMode)
            {
                this.AssetsStatusSource = AssetsStatusRepository.Instance;
                this.CompanyDepartmentsSource = CompanyDepartmentsRepository.Instance;
                this.SuppliersSource = SuppliersRepository.Instance;

                this.LoadAssetsStatus();
                this.LoadCompanyDepartments();
                this.LoadSuppliers();
            }

            this.QueryDescriptor.SortDescriptors.Add(new SortDescriptor() { PropertyName = "AssetsID", Direction = ListSortDirection.Ascending });
        }

        private IEnumerable _assetsStatus;
        private IEnumerable _companyDepartments;
        private IEnumerable _suppliers;
        private bool _isAssetsStatusLoaded;
        private bool _isCompanyDepartmentsLoaded;
        private bool _isSuppliersLoaded;

        public IEnumerable AssetsStatus
        {
            get { return this._assetsStatus; }
            set
            {
                if (_assetsStatus != value)
                {
                    _assetsStatus = value;
                    OnPropertyChanged("AssetsStatus");
                }
            }
        }

        protected IDataRepository AssetsStatusSource { get; set; }

        public IEnumerable CompanyDepartments
        {
            get { return this._companyDepartments; }
            set
            {
                if (_companyDepartments != value)
                {
                    _companyDepartments = value;
                    OnPropertyChanged("CompanyDepartments");
                }
            }
        }

        protected IDataRepository CompanyDepartmentsSource { get; set; }

        protected override IDataRepository DataSource
        {
            get
            {
                return CompanyAssetsRepository.Instance;
            }
        }

        public bool IsAssetsStatusLoaded
        {
            get { return _isAssetsStatusLoaded; }
            set
            {
                if (_isAssetsStatusLoaded != value)
                {
                    _isAssetsStatusLoaded = value;
                    OnPropertyChanged("IsAssetsStatusLoaded");

                    if (value)
                        this.NotifyPrerequisteDataLoaded();
                }
            }
        }

        public bool IsCompanyDepartmentsLoaded
        {
            get { return _isCompanyDepartmentsLoaded; }
            set
            {
                if (_isCompanyDepartmentsLoaded != value)
                {
                    _isCompanyDepartmentsLoaded = value;
                    OnPropertyChanged("IsCompanyDepartmentsLoaded");

                    if (value)
                        this.NotifyPrerequisteDataLoaded();
                }
            }
        }

        public bool IsSuppliersLoaded
        {
            get { return _isSuppliersLoaded; }
            set
            {
                if (_isSuppliersLoaded != value)
                {
                    _isSuppliersLoaded = value;
                    OnPropertyChanged("IsSuppliersLoaded");

                    if (value)
                        this.NotifyPrerequisteDataLoaded();
                }
            }
        }

        public IEnumerable Suppliers
        {
            get { return this._suppliers; }
            set
            {
                if (_suppliers != value)
                {
                    _suppliers = value;
                    OnPropertyChanged("Suppliers");
                }
            }
        }

        protected IDataRepository SuppliersSource { get; set; }

        private void LoadAssetsStatus()
        {
            this.AssetsStatusSource.GetData
            (
                (items) =>
                {
                    this.AssetsStatus = items;
                    this.IsAssetsStatusLoaded = true;
                },
                (error) =>
                {
                    this.Presenter.ShowErrorMessage(
                        "An exception has occurred during data loading\n." +
                        "Message: " + error.Message +
                        "Stack Trace: " + error.StackTrace);
                }
            );
        }

        private void LoadCompanyDepartments()
        {
            this.CompanyDepartmentsSource.GetData
            (
                (items) =>
                {
                    this.CompanyDepartments = items;
                    this.IsCompanyDepartmentsLoaded = true;
                },
                (error) =>
                {
                    this.Presenter.ShowErrorMessage(
                        "An exception has occurred during data loading\n." +
                        "Message: " + error.Message +
                        "Stack Trace: " + error.StackTrace);
                }
            );
        }

        private void LoadSuppliers()
        {
            this.SuppliersSource.GetData
            (
                (items) =>
                {
                    this.Suppliers = items;
                    this.IsSuppliersLoaded = true;
                },
                (error) =>
                {
                    this.Presenter.ShowErrorMessage(
                        "An exception has occurred during data loading\n." +
                        "Message: " + error.Message +
                        "Stack Trace: " + error.StackTrace);
                }
            );
        }

        private void NotifyPrerequisteDataLoaded()
        {
            if (this.IsAssetsStatusLoaded && this.IsCompanyDepartmentsLoaded && this.IsSuppliersLoaded)
                this.IsPrerequisiteDataLoaded = true;
        }
    }
}
