GroupBy Property (UXScheduleView)



Intersoft.Client.UI.ScheduleView Namespace > UXScheduleView Class : GroupBy Property
Gets or sets a value that determines the group by condition.
Syntax
<CategoryAttribute("Common Properties")>
Public Property GroupBy As GroupByMode
Dim instance As UXScheduleView
Dim value As GroupByMode

instance.GroupBy = value

value = instance.GroupBy
[CategoryAttribute("Common Properties")]
public GroupByMode GroupBy {get; set;}
[CategoryAttribute("Common Properties")]
public:
property GroupByMode GroupBy {
   GroupByMode get();
   void set (    GroupByMode value);
}
Remarks

To enable data grouping in UXScheduleView, you can set either the GroupBy property or GroupCollection property. The GroupBy property is used to group the data based on provided categories or resources, while the GroupCollection property offers a more flexible way to group data including nested grouping capability.

When the data is grouped, you can not move an item from one group to another group using the drag-drop feature in UXScheduleView.
Group By
Copy Code
<Intersoft:UXScheduleView DisplayDate="1/2/2012"
            EventsSource="{Binding Events}" CategoriesSource="{Binding Categories}" ResourcesSource="{Binding Resources}"
            GroupBy="Resources">
    <Intersoft:UXScheduleDayView/>
    <Intersoft:UXScheduleWorkWeekView IsActive="True"/>
    <Intersoft:UXScheduleWeekView/>
    <Intersoft:UXScheduleMonthView/>
</Intersoft:UXScheduleView>

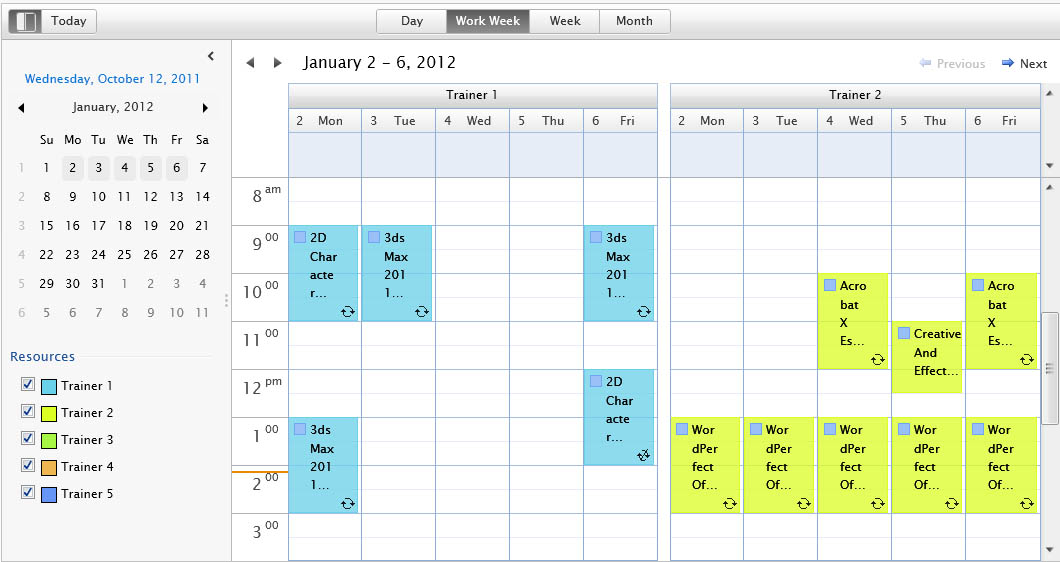

The following figure shows the schedule data grouped by resources.

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

See Also

Reference

UXScheduleView Class
UXScheduleView Members
