ContentTransformer Class
Members



Intersoft.Client.UI.Controls Namespace : ContentTransformer Class
Represents a control that applies transformations to its Content.
Object Model
ContentTransformer ClassISFramework Class
Syntax
<TemplatePartAttribute(Name="TransformRoot", Type=System.Windows.Controls.Grid)>
<TemplatePartAttribute(Name="Presenter", Type=System.Windows.Controls.ContentPresenter)>
<DescriptionAttribute("Represents a control that applies transformations to its Content.")>
Public NotInheritable Class ContentTransformer
   Inherits Intersoft.Client.Framework.ISContentControl
   Implements Intersoft.Client.Framework.IControl, Intersoft.Client.Framework.IFramework, Intersoft.Client.Framework.ILicensing
Dim instance As ContentTransformer
[TemplatePartAttribute(Name="TransformRoot", Type=System.Windows.Controls.Grid)]
[TemplatePartAttribute(Name="Presenter", Type=System.Windows.Controls.ContentPresenter)]
[DescriptionAttribute("Represents a control that applies transformations to its Content.")]
public sealed class ContentTransformer : Intersoft.Client.Framework.ISContentControl, Intersoft.Client.Framework.IControl, Intersoft.Client.Framework.IFramework, Intersoft.Client.Framework.ILicensing
[TemplatePartAttribute(Name="TransformRoot", Type=System.Windows.Controls.Grid)]
[TemplatePartAttribute(Name="Presenter", Type=System.Windows.Controls.ContentPresenter)]
[DescriptionAttribute("Represents a control that applies transformations to its Content.")]
public ref class ContentTransformer sealed : public Intersoft.Client.Framework.ISContentControl, Intersoft.Client.Framework.IControl, Intersoft.Client.Framework.IFramework, Intersoft.Client.Framework.ILicensing
Remarks

ContentTransfomer is inherited from ISContentControl, which means it can contain a single object of any type (such as a string, an image, or a panel). For more information about this content model, see Content Model Overview.

At the core of ContentTransfomer is the Transform property which applies transformation effects such as ScaleTransform and RotateTransform to its content. The transformation of ContentTransfomer works differently compared to the standard RenderTransform provided in the built-in Silverlight elements.

The ContentTransfomer transforms its content with respect to the dimension and boundary of the main container, while Silverlight's RenderTransform applies the transformation using relative points.

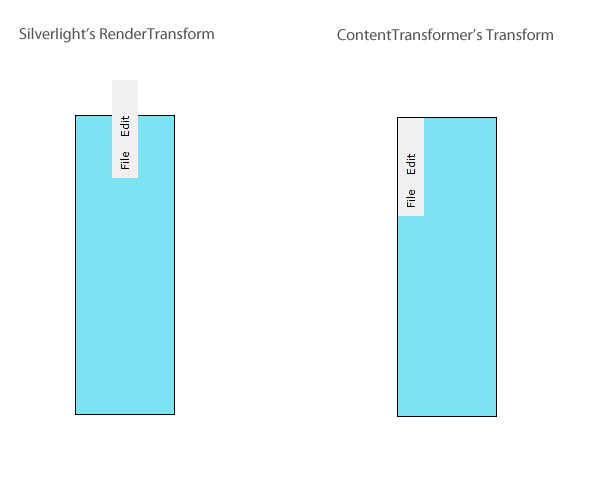

The following illustration compares the transformation results of ContentTransfomer and RenderTransform.



As shown in the above illustration, the ContentTransfomer applies the RotationTransform to the menu bar while properly aligning the menu bar to the boundary of the main container. This behavior is useful in a number of scenarios where you want to apply the transformation effects on a content that can be easily arranged and layouted.

The following example shows how to use ContentTransfomer to apply RotationTransform to its content.

XAML
Copy Code
<Intersoft:ContentTransformer VerticalAlignment="Top">
    <Intersoft:ContentTransformer.Transform>
        <CompositeTransform Rotation="-90"/>
    </Intersoft:ContentTransformer.Transform>

    <Intersoft:UXMenuBar VerticalAlignment="Top">
        <Intersoft:UXMenuItem Header="File">
            <Intersoft:UXMenuItem Header="New"/>
        </Intersoft:UXMenuItem>
        <Intersoft:UXMenuItem Header="Edit"/>
            <Intersoft:UXMenuItem Header="Cut"/>
        </Intersoft:UXMenuItem>
    </Intersoft:UXMenuBar>

</Intersoft:ContentTransformer>
Inheritance Hierarchy

System.Object
   System.Windows.DependencyObject
      System.Windows.UIElement
         System.Windows.FrameworkElement
            System.Windows.Controls.Control
               System.Windows.Controls.ContentControl
                  Intersoft.Client.Framework.ISContentControl
                     Intersoft.Client.UI.Controls.ContentTransformer

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

See Also

Reference

ContentTransformer Members
Intersoft.Client.UI.Controls Namespace
