Intersoft ClientUI Documentation
ContentPerspective Class
Members



Intersoft.Client.UI.Controls Namespace : ContentPerspective Class
Provides a lightweight control which able to produce a reflection of the given content and give a sense of perspective to both content and its reflection when plane projection is applied (e.g rotation).
Object Model
ContentPerspective ClassISFramework Class
Syntax
<TemplatePartAttribute(Name="RootElement", Type=System.Windows.Controls.Grid)>
<DescriptionAttribute("Provides a lightweight control which able to produce a reflection of the given content and give a sense of perspective to both content and its reflection when plane projection is applied (e.g rotation).")>
Public Class ContentPerspective
   Inherits Intersoft.Client.Framework.ISContentControl
   Implements Intersoft.Client.Framework.IControl, Intersoft.Client.Framework.IFramework, Intersoft.Client.Framework.ILicensing
Dim instance As ContentPerspective
[TemplatePartAttribute(Name="RootElement", Type=System.Windows.Controls.Grid)]
[DescriptionAttribute("Provides a lightweight control which able to produce a reflection of the given content and give a sense of perspective to both content and its reflection when plane projection is applied (e.g rotation).")]
public class ContentPerspective : Intersoft.Client.Framework.ISContentControl, Intersoft.Client.Framework.IControl, Intersoft.Client.Framework.IFramework, Intersoft.Client.Framework.ILicensing
[TemplatePartAttribute(Name="RootElement", Type=System.Windows.Controls.Grid)]
[DescriptionAttribute("Provides a lightweight control which able to produce a reflection of the given content and give a sense of perspective to both content and its reflection when plane projection is applied (e.g rotation).")]
public ref class ContentPerspective : public Intersoft.Client.Framework.ISContentControl, Intersoft.Client.Framework.IControl, Intersoft.Client.Framework.IFramework, Intersoft.Client.Framework.ILicensing
Remarks

ContentPerspective is inherited from ISContentControl, which means that it can contain a single object of any type (such as a string, an image, or a panel). For more information about this content model, see Content Model Overview.

Example

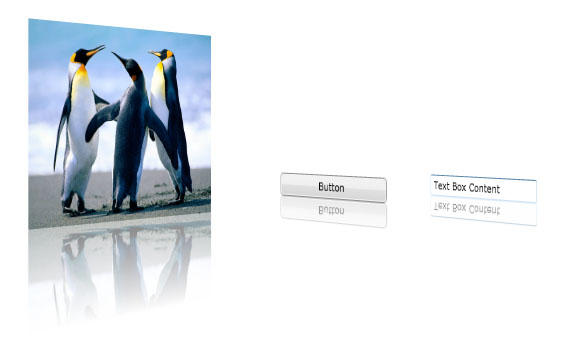

The following example shows multiple content types used as content of ContentPerspective.

XAML
Copy Code
<StackPanel HorizontalAlignment="Center" VerticalAlignment="Center"
    Orientation="Horizontal">
    <Intersoft:ContentPerspective Height="192" Width="256" RotationY="-45">
        <Image Source="/Penguins.jpg"/>
    </Intersoft:ContentPerspective>
    <Intersoft:ContentPerspective Height="150" Width="150" RotationY="45">
        <Intersoft:UXButton Content="Button" VerticalAlignment="Bottom"/>
    </Intersoft:ContentPerspective>
    <Intersoft:ContentPerspective Height="150" Width="150" RotationY="45">
        <Intersoft:UXTextBox Text="Text Box Content" VerticalAlignment="Bottom"/>
    </Intersoft:ContentPerspective>
</StackPanel>
Inheritance Hierarchy

System.Object
   System.Windows.DependencyObject
      System.Windows.UIElement
         System.Windows.FrameworkElement
            System.Windows.Controls.Control
               System.Windows.Controls.ContentControl
                  Intersoft.Client.Framework.ISContentControl
                     Intersoft.Client.UI.Controls.ContentPerspective

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

See Also

Reference

ContentPerspective Members
Intersoft.Client.UI.Controls Namespace

Concepts

ContentPerspective
