StackGridTemplate Property (UXStackButton)

Gets or sets the content template to be displayed in stack grid mode.

Syntax

Visual Basic (Declaration)
Visual Basic (Usage)
C#
C++/CLI

<CategoryAttribute("Stack Grid")>
Public Property StackGridTemplate As DataTemplate

Dim instance As UXStackButton
Dim value As DataTemplate

instance.StackGridTemplate = value

value = instance.StackGridTemplate

[CategoryAttribute("Stack Grid")]
public DataTemplate StackGridTemplate {get; set;}

[CategoryAttribute("Stack Grid")]
public:
property DataTemplate^ StackGridTemplate {
   DataTemplate^ get();
   void set (    DataTemplate^ value);
}

Remarks

The content of UXStackButton is not necessary collection of UXStackItem. Using GridStyle as StackMode of UXStackButton you can use StackGridTemplate instead specifying items for its stack content.

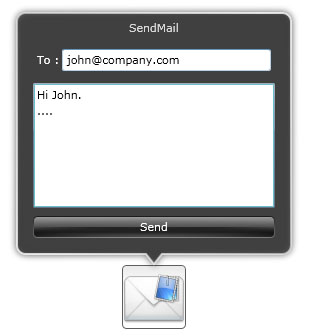

The following example shows how to use custom content for UXStackButton using StackGridTemplate.

XAML	Copy Code
<Intersoft:UXStackButton Icon="Mail.png" Text="SendMail" Height="64" Width="64" StackMode="GridStyle"> <Intersoft:UXStackButton.StackGridTemplate> <DataTemplate> <StackPanel Width="250"> <Intersoft:FieldLabel HeaderForeground="White" Header="To :" Margin="4" HorizontalContentAlignment="Stretch"> <Intersoft:UXTextBox></Intersoft:UXTextBox> </Intersoft:FieldLabel> <RichTextBox Height="125" Margin="4"/> <Intersoft:GlassButton Content="Send" Margin="4"/> </StackPanel> </DataTemplate> </Intersoft:UXStackButton.StackGridTemplate> </Intersoft:UXStackButton>

XAML

Copy Code

<Intersoft:UXStackButton Icon="Mail.png" Text="SendMail" Height="64" Width="64" StackMode="GridStyle">
    <Intersoft:UXStackButton.StackGridTemplate>
        <DataTemplate>
            <StackPanel Width="250">
                <Intersoft:FieldLabel HeaderForeground="White" Header="To :" Margin="4" HorizontalContentAlignment="Stretch">
                    <Intersoft:UXTextBox></Intersoft:UXTextBox>
                </Intersoft:FieldLabel>
                <RichTextBox Height="125" Margin="4"/>
                <Intersoft:GlassButton Content="Send" Margin="4"/>
            </StackPanel>
        </DataTemplate>
    </Intersoft:UXStackButton.StackGridTemplate>
</Intersoft:UXStackButton>

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

UXStackButton Class
UXStackButton Members

Concepts

UXStackButton
