Walkthrough: Utilizing button ColumnType
See Also Send comments on this topic.

Glossary Item Box

Configure one column of WebGrid as a button column to perform some client-side task.

During this walkthrough, you will learn how to do the following:

 Prerequisites

In order to complete this walkthrough, you will need the following:

  • Visual Studio 2005 Application.

 Step-By-Step Instructions

To configure one column as button

  1. Binding WebGrid to AccessDataSource.

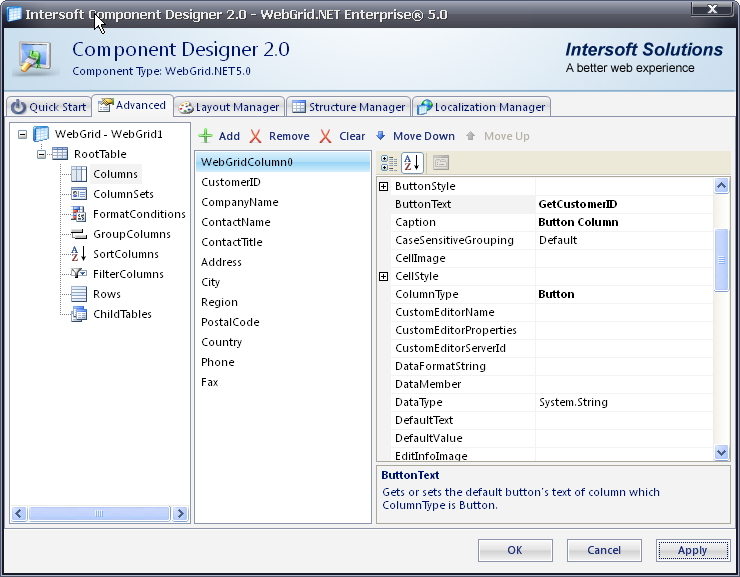

  2. Open WebGrid.NET Designer, select WebGrid > RootTable > Columns from the TreeView and add a column.
  3. Set the ColumnType property of the new column to Button and the EditType property to NoEdit. You might also want to set the ButtonText and Caption properties.

    Property Value
    Name colBtn
    Caption Button Column
    ColumnType Button
    ButtonText GetCustomerID



  4. Apply the following script to the page:

    C# Copy ImageCopy Code
    function DoClick(ID)
    {
        alert("CustomerID = " + ID);
        return true;
    }


  5. Apply this code into the InitializeRow event. Please see the comments for explanation.

    C# Copy ImageCopy Code
    private void WebGrid1_InitializeRow(object sender,
    ISNet.WebUI.WebGrid.RowEventArgs e)
    {
        if(e.Row.Type == RowType.Record)
        {
            // Get the row cells.
            WebGridCellCollection cells = e.Row.Cells;
            string customerID = cells.GetNamedItem("CustomerID").Text;

            // Construct the custom object attribute to be attached to the button.
            string customObjectAttributes =
                " onclick = \"DoClick(CustomerID)\"" +
                " CustomerID = \"" + customerID + "\"";

            string country = cells.GetNamedItem("Country").Text;

            // Set the ColumnType of the cell as text if the
            // Country cell's content is 'UK'.
            if(country == "UK")
            {
                cells.GetNamedItem("colBtn").Column.ColumnType = ColumnType.Text;
                cells.GetNamedItem("colBtn").Text = "Not Editable";
            }
            else
            {
                cells.GetNamedItem("colBtn").Column.ColumnType = ColumnType.Button;
                cells.GetNamedItem("colBtn").Column.ButtonText = "Get CustomerID";
            }

            // Attach the custom object attribute to the button cell of the row.
            cells.GetNamedItem("colBtn").CustomObjectAttributes =
                customObjectAttributes;
        }
    }


  6. Run the sample.
