BackgroundMode Property

Visual Basic (Declaration)
Visual Basic (Usage)
C#
C++/CLI

<CategoryAttribute("Background")>
Public Property BackgroundMode As BackgroundMode

Dim instance As UXDock
Dim value As BackgroundMode

instance.BackgroundMode = value

value = instance.BackgroundMode

[CategoryAttribute("Background")]
public BackgroundMode BackgroundMode {get; set;}

[CategoryAttribute("Background")]
public:
property BackgroundMode BackgroundMode {
   BackgroundMode get();
   void set (    BackgroundMode value);
}

UXDock has three of background mode you can choose from. The following are the list of background modes available in UXDock.

Simple
Uses a simple border element named BackgroundElement. You can control the appearances from Background, BorderBrush, BorderThickness properties similar with any other Silverlight components, or you can just use the edit template and create a completely custom background inside the BackgroundElement.

XAML	Copy Code
<Intersoft:UXDock Background="Orange" BorderThickness="8" BorderBrush="Gold" CornerRadius="12"> <Intersoft:UXDockButton Text="Home" Icon="Home.png"/> <Intersoft:UXDockButton Text="Clock" Icon="Clock.png"/> <Intersoft:UXDockButton Text="Picture" Icon="Picture.png"/> <Intersoft:UXDockButton Text="Mail" Icon="Mail.png"/> <Intersoft:UXDockSeparator/> <Intersoft:UXDockButton Text="Document" Icon="Document.png" StackMode="GridStyle"> <Intersoft:UXStackItem Text="Video" Icon="Video.png"/> <Intersoft:UXStackItem Text="Photo" Icon="Photo.png"/> <Intersoft:UXStackItem Text="Music" Icon="Mp3.png"/> <Intersoft:UXStackItem Text="Text" Icon="Text.png"/> </Intersoft:UXDockButton> </Intersoft:UXDock>

XAML

Copy Code

<Intersoft:UXDock Background="Orange" BorderThickness="8" BorderBrush="Gold" CornerRadius="12">
    <Intersoft:UXDockButton Text="Home" Icon="Home.png"/>
    <Intersoft:UXDockButton Text="Clock" Icon="Clock.png"/>
    <Intersoft:UXDockButton Text="Picture" Icon="Picture.png"/>
    <Intersoft:UXDockButton Text="Mail" Icon="Mail.png"/>
    <Intersoft:UXDockSeparator/>
    <Intersoft:UXDockButton Text="Document" Icon="Document.png" StackMode="GridStyle">
        <Intersoft:UXStackItem Text="Video" Icon="Video.png"/>
        <Intersoft:UXStackItem Text="Photo" Icon="Photo.png"/>
        <Intersoft:UXStackItem Text="Music" Icon="Mp3.png"/>
        <Intersoft:UXStackItem Text="Text" Icon="Text.png"/>
    </Intersoft:UXDockButton>
</Intersoft:UXDock>

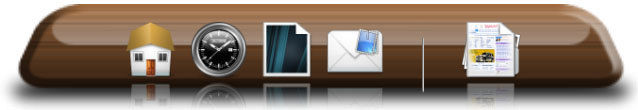

ComplexImages
Uses three containers named BackgroundImageLeftElement, BackgroundImageRightElement and BackgroundImageCenterElement where you can specify the contents from BackgroundImageLeft, BackgroundImageRight and BackgroundImageCenter properties.

XAML	Copy Code
<Intersoft:UXDock BackgroundImageCenter="dockwood_center.png" BackgroundImageLeft="dockwood_left.png" BackgroundImageRight="dockwood_right.png" BackgroundMode="ComplexImages"> <Intersoft:UXDockButton Text="Home" Icon="Home.png"/> <Intersoft:UXDockButton Text="Clock" Icon="Clock.png"/> <Intersoft:UXDockButton Text="Picture" Icon="Picture.png"/> <Intersoft:UXDockButton Text="Mail" Icon="Mail.png"/> <Intersoft:UXDockSeparator/> <Intersoft:UXDockButton Text="Document" Icon="Document.png" StackMode="GridStyle"> <Intersoft:UXStackItem Text="Video" Icon="Video.png"/> <Intersoft:UXStackItem Text="Photo" Icon="Photo.png"/> <Intersoft:UXStackItem Text="Music" Icon="Mp3.png"/> <Intersoft:UXStackItem Text="Text" Icon="Text.png"/> </Intersoft:UXDockButton> </Intersoft:UXDock>

XAML

Copy Code

<Intersoft:UXDock BackgroundImageCenter="dockwood_center.png" BackgroundImageLeft="dockwood_left.png" BackgroundImageRight="dockwood_right.png" BackgroundMode="ComplexImages">
    <Intersoft:UXDockButton Text="Home" Icon="Home.png"/>
    <Intersoft:UXDockButton Text="Clock" Icon="Clock.png"/>
    <Intersoft:UXDockButton Text="Picture" Icon="Picture.png"/>
    <Intersoft:UXDockButton Text="Mail" Icon="Mail.png"/>
    <Intersoft:UXDockSeparator/>
    <Intersoft:UXDockButton Text="Document" Icon="Document.png" StackMode="GridStyle">
        <Intersoft:UXStackItem Text="Video" Icon="Video.png"/>
        <Intersoft:UXStackItem Text="Photo" Icon="Photo.png"/>
        <Intersoft:UXStackItem Text="Music" Icon="Mp3.png"/>
        <Intersoft:UXStackItem Text="Text" Icon="Text.png"/>
    </Intersoft:UXDockButton>
</Intersoft:UXDock>

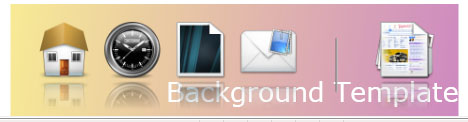

BackgroundTemplate
Uses custom data templates.

XAML	Copy Code
<UserControl.Resources> <DataTemplate x:Key="BackgroundTemplate"> <Grid> <Grid.Background> <LinearGradientBrush EndPoint="2.446,1.507" StartPoint="-0.17,0.131"> <GradientStop Color="#FFFFFB8F" Offset="0"/> <GradientStop Color="#FF9400FF" Offset="1"/> </LinearGradientBrush> </Grid.Background> <TextBlock Margin="0,0,0,4" TextWrapping="Wrap" Text="Background Template" d:LayoutOverrides="Width, Height" HorizontalAlignment="Right" VerticalAlignment="Bottom" Foreground="White" FontSize="26.667"/> </Grid> </DataTemplate> </UserControl.Resources> <Grid x:Name="LayoutRoot" Background="White"> <Intersoft:UXDock BackgroundTemplate="{StaticResource BackgroundTemplate}"> <Intersoft:UXDockButton Text="Home" Icon="Home.png"/> <Intersoft:UXDockButton Text="Clock" Icon="Clock.png"/> <Intersoft:UXDockButton Text="Picture" Icon="Picture.png"/> <Intersoft:UXDockButton Text="Mail" Icon="Mail.png"/> <Intersoft:UXDockSeparator/> <Intersoft:UXDockButton Text="Document" Icon="Document.png" StackMode="GridStyle"> <Intersoft:UXStackItem Text="Video" Icon="Video.png"/> <Intersoft:UXStackItem Text="Photo" Icon="Photo.png"/> <Intersoft:UXStackItem Text="Music" Icon="Mp3.png"/> <Intersoft:UXStackItem Text="Text" Icon="Text.png"/> </Intersoft:UXDockButton> </Intersoft:UXDock> </Grid>

XAML

Copy Code

<UserControl.Resources>
                <DataTemplate x:Key="BackgroundTemplate">
                        <Grid>
                                <Grid.Background>
                                        <LinearGradientBrush EndPoint="2.446,1.507" StartPoint="-0.17,0.131">
                                                <GradientStop Color="#FFFFFB8F" Offset="0"/>
                                                <GradientStop Color="#FF9400FF" Offset="1"/>
                                        </LinearGradientBrush>
                                </Grid.Background>
                                <TextBlock Margin="0,0,0,4" TextWrapping="Wrap" Text="Background Template" d:LayoutOverrides="Width, Height" HorizontalAlignment="Right" VerticalAlignment="Bottom" Foreground="White" FontSize="26.667"/>
                        </Grid>
                </DataTemplate>
        </UserControl.Resources>

    <Grid x:Name="LayoutRoot" Background="White">
        <Intersoft:UXDock BackgroundTemplate="{StaticResource BackgroundTemplate}">
            <Intersoft:UXDockButton Text="Home" Icon="Home.png"/>
            <Intersoft:UXDockButton Text="Clock" Icon="Clock.png"/>
            <Intersoft:UXDockButton Text="Picture" Icon="Picture.png"/>
            <Intersoft:UXDockButton Text="Mail" Icon="Mail.png"/>
            <Intersoft:UXDockSeparator/>
            <Intersoft:UXDockButton Text="Document" Icon="Document.png" StackMode="GridStyle">
                <Intersoft:UXStackItem Text="Video" Icon="Video.png"/>
                <Intersoft:UXStackItem Text="Photo" Icon="Photo.png"/>
                <Intersoft:UXStackItem Text="Music" Icon="Mp3.png"/>
                <Intersoft:UXStackItem Text="Text" Icon="Text.png"/>
            </Intersoft:UXDockButton>
        </Intersoft:UXDock>
    </Grid>

By default the background will adjust its width or height based when the zooming effect is applied. To turn off this feature, set the BackgroundBehavior property to Fix.

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
