Description

This example provides information in using UXQueryBuilder to filter server side data.

Prerequisite

For a quick example, we will use Intersoft ClientUI Data Application (DevForce) project. To create a new Intersoft ClientUI Data Application (DevForce) project, see Walkthrough: Create New Intersoft ClientUI MVVM Data Application (DevForce). The Customers page will be modified for the purposes of this example.

Tutorial

1. Create a class named Product.cs under Models folder.

Product.cs
Copy Code
using System.ComponentModel.DataAnnotations;
using Intersoft.Client.Data.ComponentModel;

namespace QueryBuilderServerSide.DomainModel
{
    [FilterMetadata(typeof (ProductFilterMetadata))]
    [DisplayMember("ProductName")]
    public partial class Product
    {
        public class ProductFilterMetadata
        {
            [Display(Name = "Product ID")]
            public int ProductID { get; set; }

            [Display(Name = "Product Name")]
            public string ProductName { get; set; }

            [Display(Name = "Supplier ID")]
            public System.Nullable<int> SupplierID { get; set; }

            [Display(Name = "Category ID")]
            public System.Nullable<int> CategoryID { get; set; }

            [Display(Name = "Quantity Per Unit")]
            public string QuantityPerUnit { get; set; }

            [Display(Name = "Unit Price")]
            public System.Nullable<decimal> UnitPrice { get; set; }

            [Display(Name = "Units In Stock")]
            public System.Nullable<short> UnitsInStock { get; set; }

            [Display(Name = "Units On Order")]
            public System.Nullable<short> UnitsOnOrder { get; set; }

            [Display(Name = "Reorder Level")]
            public System.Nullable<short> ReorderLevel { get; set; }

            [Display(Name = "Discontinued")]
            public bool Discontinued { get; set; }

            [Display(Name = "Photo Path")]
            public string PhotoPath { get; set; }
        }
    }
}

 2. Modify the ProductsViewModel.cs

ProductsViewModel.cs
Copy Code
using System;
using Intersoft.Client.Data.ComponentModel;
using QueryBuilderServerSide.ModelServices;
using QueryBuilderServerSide.DomainModel;

namespace QueryBuilderServerSide.ViewModels
{
    public class ProductsViewModel : EditableGridViewModelBase<Product>
    {
        #region Constructor

        public ProductsViewModel()
        {
            this.QueryDescriptor.SuspendQueryChanged = true;
            this.QueryDescriptor.SortDescriptors.Add(new SortDescriptor("ProductID"));
            this.QueryDescriptor.SuspendQueryChanged = false;
        }

        #endregion

        #region Data Source

        private IDataRepository _dataSource;

        protected override IDataRepository DataSource
        {
            get { return _dataSource ?? (_dataSource = new ProductsRepository(RepositoryManager.Create())); }
        }

        #endregion

        public Type ObjectType
        {
            get { return typeof(Product); }
        }
    }
}

3. Modify Customers.xaml

Do not forget to reference Intersoft.Client.UI.Editors assembly.
Customers.xaml
Copy Code
<Intersoft:UXPage xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" mc:Ignorable="d"
        xmlns:Intersoft="http://intersoft.clientui.com/schemas"
        xmlns:ViewModels="clr-namespace:QueryBuilderServerSide.ViewModels" x:Class="QueryBuilderServerSide.Customers"
        Title="Customers Page" d:DesignWidth="800" d:DesignHeight="600" Style="{StaticResource CommonPageStyle}">

    <Intersoft:UXPage.DataContext>
        <ViewModels:ProductsViewModel />
    </Intersoft:UXPage.DataContext>

    <Grid x:Name="LayoutRoot">
        <Grid.Background>
            <ImageBrush AlignmentY="Bottom" AlignmentX="Right" Stretch="None" Opacity="0.5"
                    ImageSource="../Assets/Images/CustomersFolderLarge.png">
                <ImageBrush.Transform>
                    <TranslateTransform X="40" Y="40" />
                </ImageBrush.Transform>
            </ImageBrush>
        </Grid.Background>
        <Intersoft:DockPanel Margin="10" FillChildMode="Custom">
            <Intersoft:StylishLabel Content="Customers Page" Intersoft:DockPanel.Dock="Top"
                    Style="{StaticResource PageHeaderStyle}" />
            <Grid Intersoft:DockPanel.IsFillElement="True">
                <StackPanel>
                    <Intersoft:UXQueryBuilder QueryOperation="Server" ObjectType="{Binding ObjectType}"
                            FilterDescriptors="{Binding QueryDescriptor.FilterDescriptors}" />
                    <Intersoft:UXGridView Intersoft:DockPanel.IsFillElement="True" IsBusy="{Binding IsBusy}"
                            ItemsSource="{Binding Items}" QueryOperation="Server" AutoGenerateColumns="False"
                            SortDescriptors="{Binding QueryDescriptor.SortDescriptors, Mode=TwoWay}"
                            PageDescriptor="{Binding QueryDescriptor.PageDescriptor}" PageSize="20" CanUserPage="True">
                        <Intersoft:UXGridView.Columns>
                            <Intersoft:UXGridViewTextColumn Header="Product ID" Binding="{Binding ProductID}" />
                            <Intersoft:UXGridViewTextColumn Header="Product Name" Binding="{Binding ProductName}" />
                            <Intersoft:UXGridViewTextColumn Header="Supplier ID" Binding="{Binding SupplierID}" />
                            <Intersoft:UXGridViewTextColumn Header="Category ID" Binding="{Binding CategoryID}" />
                            <Intersoft:UXGridViewTextColumn Header="Quantity Per Unit" Binding="{Binding QuantityPerUnit}" />
                            <Intersoft:UXGridViewTextColumn Header="Unit Price" Binding="{Binding UnitPrice}" />
                            <Intersoft:UXGridViewTextColumn Header="Units In Stock" Binding="{Binding UnitsInStock}" />
                            <Intersoft:UXGridViewTextColumn Header="Units On Order" Binding="{Binding UnitsOnOrder}" />
                            <Intersoft:UXGridViewTextColumn Header="Reorder Level" Binding="{Binding ReorderLevel}" />
                        </Intersoft:UXGridView.Columns>
                    </Intersoft:UXGridView>
                </StackPanel>
            </Grid>
        </Intersoft:DockPanel>
    </Grid>
</Intersoft:UXPage>

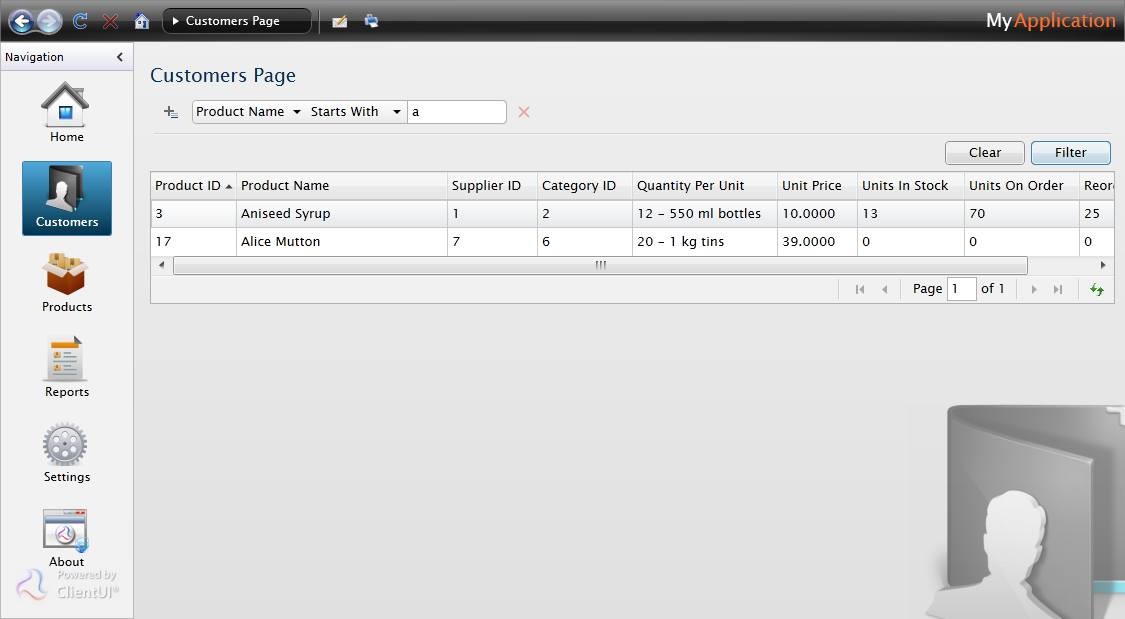

4. Run the project.
