Adding custom fields in WebScheduler using Extensibility feature

This walkthrough shows how to add custom fields in WebScheduler using Extensibility feature.

During this walkthrough, you will learn how to do the following:

Bind WebScheduler.NET using ISDataSource.NET
Add custom fields using Extensibility feature
Enable editing in WebScheduler.NET
Modify EditingForm_Extended.aspx
Enable editing for custom fields

Prerequisites

In order to complete this walkthrough, you will need to do the following:

Access to the Microsoft Access WebScheduler_EventOrganizer.mdb.
Visual Studio 2005/2008/2010 application.

Step-By-Step Instructions

To add custom fields in WebScheduler using Extensibility feature

Bind WebScheduler.NET using ISDataSource.NET

Create WebScheduler_EventOrganizer.mdb (access database).

Here are the tables that should exist in the database.
Categories

FieldName	DataType
CategoryID	AutoNumber
CategoryName	Text
CategoryDescription	Text
CategoryColor	Text

Resources

FieldName	DataType
IResourceD	AutoNumber
ResourceName	Text
ResourceDescription	Text
ResourceColor	Text

Events

FieldName	DataType
EventID	AutoNumber
CategoryID	Text
ResourceID	Number
Mode	Number
ClientName	Text
EventDescription	Text
AllDayEvent	Yes/No
StartTime	Date/Time
EndTime	Date/Time
ReminderTimeSpan	Number
Location	Text
Notes	Text
TotalAttendees	Number

Note: The highlighted columns (Notes and TotalAttendees) are custom fields.

RecurrenceEvents

FieldName	DataType
EventID	AutoNumber
RecurrenceID	Number
CategoryID	Text
ResourceID	Number
ParentID	Number
Mode	Number
ClientName	Text
EventDescription	Text
AllDayEvent	Yes/No
StartTime	Date/Time
EndTime	Date/Time
ExceptionDate	Date/Time
ExceptionInfo	Number
ReminderTimeSpan	Number
Location	Text
Notes	Text
TotalAttendees	Number

Note: The highlighted columns (Notes and TotalAttendees) are custom fields.

RecurrenceInfo

FieldName	DataType
RecurrenceID	AutoNumber
Mode	Number
RangeMode	Number
StartDate	Date/Time
EndDate	Date/Time
TotalRecurrences	Number
NDay	Number
NWeek	Number
NMonth	Number
NYear	Number
WeekDays	Text

Launch Visual Studio.NET 2005.
Click on File menu, then select New and click Web Site.
Select ASP.NET Web Site in the Template box and set Location to HTTP.
Named the Web Site and click OK.
Right-click on Project's name and select Add New Item.
Select Intersoft AppForm in the My Templates box and named it as Walkthrough.aspx.
Drag and drop WebScheduler instance from toolbar to WebForm.
Drag and drop ISDataSource instance from toolbar to WebForm.
In the Solution Explorer, right-click on App_Data and select Add Existing Item.
Browse and add WebScheduler_EventOrganizer.mdb (the database that you have created).
In the Solution Explorer, right-click on App_Code and select Add New Item.
Add a Dataset and named itWebScheduler_EventOrganizer.xsd.

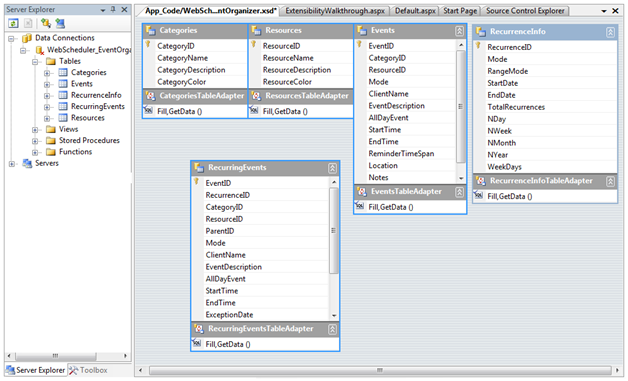

Drag and drop the tables from server explorer to the dataset then save the dataset.
In the Solution Explorer, right-click on App_Code and select Add New Item.
Add a new class and named it WebScheduler_EventOrganizer.cs.

Add the following code to the WebScheduler_EventOrganizer.cs.

Copy Code

namespace EventOrganizerTableAdapters
{
   public partial class ResourcesTableAdapter : global::System.ComponentModel.Component
   {
      [global::System.Diagnostics.DebuggerNonUserCodeAttribute()]
      [global::System.ComponentModel.Design.HelpKeywordAttribute("vs.data.TableAdapter")]
      [global::System.ComponentModel.DataObjectMethodAttribute(global::System.ComponentModel.DataObjectMethodType.Insert, true)]
      public virtual int Insert(int ResourceID, string ResourceName, string ResourceDescription, string ResourceColor)
      {
         this.Connection.Open();
         try
         {
            this.Insert(ResourceName, ResourceDescription, ResourceColor);
            OleDbCommand command = new OleDbCommand();
            command.CommandText = "SELECT @@IDENTITY";
            command.Connection = this.Connection;
            return (int)command.ExecuteScalar();
         }
         finally
         {
            this.Connection.Close();
         }
      }
   }

   public partial class CategoriesTableAdapter : global::System.ComponentModel.Component
   {
      [global::System.Diagnostics.DebuggerNonUserCodeAttribute()]
      [global::System.ComponentModel.Design.HelpKeywordAttribute("vs.data.TableAdapter")]
      [global::System.ComponentModel.DataObjectMethodAttribute(global::System.ComponentModel.DataObjectMethodType.Insert, true)]
      public virtual int Insert(int CategoryID, string CategoryName, string CategoryDescription, string CategoryColor)
      {
         this.Connection.Open();
         try
         {
            this.Insert(CategoryName, CategoryDescription, CategoryColor);
            OleDbCommand command = new OleDbCommand();
            command.CommandText = "SELECT @@IDENTITY";
            command.Connection = this.Connection;
            return (int)command.ExecuteScalar();
         }
         finally
         {
            this.Connection.Close();
         }
      }
   }
   public partial class RecurrenceInfoTableAdapter : global::System.ComponentModel.Component
   {
      [global::System.Diagnostics.DebuggerNonUserCodeAttribute()]   [global::System.ComponentModel.Design.HelpKeywordAttribute("vs.data.TableAdapter")]
      [global::System.ComponentModel.DataObjectMethodAttribute(global::System.ComponentModel.DataObjectMethodType.Insert, true)]
      public virtual int Insert(int RecurrenceID, global::System.Nullable<int> Mode, global::System.Nullable<int> RangeMode,
      global::System.Nullable<global::system.datetime> StartDate, global::System.Nullable<global::system.datetime> EndDate,
      global::System.Nullable<int> TotalRecurrences, global::System.Nullable<int> NDay, global::System.Nullable<int> NWeek,
      global::System.Nullable<int> NMonth, global::System.Nullable<int> NYear, string WeekDays)
      {
         this.Connection.Open();
         try
         {
            this.Insert(Mode, RangeMode, StartDate, EndDate, TotalRecurrences, NDay, NWeek, NMonth, NYear, WeekDays);
            OleDbCommand command = new OleDbCommand();
            command.CommandText = "SELECT @@IDENTITY";
            command.Connection = this.Connection;
            return (int)command.ExecuteScalar();

         }
         finally
         {
            this.Connection.Close();
         }
      }
   }
   public partial class RecurringEventsTableAdapter : global::System.ComponentModel.Component
   {
      [global::System.Diagnostics.DebuggerNonUserCodeAttribute()]
      [global::System.ComponentModel.Design.HelpKeywordAttribute("vs.data.TableAdapter")]
      [global::System.ComponentModel.DataObjectMethodAttribute(global::System.ComponentModel.DataObjectMethodType.Insert, true)]
      public virtual int Insert(int EventID, global::System.Nullable<int> RecurrenceID, string CategoryID,
      global::System.Nullable<int> ResourceID, global::System.Nullable<int> ParentID, global::System.Nullable<int> Mode,
      string ClientName, string EventDescription, bool AllDayEvent, global::System.Nullable<global::system.datetime> StartTime,       global::System.Nullable<global::system.datetime> EndTime, global::System.Nullable<global::system.datetime> ExceptionDate,
      global::System.Nullable<int> ExceptionInfo, global::System.Nullable<int> ReminderTimeSpan, string Location, string Notes, global::System.Nullable<int> TotalAttendees)         {
         this.Connection.Open();
         try
         {
            this.Insert(RecurrenceID, CategoryID, ResourceID, ParentID, Mode, ClientName, EventDescription,
            AllDayEvent, StartTime, EndTime, ExceptionDate, ExceptionInfo, ReminderTimeSpan, Location, Notes, TotalAttendees);
            OleDbCommand command = new OleDbCommand();
            command.CommandText = "SELECT @@IDENTITY";
            command.Connection = this.Connection;
            return (int)command.ExecuteScalar();
         }
         finally
         {
            this.Connection.Close();
         }
      }
   }
   public partial class EventsTableAdapter : global::System.ComponentModel.Component
   {
      [global::System.Diagnostics.DebuggerNonUserCodeAttribute()]
      [global::System.ComponentModel.Design.HelpKeywordAttribute("vs.data.TableAdapter")]
      [global::System.ComponentModel.DataObjectMethodAttribute(global::System.ComponentModel.DataObjectMethodType.Insert, true)]
      public virtual int Insert(int EventID, string CategoryID, global::System.Nullable<int> ResourceID,
      global::System.Nullable<int> Mode, string ClientName, string EventDescription, bool AllDayEvent,
      global::System.Nullable<global::system.datetime> StartTime, global::System.Nullable<global::system.datetime> EndTime,
      global::System.Nullable<int> ReminderTimeSpan, string Location, string Notes, global::System.Nullable<int> TotalAttendees)
      {
         this.Connection.Open();
         try
         {
            this.Insert(CategoryID, ResourceID, Mode, ClientName, EventDescription, AllDayEvent, StartTime, EndTime, ReminderTimeSpan, Location, Notes, TotalAttendees);                        OleDbCommand command = new OleDbCommand();
            command.CommandText = "SELECT @@IDENTITY";
            command.Connection = this.Connection;
            return (int)command.ExecuteScalar();
        }
        finally
        {
           this.Connection.Close();
        }
     }
  }
}

Build the solution.
Click the SmartTag and select Configure Data Source… on the upper right of the ISDataSource.

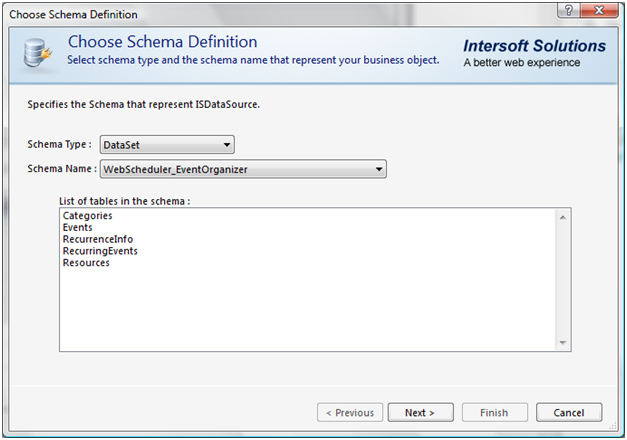

Select SchemaType to DataSet and Schema Name to WebScheduler_EventOrganizer then click Next.

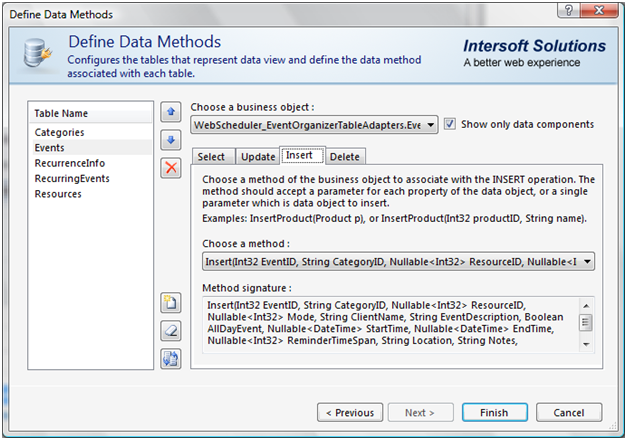

Make sure the Select, Insert, Update and Delete tab for each table is not empty then click Finish. Note that you need to choose the Insert method that is specified in WebScheduler_EventOrganizer.cs.

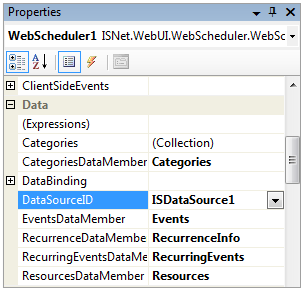

Select WebScheduler instance and press F4 to show the WebScheduler’s properties.

Set the following properties:

Property	Value
DataSourceID	ISDataSource1
CategoriesDataMember	Events
RecurrenceDataMember	RecurrenceInfo
RecurringEventsDataMember	RecurringEvents
ResourcesDataMember	Resources

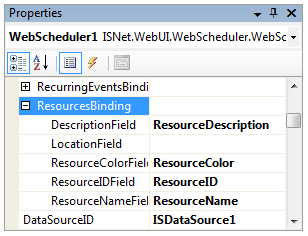

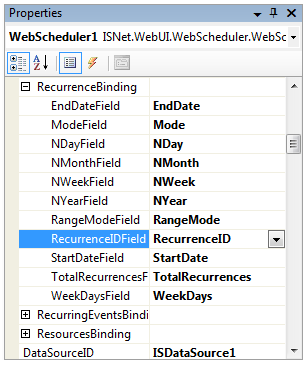

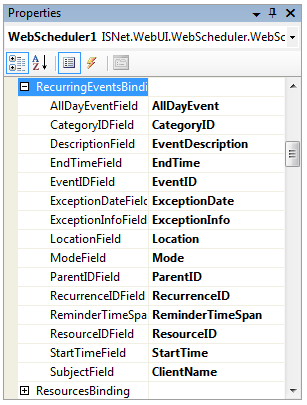

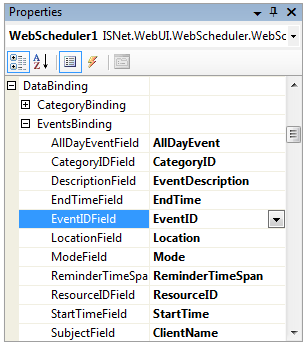

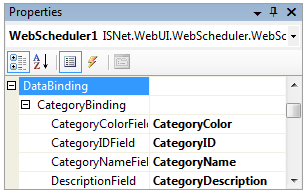

Expand DataBinding and specify the fields of CategoryBinding, EventsBinding, RecurrenceBinding, RecurrenceEventsBinding and ResourcesBinding based on the database fields.

Add custom fields using Extensibility feature

Open WebScheduler_EventOrganizer.cs.

Add EOEvent class which is inherited from WebSchedulerEvent object and add the custom properties. The custom properties must have XmlSerializable and BinarySerializable attributes.
In this walkthrough, Notes and TotalAttendees custom properties are added.

Copy Code

using System;
using ISNet.WebUI.WebScheduler;
using System.ComponentModel;
using ISNet.Serialization;
using System.Data.OleDb;
public class EOEvent : WebSchedulerEvent
{
   private string _notes = "";
   private int _totalAttendees = 0;
   [NotifyParentProperty(true)]
   [XmlSerializable(), BinarySerializable()]
   public string Notes
   {
      get { return this._notes; }
      set { this._notes = value;}
   }
   [NotifyParentProperty(true)]
   [XmlSerializable(), BinarySerializable()]
   public int TotalAttendees
   {
      get { return this._totalAttendees; }
      set { this._totalAttendees = value; }
   }
}

Add EORecurringEvent class which is inherited from WebSchedulerRecurringEvent object and add the custom properties. The custom properties must have XmlSerializable and BinarySerializable attributes. In this walkthrough, Notes and TotalAttendees custom properties are added.

Copy Code

public class EORecurringEvent : WebSchedulerRecurringEvent
{
   private string _notes = "";
   private int _totalAttendees = 0;
   [NotifyParentProperty(true)]
   [XmlSerializable(), BinarySerializable()]
   public string Notes
   {
      get { return this._notes; }
      set { this._notes = value; }
   }
   [NotifyParentProperty(true)]
   [XmlSerializable(), BinarySerializable()]
   public int TotalAttendees
   {
      get { return this._totalAttendees; }
      set { this._totalAttendees = value; }
   }
}

Open ExtensibilityWalkthrough.aspx.

Add the following script code. You need to create the same extended class in client side. In this walkthrough, we will add EOEvent and EORecurringEvent class in client side.

Javascript

Copy Code

<script type="text/javascript">

   //inherit the class from WebSchedulerEvent class
   function EOEvent()
   {
      WebSchedulerEvent.call(this);
       this._Type = "EOEvent";
       this.Notes = "";
       this.TotalAttendees = 0;
   }

   //inherit the class from WebSchedulerRecurringEvent class
   function EORecurringEvent()
   {
      WebSchedulerRecurringEvent.call(this);
      this._Type = "EORecurringEvent";
      this.Notes = "";
      this.TotalAttendees = 0;
   }
</script>

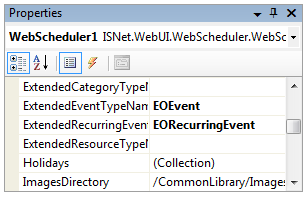

Switch to Design view and set ExtendedEventTypeName and ExtendedRecurringEventTypeName properties.

Add OnDataBound server side event. In this event, the custom fields are bound to the related field in database.

Copy Code

protected void WebScheduler1_DataBound(object sender, ISNet.WebUI.WebScheduler.WebSchedulerDataBoundDataArgs e)
{
   switch (e.Type)
   {
      case ISNet.WebUI.WebScheduler.WebSchedulerObjectType.Event:
         EOEvent evt = e.DataObject as EOEvent;
         evt.Notes = e.DataRow["Notes"].ToString();
         if (e.DataRow["TotalAttendees"] != System.DBNull.Value)
            evt.TotalAttendees = int.Parse(e.DataRow["TotalAttendees"].ToString());
         break;

      case ISNet.WebUI.WebScheduler.WebSchedulerObjectType.RecurringEvent:
         EORecurringEvent recurringEvent = e.DataObject as EORecurringEvent;
         recurringEvent.Notes = e.DataRow["Notes"].ToString();
         if (e.DataRow["TotalAttendees"] != System.DBNull.Value)
            recurringEvent.TotalAttendees = int.Parse(e.DataRow["TotalAttendees"].ToString());
         break;
   }
}

Enable editing in WebScheduler.NET

Open WebScheduler_EventOrganizer.cs.

Set the following properties

FieldName	DataType
DataEditing-AllowAdd	Yes
DataEditing-AllowEdit	Yes
DataEditing-AllowResize	Yes
DataEditing-allowMova	Yes

When AllowEdit is set to Yes, you will be prompted to add EditingForm.aspx to the solution. The default path is WebScheduler/EditingForm.aspx. The EditingUrl property will be set to that path.
Browse to WebScheduler/EditingForm.aspx and rename it to EditingForm_Extended.aspx.

In the Solution Explorer, right click in Bin, and add the following assemblies from each product folder.

FieldName	DataType
ISNet.WebUI.WebCombo.dll	C:\Program Files\Intersoft Solutions\WebCombo.NET 4.0\Bin
ISNet.WebUI.WebInput.dll	C:\Program Files\Intersoft Solutions\WebInput.NET 3.0\Bin
ISNet.WebUI.WebDesktop.dll	C:\Program Files\Intersoft Solutions\WebDesktop.NET 2.5\Bin

Modify EditingForm_Extended.aspx

Open WebScheduler/EditingForm_Extended.aspx
Add two rows under Categories row for Notes and TotalAttendees fields.
Add two WebInput controls for the two fields, and name them wiTotalAttendees and wiNotes.

The following is the complete added code. You can get EditingForm_Extended.aspx from Live Sample (C:\Program Files\Intersoft Solutions\Intersoft WebUI Studio.NET 2008 R2\ISNet.WebUI.Samples\cs\WebScheduler\WebScheduler).

<tr>
   <td>
      Total Attendees:
   </td>
   <td>
      <ISWebInput:WebInput ID="wiTotalAttendees" runat="server" Width="40px" NumericInput="True">
      <CalculatorEditor>
         <WindowInfo DisplayType="Normal">
         </WindowInfo>
      </CalculatorEditor>
      <CultureInfo CultureName="en-US">
      </CultureInfo>
      <DateTimeEditor>
         <WindowInfo DisplayType="Normal">
         </WindowInfo>
      </DateTimeEditor>
      </ISWebInput:WebInput>
   </td>
</tr>

<tr style="vertical-align: top;">
   <td>
      Notes:
   </td>
   <td>
      <ISWebInput:WebInput ID="wiNotes" runat="server" Width="90%" Rows="8" TextMode="MultiLine" Height="80px">
      <CultureInfo CultureName="en-US">
      </CultureInfo>
      <TextBoxStyle>
         <Active CssClass="textbox">
         </Active>
         <Over CssClass="textbox">
         </Over>
         <Normal CssClass="textbox">
         </Normal>
      </TextBoxStyle>
      </ISWebInput:WebInput>
   </td>
</tr>

Enable editing for custom fields

Open WebScheduler_EventOrganizer.cs

Add OnEditingFormInitialize client side event, where the custom fields’ initial value can be set.

Javascript

Copy Code

function WebScheduler1_OnEditingFormInitialize(controlId, action, eventView, eventType, newType)
{
   var s = ISGetObject(controlId);
   var editWindow = s.GetEditingFormWindow();
   var originalObject = eventView.GetOriginalObject();

   var notes = "";
   var totalAttendees = 0;

   if (action == "Edit")
   {
      notes = originalObject.Notes;
      totalAttendees = originalObject.TotalAttendees;
   }

   var wiNotes = editWindow.ISGetObject("wiNotes");
   wiNotes.SetValueData(notes);

   var wiTotalAttendees = editWindow.ISGetObject("wiTotalAttendees");
   wiTotalAttendees.SetValueData(totalAttendees);

   return true;
}

Add OnBeforeAdd and OnBeforeEdit client side events, to save the custom fields’ value during add and edit process.

Javascript

Copy Code

function WebScheduler1_OnBeforeAdd(controlId, evt)
{
   var s = ISGetObject(controlId);
   SetFields(s, evt.Parent);
   return true;
}

function WebScheduler1_OnBeforeEdit(controlId, evt)
{
   var s = ISGetObject(controlId);
   SetFields(s, evt.Parent);
   return true;
}

function SetFields(s, eventView)
{
   var editWindow = s.GetEditingFormWindow();

   var notes = "";
   var totalAttendees = 0;

   if (editWindow != null)
   {
      notes = editWindow.ISGetObject("wiNotes").GetValueData();
      totalAttendees = editWindow.ISGetObject("wiTotalAttendees").GetValueData();
   }

   eventView.SetProperty("Notes", notes);
   eventView.SetProperty("TotalAttendees", totalAttendees);
}

The custom fields are added to the architecture and UI of WebScheduler. You can try to run the page and add/edit the custom fields’ value. The process will be updated to physical database.

Services

Support

Intersoft Support Center

Adding custom fields in WebScheduler using Extensibility feature

Prerequisites

Step-By-Step Instructions

Getting Started

Viewing Data by Time

Viewing Data by Resources

Customizing User Interface with Basic Settings

Integrating Other Intersoft Controls

Improving Performance

Working with Timeline View

Working with Calendar

Paging Data

Exporting Data

Editing Data

Using Disabled Time

Customizing User Interface with Advanced Settings

Extensibility

Business Platform

Development Tools

Intersoft Support Center

Adding custom fields in WebScheduler using Extensibility feature

Getting Started

Viewing Data by Time

Viewing Data by Resources

Customizing User Interface with Basic Settings

Integrating Other Intersoft Controls

Improving Performance

Working with Timeline View

Working with Calendar

Paging Data

Exporting Data

Editing Data

Using Disabled Time

Customizing User Interface with Advanced Settings

Extensibility

Sign in to Intersoft Account

Sign in to Intersoft Account

Link Existing Account

Create New Account

Link Existing Account

Sign in to Intersoft Account

Sign in to Intersoft Account

Create New Intersoft Account

Forgot Password

Your new password has been sent to your email.
