In order to complete this walkthrough, you will need the following:

• Access to the Microsoft Access Northwind database.
• Visual Studio 2005/2008/2010 Application.

To setup WebValueList in WebGrid.

1. Launch Visual Studio.NET 2008.
2. Click on File menu, then select New and click Web Site.
3. Select ASP.NET Web Site in the Template box and set Location to HTTP.
4. Named the Web Site and click OK.
5. Drag WebGrid instance into WebForm.
6. Drag ISDataSource control into WebForm.
7. In Solution Explorer, right click on the project then click "Add New Item...".

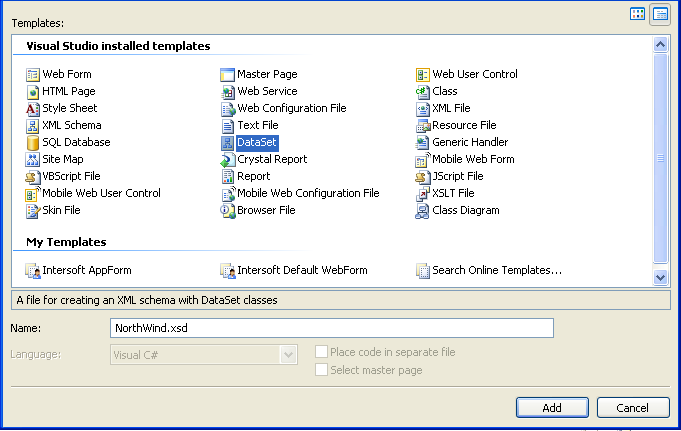

8. Add a DataSet and named it NorthWind to the project.

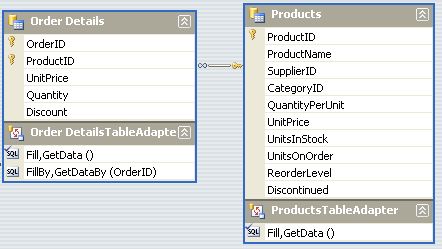

9. Add Order_Details and Products tables to the dataset.




10. Open ISDataSource SmartTag, click "Configure Data Source...".
11. Choose NorthWind dataset as ISDataSource SchemaName.

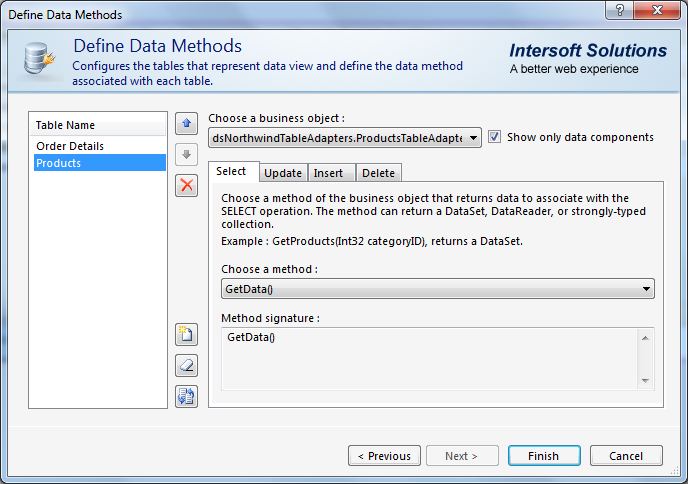

12. Click Next  and then add Order_Details and Products table to ISDataSource then Click Finish.




13. Open WebGrid's SmartTag and set the DataSource to ISDataSource1 then click OK to Retrieve WebGrid's structure.




14. Open WebGrid Designer - Advanced tab - RootTable - Columns. Search for ProductID.

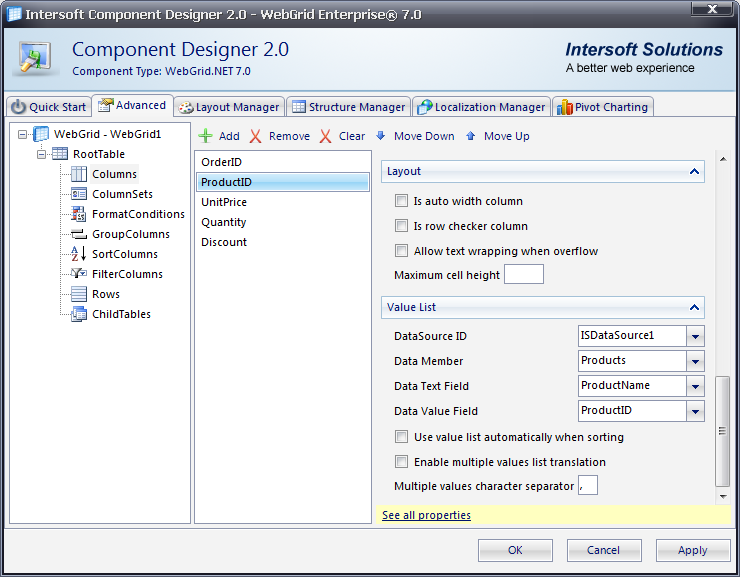

15. In the ProductID go to ValueList Expandable panel.
16. In ValueList Expandable panel, set the following properties:



    Property	Value
    DataMember	Products
    DataSourceID	ISDataSource1
    DataTextField	ProductName
    DataValueField	ProductID

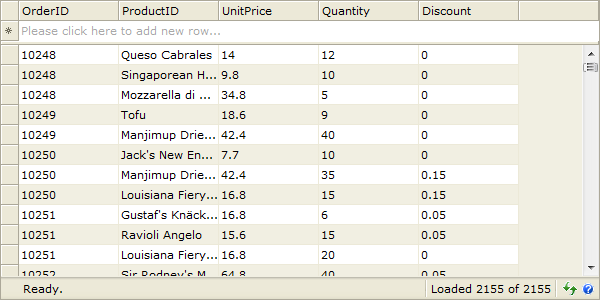

17. Compile and run the WebForm. The WebGrid will look like following:
