Implement Custom Paging for Partial Data Retrieval

This walkthrough shows you how to implement custom paging using ISDataSource.

During this walkthrough, you will learn how to do the following:

  • Use ISDataSource.
  • Use SmartTag to set DataSource.
  • Use Data Source Configuration Wizard to set the Database and table.

 Prerequisites

In order to complete this walkthrough, you will need the following:

  • Set EnablePaging of the datasource control to True.
  • Provides a method for Select. This method requires three parameters: startRow, maximumRows, and sortExpression.
  • Provides a method for SelectCount.
  • Visual Studio 2005/2008/2010 Application.

 Step-By-Step Instructions

To create new web application and bind WebGrid to AccessDataSource

  1. Launch Visual Studio.NET 2008.
  2. Click on File menu, then select New and click Web Site.
  3. Select ASP.NET Web Site in the Template box and set Location to HTTP.
  4. Named the Web Site and click OK.
  5. Right-click on Project's name and select Add New Item.
  6. Select Intersoft AppForm in the My Templates box and named it as Walkthrough.aspx.

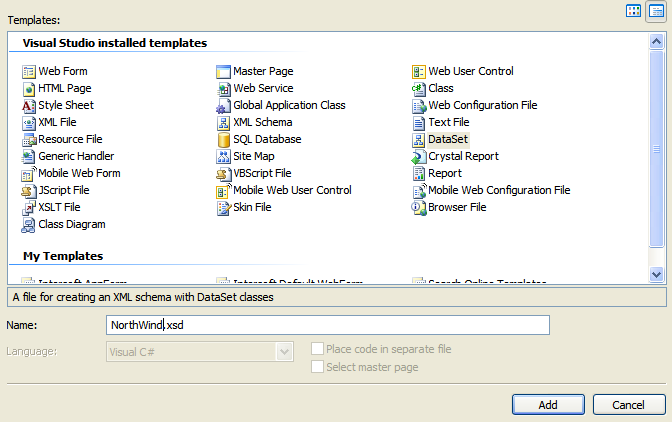

  7. Right-click on Project's name and select Add New Item.
  8. Choose DataSet and named it NorthWind.



  9. Add Customers table to the dataset.

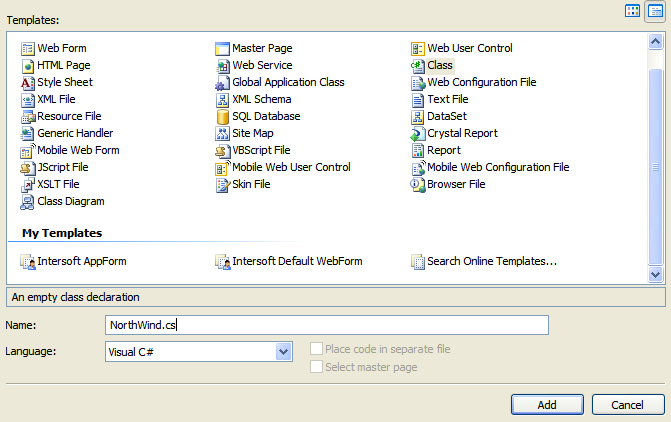

  10. Right-click on Project's name and select Add New Item.
  11. Choose Class and named it NorthWind.



  12. Create Select method and SelectCount in the class (NorthWind.cs).

    C# Copy ImageCopy Code
    namespace NorthWindTableAdapters
    {
       public partial class CustomersTableAdapter
       {
          public DataTable GetData(int startRowIndex, int maximumRows, string sortExpression)
          {
             NorthWind.CustomersDataTable dt = new NorthWind.CustomersDataTable();

             int topRows = startRowIndex + maximumRows;

             if (!string.IsNullOrEmpty(sortExpression))
                sortExpression = " order by " + sortExpression;

             OleDbDataAdapter adapter = new OleDbDataAdapter();
             adapter.SelectCommand = new OleDbCommand();
             adapter.SelectCommand.CommandText = "Select TOP " + topRows.ToString() + " * FROM Customers" + sortExpression;
             adapter.SelectCommand.Connection = this.Connection;

             adapter.Fill(dt);

             return dt;
          }

          public int SelectCount(string sortExpression)
          {
             this.Connection.Open();
             OleDbDataAdapter adapter = new OleDbDataAdapter();
             adapter.SelectCommand = new OleDbCommand();
             adapter.SelectCommand.CommandText = "Select COUNT(*) From Customers";
             adapter.SelectCommand.Connection = this.Connection;

             int result = (int)adapter.SelectCommand.ExecuteScalar();
             this.Connection.Close();

             return result;
          }
       }
    }

  13. Drag WebGrid instance from ToolBar to WebForm.
  14. Click the SmartTag on the upper right of the WebGrid.
  15. In Choose Data Source field, choose <New data source...>.



  16. In Data Source Configuration Wizard, choose ISDataSource and click OK.

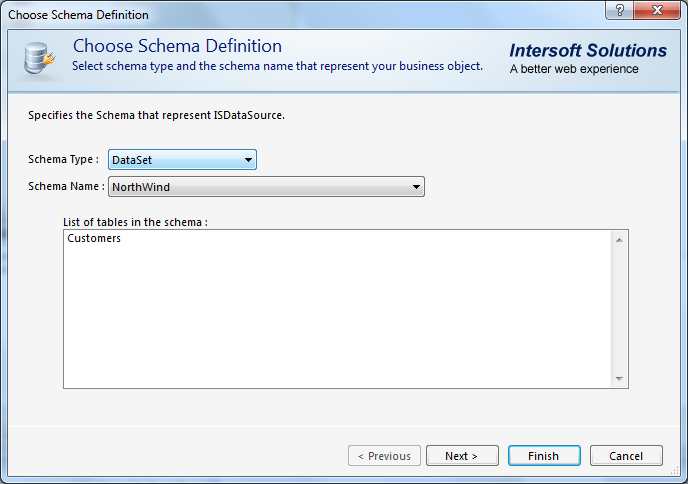

  17. Select the Schema Type that you want to use and click Next.

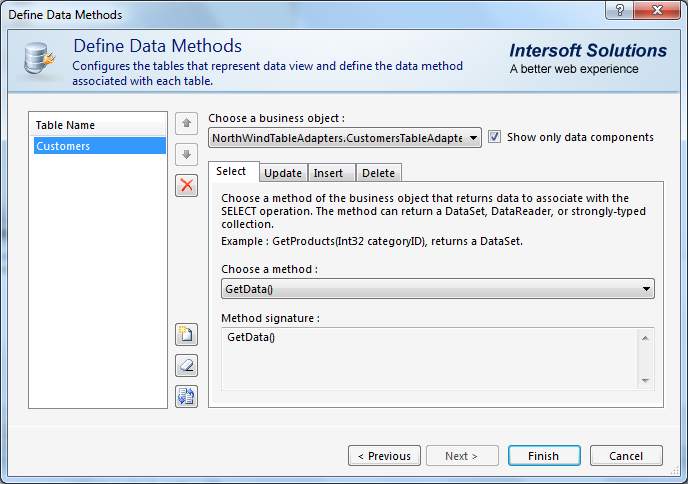

  18. Add Customers tables and click Finish.

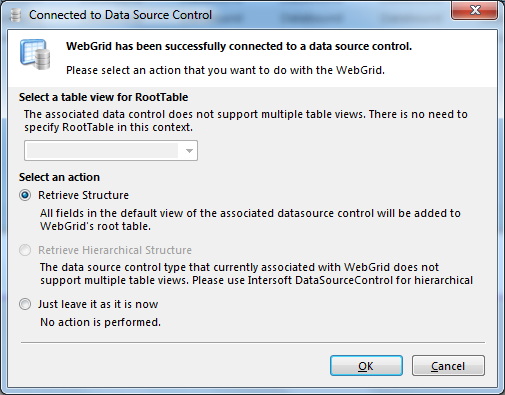

  19. Finally, choose Retrieve Structure action in Connected to Data Source Control Wizard and click OK.



  20. Set the WebGrid's properties as following:

    Property Value
    PagingLoadMode Custom
    PagingMode ClassicPaging

  21. Open ISDataSource properties >> Tables and set Customer's Table properties as following:

    Property Value
    EnablePaging True
    SelectCountMethod SelectCount

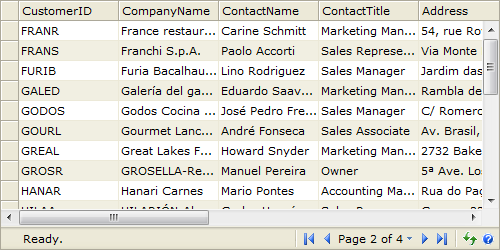

  22. Run the project and the WebGrid will look like following.
