Walkthrough: Configuring Hierarchical CheckBox behavior
See Also Send comments on this topic.

Glossary Item Box

This walkthrough will show how to configure a hierarchical check box.

During this walkthrough, you will learn how to do the following :

 Prerequisites

In order to complete this walkthrough, you will need the following:

  • Access to the Microsoft Access NorthWind database.
  • Visual Studio 2005 Application.

 Step-By-Step Instructions

  1. Bind WebGrid Hierarchical to ISDataSource.
  2. In the PrepareDataBinding event, use the following code to retrieve the structure and add isRowChecker columns.

  3. C# Copy ImageCopy Code
    private void WebGrid1_PrepareDataBinding(object sender,
    ISNet.WebUI.WebGrid.DataSourceEventArgs e)
    {
    // Add a checkbox column in the root table
    // as well as in the child table
    // Configure the checkbox column as the RowChecker

    if(!IsPostBack)
    {

    WebGridColumn col = new WebGridColumn("chk1", "chk1");
    col.Bound = false;
    col.IsRowChecker = true;
    WebGrid1.RootTable.Columns.Insert(0, col);

    col = new WebGridColumn("chk2", "chk2");
    col.Bound = false;
    col.IsRowChecker = true;
    WebGrid1.GetTableByName("Orders").Columns.Insert(0, col);
    }
    }

  4. Invoke the Initialize Layout server side event to call the onCheckBoxClick clientside event.

  5. C# Copy Code
    private void WebGrid1_InitializeLayout(object sender, ISNet.WebUI.WebGrid.LayoutEventArgs e)
    {
            // Attach a client side event on 'OnCheckBoxClick' event
            e.Layout.ClientSideEvents.OnCheckBoxClick = "DoCheckBoxClick";
    }


  6. Following is the code for the DoCheckBoxClick function clientside javascript to call the onCheckBoxClick.

    JavaScript Copy ImageCopy Code
    function DoCheckBoxClick(gridId, tblName, colName, checkBoxValue)
    {

        // obtain WebGrid object

        var grid = ISGetObject(gridId);
        // obtain the current WebGridRow object of
        // the checked row

        var row = grid.Tables[tblName].ToRowObject(grid.CheckedRowContext);
        // only run the below function
        // when the current root table is "Customers"
        // and there is minimum one
        // child table under the "Customers" table

        if(tblName == "Customers" && row.Table.ChildTables.length > 0)
        {
            // check whether the child row has been expanded or not
            if(!row.ChildExpanded)
            {
                // utilize synchronous mode of WebGrid
                // so that all child rows can be
                // obtained in the same code flow

                row.ExpandChildRow(true);

                // obtain the WebGridRow collection of the child table

                var childRows = row.GetChildRows("Orders");

                // loop all the rows and check all rows if the parent row is checked
                // or uncheck all rows if the parent row is unchecked

                for(var i=0; i<childRows.length; i++)
                {
                    if(checkBoxValue)
                    {
                        childRows[i].Check();
                    }
                    else
                    {
                        childRows[i].Uncheck();
                    }
                }
            }
            else
            {
                // obtain the WebGridRow collection of the child table
                var childRows = row.GetChildRows("Orders");

                // loop all the rows and check all rows if the parent row is checked
                // or uncheck all rows if the parent row is unchecked
                for(var i=0; i<childRows.length; i++)
                {
                    if(checkBoxValue)
                    {
                        childRows[i].Check();
                    }
                    else
                    {
                        childRows[i].Uncheck();
                    }
                }
            }
        }

        return true;
    }

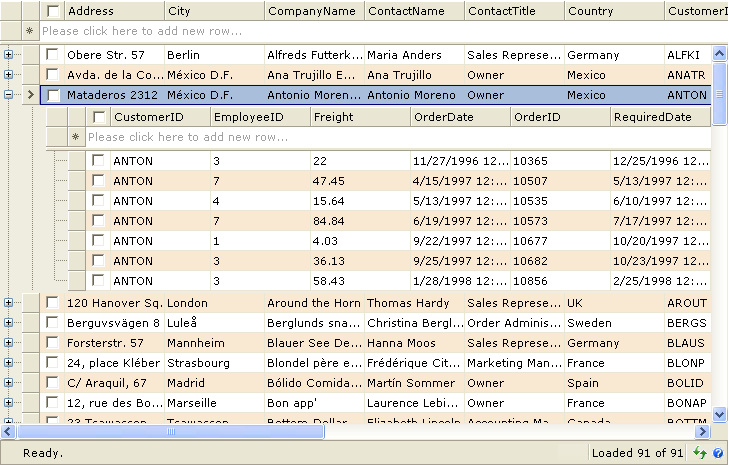

  7. Run the project and the WebGrid will look like following.
