Objectives

This tutorial shows how to add a new shortcut via Client-side code. It will create an image on the TaskBar left which will invoke onclick event from client-side code to implement adding a new shortcut.

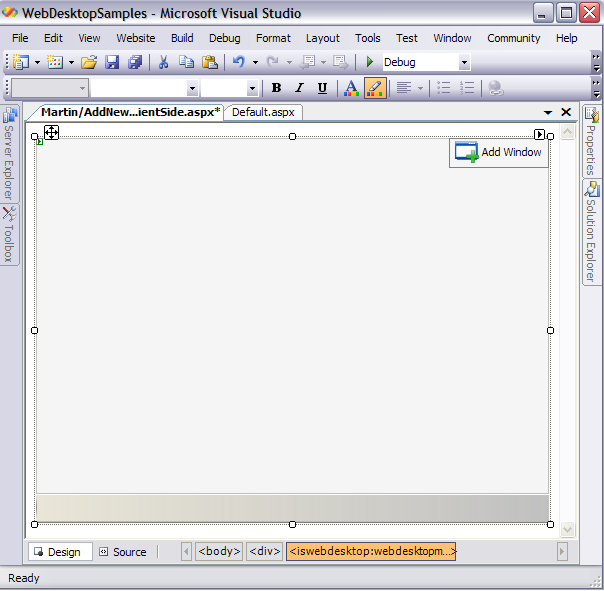

Drag WebDesktopManager from Toolbox into a WebForm page.

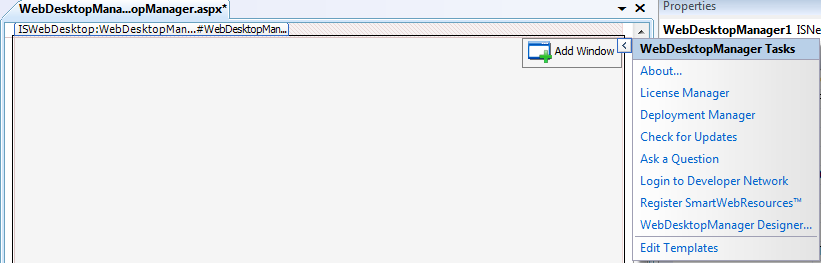

On the upper-right corner, click the arrow next to Add Window TaskBar. It is known as WebDesktopManager Tasks.
Click Edit Templates.

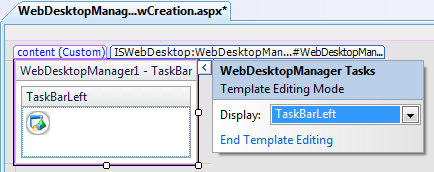

Click the DropDownArrow and choose TaskBarLeft.
Drag a HTML Image control from the ToolBox to the TaskBarLeft. You may customize the image from its properties according to your needs.

In the client-side, add the following codes:

Javascript

Copy Code

<script language="javascript" type="text/javascript">
function AddShorcut()
{
    // To add a Shortcut Icon
    var dm = ISGetDesktopManager();
    var shortcut1 = new WebDesktopShortcut();
    shortcut1.Name = "WebDesktopShortcut1";
    shortcut1.Text = "Welcome to WebDesktop.NET";
    shortcut1.Image = "../Images/welcome-32.gif";
    shortcut1.TargetURL = "../About.aspx";
    shortcut1.ToolTip = "Display Welcome Screen.";
    shortcut1.WindowName = "wndWelcome";

    dm.ShortcutIcons.Add(shortcut1);
    dm.ShortcutIconsVisible = true;
    shortcut1.Show();
}

function window::onload()
{
    // To add a Window
    var dm = ISGetDesktopManager();
    var wnd = dm.GetWindow("wndAboutDM");
    wnd = new WebDesktopWindow();
    wnd.Text = "About DesktopManager";
    wnd.Name = "wndWelcome";
    wnd.ControlBoxImage = "is_webdesktop-16.gif";
    wnd.ContentURL = "../About.aspx";
    wnd.ContentMode = "UseIFrame";
    wnd.AllowMinimize = "Yes";
    wnd.AllowMaximize = "Yes";

    dm.Windows.Add(wnd);
    wnd.Hide();
    wnd.Activate();
    wnd.MoveToCenterDesktop();
}
</script>

Invoke AddShorcut() function from the image's onclick event.

Script	Copy Code
<taskbarlefttemplate> <img src="../Images/WebDesktopIconRound.png" onclick="AddShorcut()" style="CURSOR: pointer" title="New Shortcut"> </taskbarlefttemplate>

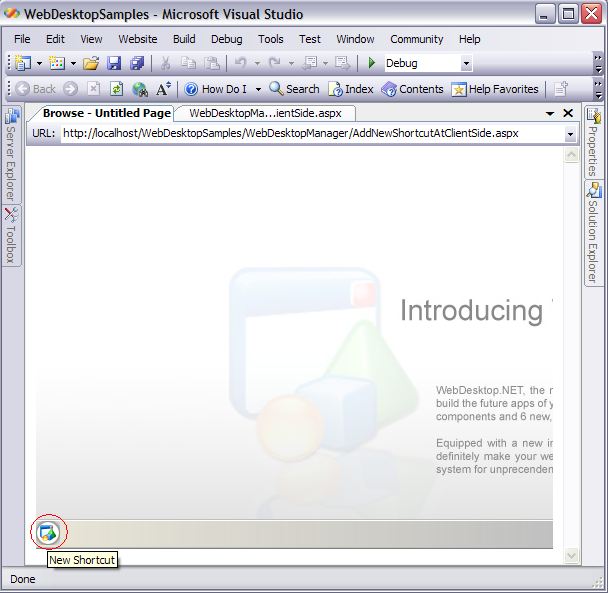

Run the project and click the image on the bottom-left corner, which is indicated as New Shortcut.

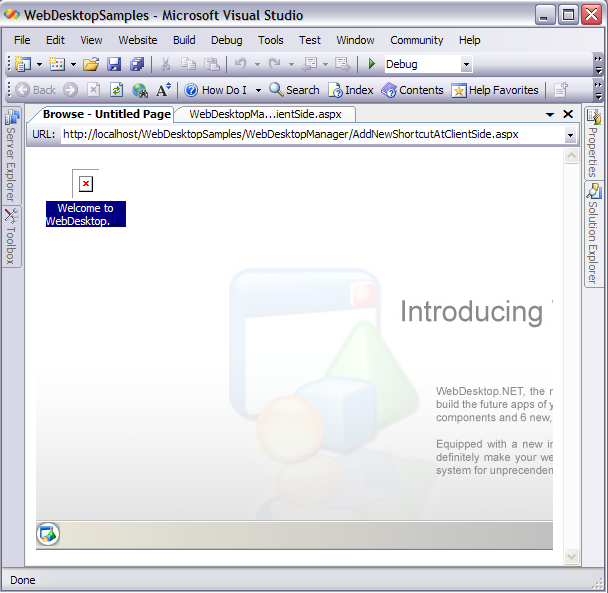

It will display a new shortcut like the following.

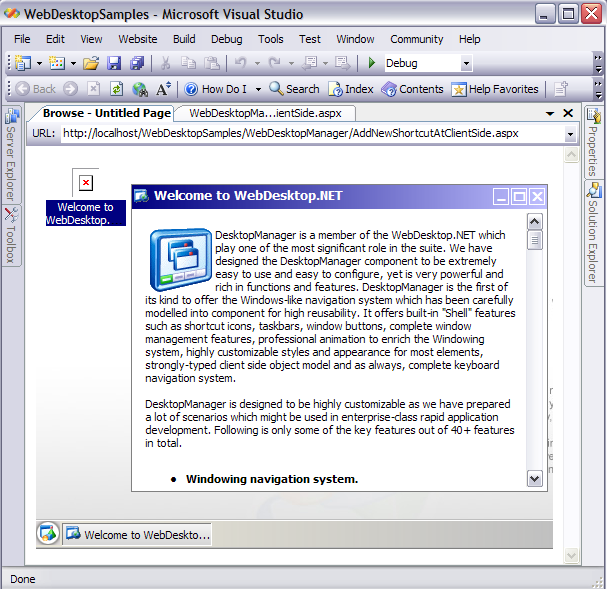

When you double-click on the shortcut icon, it will directly link to the new window created in the client-side.
