In order to complete this walkthrough, you will need the following:

• Visual Studio 2005 Application.

To specify cursor effect for all DragControls.

1. Launch Visual Studio.NET 2005.
2. Click on File menu, then select New and click Web Site.
3. Select ASP.NET Web Site in the Template box and set Location to HTTP.
4. Named the Web Site and click OK.
5. Right-click on Project's name and select Add New Item.
6. Select Intersoft AppForm in the My Templates box and named it as Walkthrough.aspx.

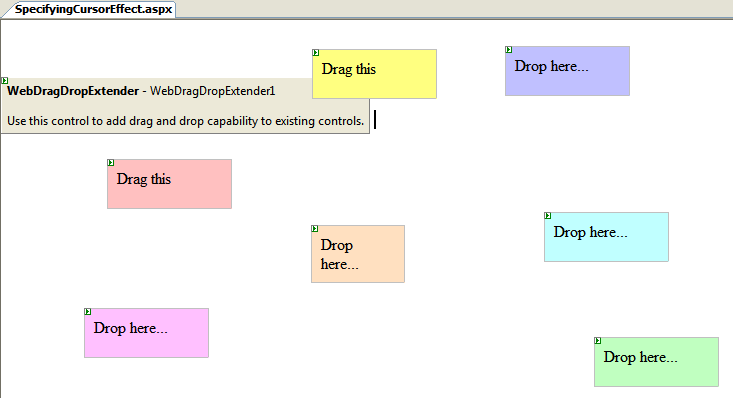

7. Drag 6 ASP.Net Panel to WebForm.
8. Drag WebDragDropExtender instance from ToolBar to the page.
9. Set the BackColor of each ASP.NET Panel.




10. Focus on WebDragDropExtender and press F4 (to go to WebDragDropExtender's properties).

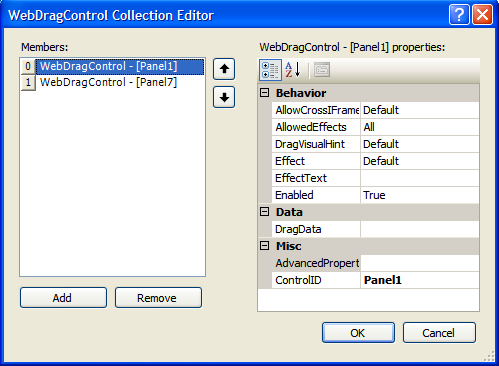

11. On DragControls property, click the (collection) to open WebDragControl Collection Editor. Set which panels that will become DragControl.




12. On DropControls property, click the (collection) to open WebDropControl Collection Editor. Set which panels that will become DropControl.




13. Search for DragSettings >> DefaultEffect. Set the cursor effect for all DragControls (for example : Copy)

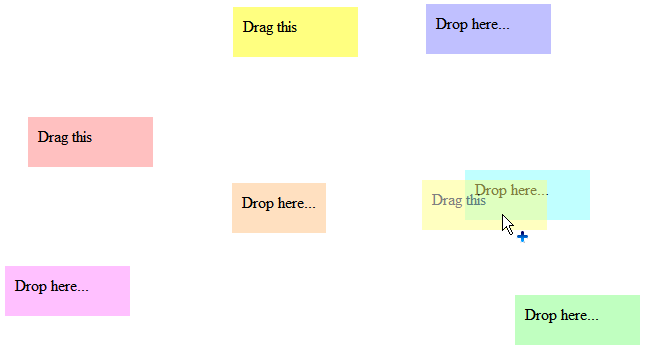

14. Run the project. You will notice the cursor effect when trying to drag the dragable panel and drop it to the dropable panel.
