You can create unbound WebTreeView using editor or server side code.

This topic will show you how to implement the above scenario.

To create unbound WebTreeView using designer

1. Right click on WebTreeView instance and choose WebTreeView.NET Designer.
2. Click the Tree Editor tab.

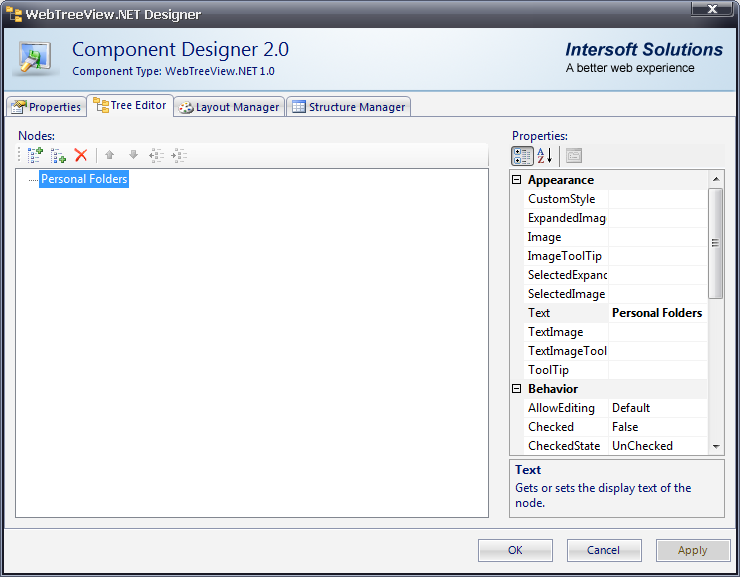

3. Click the "Add a root node" icon to add root nodes, select the new added node to set its properties.

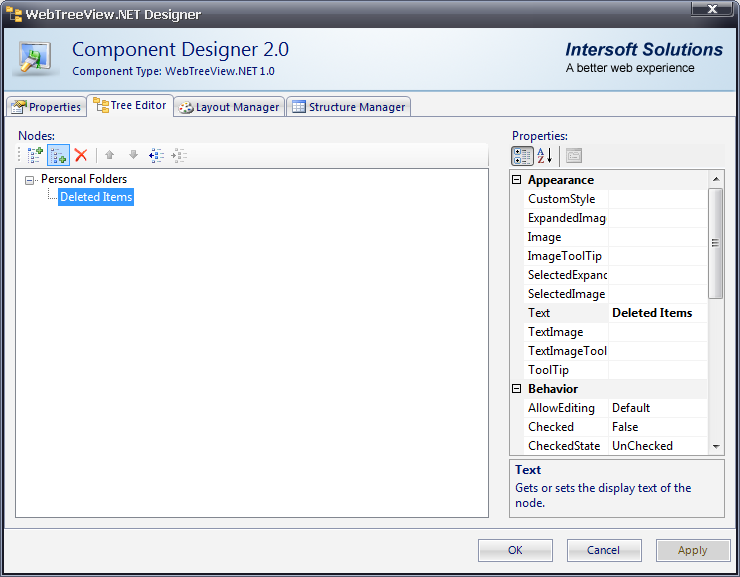

4. You can also add child nodes for the newly added nodes by clicking the "Add a child node" icon, select the new added node to set its properties.




5. Press Apply >> OK Button and run the project.

To create unbound WebTreeView using server side code

1. Drag WebTreeView instance from ToolBar to WebForm.
2. On Page_Load event handler, add the following code:



   C#

   Copy Code

   protected void Page_Load(object sender, EventArgs e) { WebTreeViewNode nodeRoot = new WebTreeViewNode(); nodeRoot.Text = "Personal Folders"; nodeRoot.Image = "./Images/PersonalFolders.gif"; nodeRoot.Expanded = true; WebTreeViewNode nodeParent = new WebTreeViewNode(); nodeParent.Text = "Deleted Items"; nodeParent.Image = "./Images/DeletedItems.gif"; nodeRoot.Nodes.Add(nodeParent); WebTreeViewNode nodeParent2 = new WebTreeViewNode(); nodeParent2.Text = "Drafts"; nodeParent2.Image = "./Images/Drafts.gif"; nodeRoot.Nodes.Add(nodeParent2); WebTreeViewNode nodeParent3 = new WebTreeViewNode(); nodeParent3.Text = "Inbox"; nodeParent3.Image = "./Images/Inbox.gif"; nodeRoot.Nodes.Add(nodeParent3); WebTreeViewNode nodeParent4 = new WebTreeViewNode(); nodeParent4.Text = "Junk E-mail"; nodeParent4.Image = "./Images/JunkEmail.gif"; nodeRoot.Nodes.Add(nodeParent4); WebTreeViewNode nodeParent5 = new WebTreeViewNode(); nodeParent5.Text = "Outbox"; nodeParent5.Image = "./Images/Outbox.gif"; nodeRoot.Nodes.Add(nodeParent5); WebTreeViewNode nodeParent6 = new WebTreeViewNode(); nodeParent6.Text = "RSS Feeds"; nodeParent6.Image = "./Images/RSSFeeds.gif"; nodeRoot.Nodes.Add(nodeParent6); WebTreeViewNode nodeParent7 = new WebTreeViewNode(); nodeParent7.Text = "Sent Items"; nodeParent7.Image = "./Images/SentItem.gif"; nodeRoot.Nodes.Add(nodeParent7); WebTreeViewNode nodeParent8 = new WebTreeViewNode(); nodeParent8.Text = "Search Folders"; nodeParent8.Image = "./Images/SearchFolders.gif"; WebTreeViewNode nodeLeaf = new WebTreeViewNode(); nodeLeaf.Text = "Categorized Mail"; nodeLeaf.Image = "./Images/SearchFolders.gif"; nodeParent8.Nodes.Add(nodeLeaf); WebTreeViewNode nodeLeaf2 = new WebTreeViewNode(); nodeLeaf2.Text = "For Follow Up"; nodeLeaf2.Image = "./Images/SearchFolders.gif"; nodeParent8.Nodes.Add(nodeLeaf2); WebTreeViewNode nodeLeaf3 = new WebTreeViewNode(); nodeLeaf3.Text = "Large Mail"; nodeLeaf3.Image = "./Images/SearchFolders-copy.gif"; nodeParent8.Nodes.Add(nodeLeaf3); WebTreeViewNode nodeLeaf4 = new WebTreeViewNode(); nodeLeaf4.Text = "Unread Mail"; nodeLeaf4.Image = "./Images/SearchFolders-copy.gif"; nodeParent8.Nodes.Add(nodeLeaf4); nodeRoot.Nodes.Add(nodeParent8); WebTreeView2.Nodes.Add(nodeRoot); WebTreeViewNode nodeRoot2 = new WebTreeViewNode(); nodeRoot2.Text = "Archieve Folders"; nodeRoot2.Image = "./Images/ArchiveFolders.gif"; WebTreeViewNode nodeParent9 = new WebTreeViewNode(); nodeParent9.Text = "Deleted Items"; nodeParent9.Image = "./Images/DeletedItems.gif"; nodeRoot2.Nodes.Add(nodeParent9); WebTreeViewNode nodeParent10 = new WebTreeViewNode(); nodeParent10.Text = "Sent Items"; nodeParent10.Image = "./Images/SentItem.gif"; nodeRoot2.Nodes.Add(nodeParent10); WebTreeViewNode nodeParent11 = new WebTreeViewNode(); nodeParent11.Text = "Search Folders"; nodeParent11.Image = "./Images/SearchFolders.gif"; nodeRoot2.Nodes.Add(nodeParent11); WebTreeView2.Nodes.Add(nodeRoot2); }



3. Run the project.
