Intersoft Support Center

Configure Scheduler Views

There are 7 view settings provided by WebScheduler to be customized according to user needs. All views are accessible in ViewSettings section.

These are the basic things needed to be configured to get started with WebScheduler.

Agenda View

Property Description Value
SelectedViewMode Specifies the initial WebScheduler's view mode. Agenda
NumberOfDays Specifies Agenda view number of days. 10
Enabled Indicates whether Agenda View should be enabled. True

Day View

Property Description Value
SelectedViewMode Specifies the initial WebScheduler's view mode. Day
VisibleStartTime Specifies the visible start time in Day and Week view. t0000
VisibleEndTime Specifies the visible end time in Day and Week. t2330
Enabled Indicates whether Day View should be enabled. True

Month View

Property Description Value
SelectedViewMode Specifies the initial WebScheduler's view mode. Month
Enabled Indicates whether Month View should be enabled. True

Quarter View

Property Description Value
SelectedViewMode Specifies the initial WebScheduler's view mode. Quarter
Enabled Indicates whether Quarter View should be enabled. True

Timeline View

Property Description Value
SelectedViewMode Specifies the initial WebScheduler's view mode. Timeline
SelectedTimelineViewMode Specifies Timeline view mode (Quarter, Month, Week, etc) DayHourly
EnableClientPaging Indicates whether client paging is enabled in Timeline View. True
ClientPagingMode Specifies Timeline's client paging mode (EventPageSize, ViewPort) EventPageSize
Enabled Indicates whether Timeline view should be enabled True

Week View

Property Description Value
SelectedViewMode Specifies the initial WebScheduler's view mode. Week
Enabled Indicates whether Week View should be enabled. True

Year View

Property Description Value
SelectedViewMode Specifies the initial WebScheduler's view mode. Year
Enabled Indicates whether Year View should be enabled. True

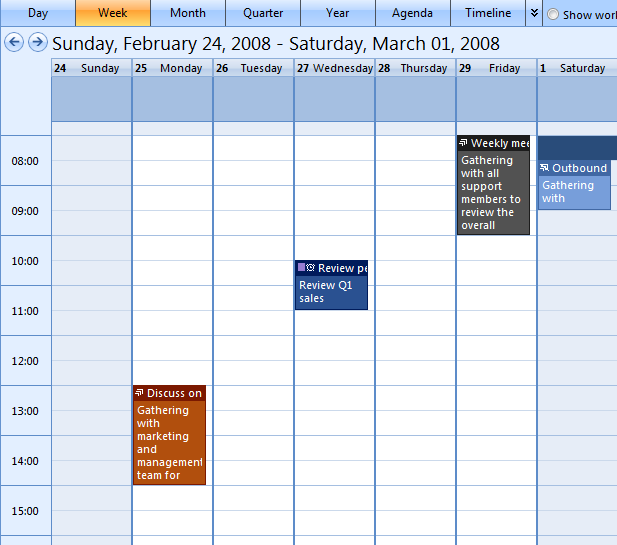

The following screenshot shows that Week view is set as the initial selected view mode and the other views are enabled.



SelectedViewMode and Enabled are the basic properties to be set in order to use the View Settings. For example: To use Day View in WebScheduler, you are required to set SelectedViewMode to Day and Enabled to True.
