Display Unbound Hierarchical Data

This walkthrough shows you how to create unbound hierarchical WebGrid.

During this walkthrough, you will learn how to do the following:

  • Use WebGridTable.
  • Use WebGridRow.

 Prerequisites

In order to complete this walkthrough, you will need the following:

  • Visual Studio 2005/2008/2010 Application.

 Step-By-Step Instructions

  1. Launch Visual Studio.NET 2008.
  2. Click on File menu, then select New and click Web Site.
  3. Select ASP.NET Web Site in the Template box and set Location to HTTP.
  4. Named the Web Site and click OK.
  5. Drag WebGrid instance into WebForm.
  6. Right click on WebGrid instance and choose WebGrid Designer.

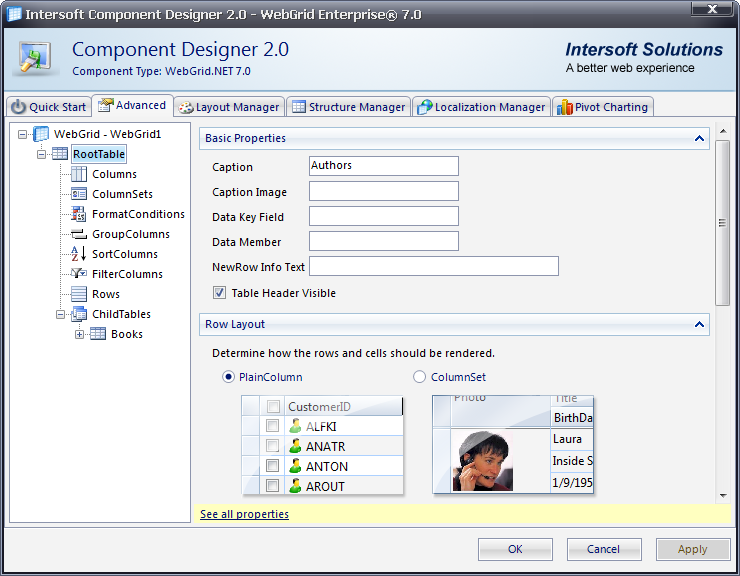

  7. Go to Advanced tabRootTable, set DataMember and Caption to Authors.
  8. Checked Table Header Visible checkbox in Basic Properties expandable panel.

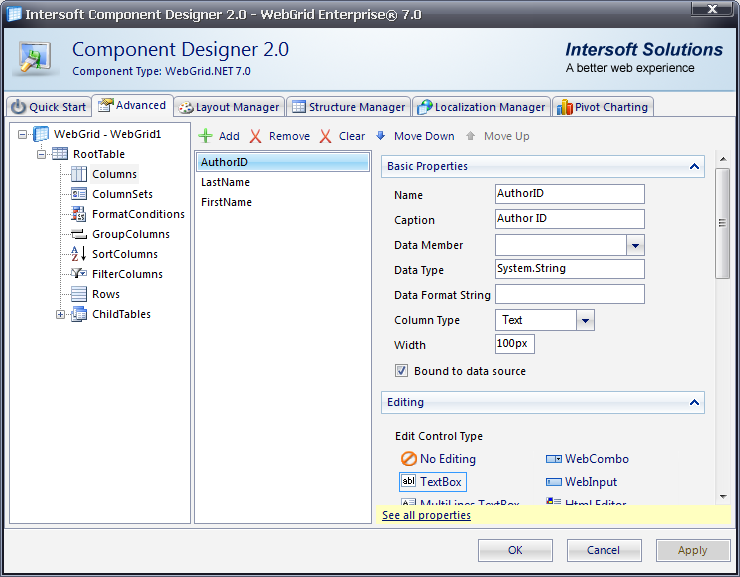

  9. Focus to Columns and add 3 columns (AuthorID, LastName and FirstName).

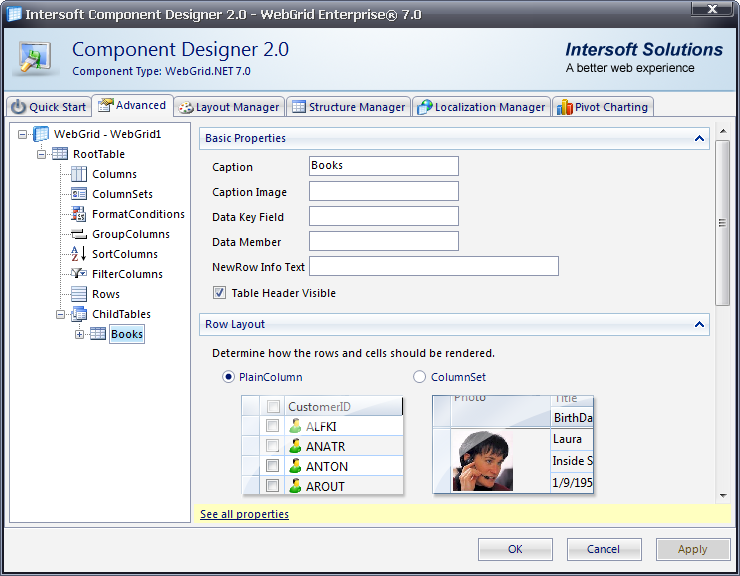

  10. In ChildTables, add one table and named it "Books".
  11. Checked Table Header Visible checkbox in Basic Properties expandable panel.

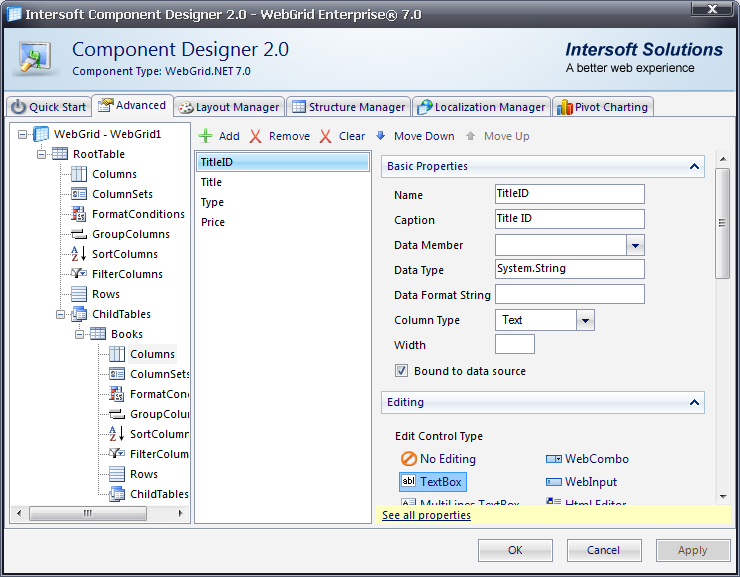

  12. Focus to Columns and add 4 columns (TitleID, Title, Type, and Price) to this table.


  13. Set the Price's DataType to "System.Double" and DataFormatString to "c".
  14. In Page_Load server side event, add these codes to setup RootTable and the ChildTable
C# Copy ImageCopy Code
protected void Page_Load(object sender, EventArgs e)
{
   body.Style.Add("overflow", "hidden");

   /* setup root rows and add them to RootTable */

   WebGridRow[] rootRows = new WebGridRow[6];

   for (int i = 0; i <= 6; i++)
      rootRows[i] = WebGrid1.RootTable.CreateRow();

   rootRows[0].Cells.SetItemData(new string[] { "172-32-1176", "White", "Johnson" });
   rootRows[1].Cells.SetItemData(new string[] { "213-46-8915", "Green", "Marjorie" });
   rootRows[2].Cells.SetItemData(new string[] { "238-95-7766", "Carson", "Cheryl" });
   rootRows[3].Cells.SetItemData(new string[] { "267-41-2394", "O'Leary", "Michael" });
   rootRows[4].Cells.SetItemData(new string[] { "274-80-9391", "Straight", "Dean" });
   rootRows[5].Cells.SetItemData(new string[] { "341-22-1782", "Smith", "Meander" });

   WebGrid1.RootTable.Rows.AddRange(rootRows);

   /* - create child rows and add them to the parent row in the RootTable
    * - in this sample, the second row in the root is not expandable
    * - first row is expanded programmatically
    * - all expandable rows should have at least one child row and the SetHierarchicalType()
    *   must be set to the Children collection.
   */

   WebGridTable childTable = WebGrid1.RootTable.ChildTables[0];
   WebGridRow[] childRows = new WebGridRow[11];

   for (int i = 0; i < 11; i++)
      childRows[i] = childTable.CreateRow();

   childRows[0].Cells.SetItemData(new object[] { "BU1032", "The Busy Executive's Database Guide", "Business", 19.99 });
   childRows[1].Cells.SetItemData(new object[] { "BU1111", "Cooking with Computers: Surreptitious Balance Sheets", "Business", 11.95 });
   childRows[2].Cells.SetItemData(new object[] { "BU2075", "You Can Combat Computer Stress!", "Business", 2.99 });
   childRows[3].Cells.SetItemData(new object[] { "BU7832", "Straight Talk About Computers", "Business", 19.99 });
   childRows[4].Cells.SetItemData(new object[] { "MC2222", "Silicon Valley Gastronomic Treats", "Cooking", 19.99 });
   childRows[5].Cells.SetItemData(new object[] { "MC3021", "The Gourmet Microwave", "Cooking", 14.95 });
   childRows[6].Cells.SetItemData(new object[] { "MC3026", "The Psychology of Computer Cooking", "Undecided", 10.29 });
   childRows[7].Cells.SetItemData(new object[] { "PC1035", "But Is It User Friendly?", "Popular Computer", 11.05 });
   childRows[8].Cells.SetItemData(new object[] { "PC8888", "Secrets of Silicon Valley", "Popular Computer", 24.99 });
   childRows[9].Cells.SetItemData(new object[] { "PC9999", "Net Etiquette", "Popular Computer", 9.49 });
   childRows[10].Cells.SetItemData(new object[] { "PS1372", "Computer Phobic AND Non-Phobic Individuals: Behavior Variations", "Psychology", 14.69 });

   rootRows[0].Children.SetHierarchicalType();
   rootRows[0].Children.AddRange(new WebGridRow[] { childRows[0], childRows[1], childRows[2] });
   rootRows[0].ExpandChildRow();

   rootRows[1].ChildNotExpandable = true;

   rootRows[2].Children.SetHierarchicalType();
   rootRows[2].Children.AddRange(new WebGridRow[] { childRows[3], childRows[4] });

   rootRows[3].Children.SetHierarchicalType();
   rootRows[3].Children.AddRange(new WebGridRow[] { childRows[5], childRows[6] });

   rootRows[4].Children.SetHierarchicalType();
   rootRows[4].Children.AddRange(new WebGridRow[] { childRows[7], childRows[8] });

   rootRows[5].Children.SetHierarchicalType();
   rootRows[5].Children.AddRange(new WebGridRow[] { childRows[9], childRows[10] });
}

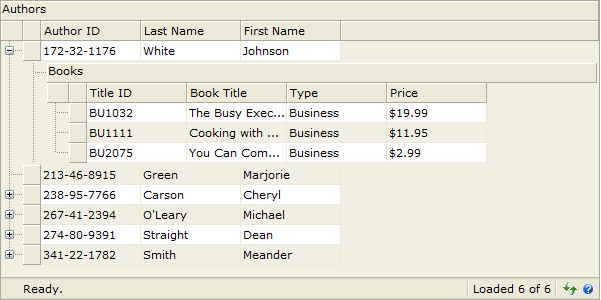

Here is the result :
