In order to complete this walkthrough, you will need the following:

• Access to the Microsoft Access Northwind database.
• Visual Studio 2005/2008/2010 Application.

To create new web application and use numerous column types

1. Bind WebGrid to AccessDataSource.
2. In WebGrid Designer - Advanced tab, expand RootTable and select Columns.

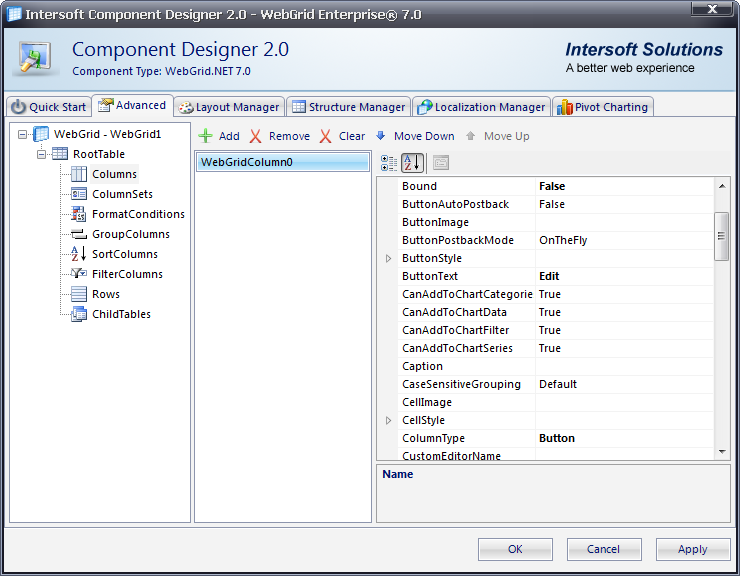

3. Add a new column and set its properties like following:


   Property	Value
   ColumnType	Button
   ButtonText	Edit
   Width	50px
   Bound	False

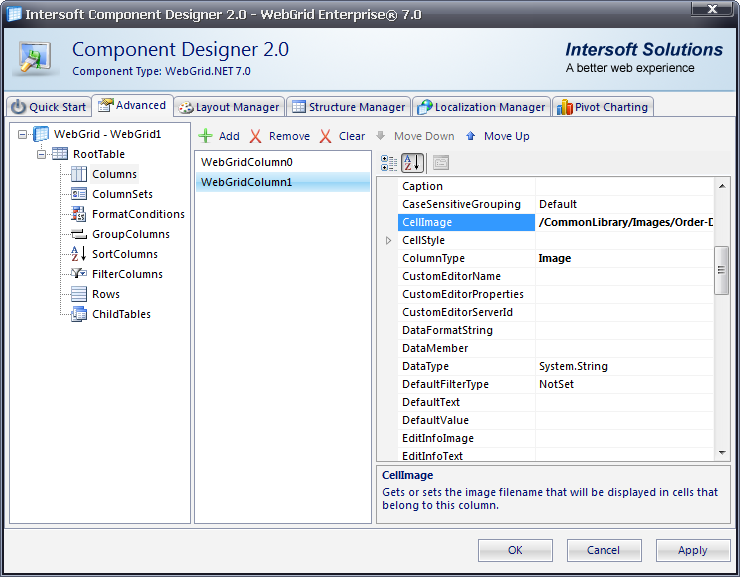

4. Add another new column and set its properties like following:


   Property	Value
   ColumnType	Image
   CellImage	/CommonLibrary/Images/Order-Details.gif
   Width	20px
   Bound	False

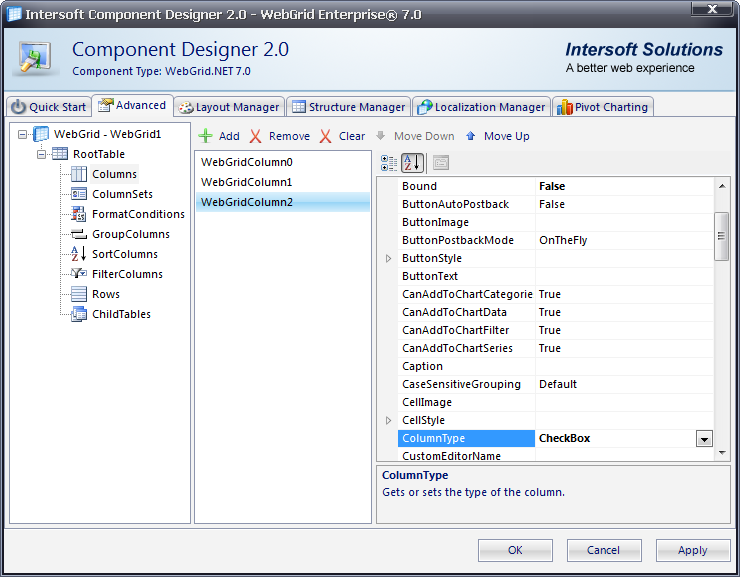

5. Add a new column and set its properties like following:


   Property	Value
   ColumnType	CheckBox
   Width	20px
   Bound	False

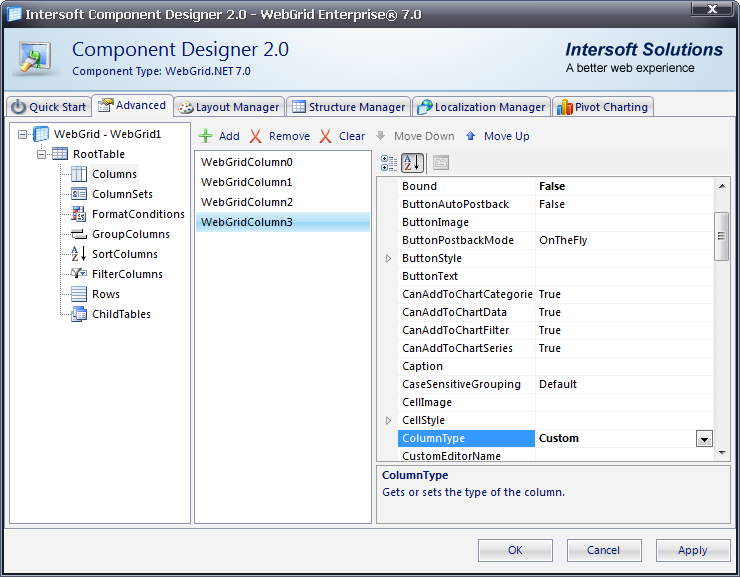

6. Add another new column and set its properties like following:


   Property	Value
   ColumnType	Custom
   Width	150px
   Bound	False



7. Now, select LayoutSettings node and set RowHeightDefault to 25px. Then, expand ButtonStyle node and set its properties like following:


   Property	Value
   BackColor	LighSteelBlue
   BorderColor	Navy
   BorderStyle	Solid
   BorderWidth	1px



8. Set WebGrid's width to 800px from its properties.
9. Now, switch to HTML view and add OnInitializeRow="WebGrid1_InitRow" in the WebGrid tag.
10. Switch back to code behind and add the following codes:



    C#	Copy Code
    protected void WebGrid1_InitRow(object sender ISNet.WebUI.WebGrid.RowEventArgs e) { if (e.Row.Type == RowType.Record) { WebGridCellCollection cells = e.Row.Cells; cells.GetNamedItem("Custom").Text = "<b>Custom<b>"; } }

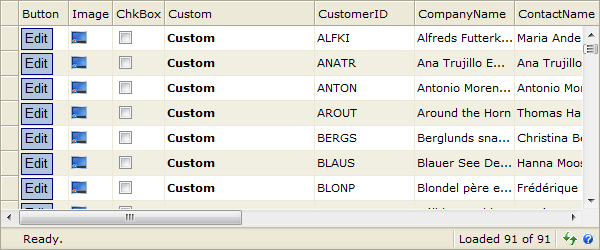

11. Compile and run the WebForm. The WebGrid will look like following.
