This walkthrough shows you how to use IsSubObject and SubObjectContext to retrieve the target drop object of WebNavPane control.

During this walkthrough, you will learn how to do the following:

Use WebDragDropExtender to allow the drag panel dragged to drop panel.
Use IsSubObject and SubObjectContext.
Integrate WebDragDropExtender and Intersoft controls.

Prerequisites

In order to complete this walkthrough, you will need the following:

Visual Studio 2005 Application.

Step-By-Step Instructions

To enable a panel server control to be dragable across child IFRAMEs.

Launch Visual Studio.NET 2005.
Click on File menu, then select New and click Web Site.
Select ASP.NET Web Site in the Template box and set Location to HTTP.
Named the Web Site and click OK.
Right-click on Project's name and select Add New Item.
Select Intersoft AppForm in the My Templates box and named it as Walkthrough.aspx.

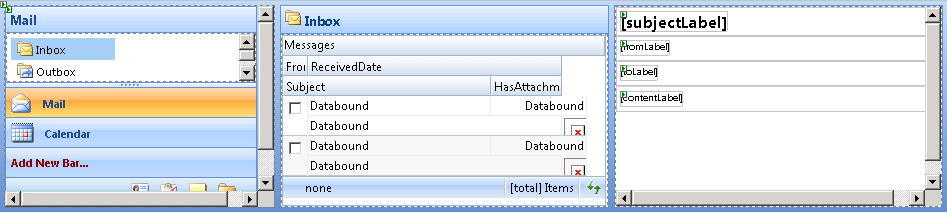

Drag WebPaneManager instance from ToolBar to WebForm and set the pane to 3 parts.
Drag WebNavPane instance to the first pane. Don't forget to set the WebNavPane's bar and items.
Drag WebGrid instance to the second pane.
Drag WebFlyPostBackManager instance to the page.
Drag WebDragDropExtender instance from ToolBar to WebForm.

Set the grid's datasource from code behind.

Copy Code

protected void WebGrid1_InitializeDataSource(object sender, ISNet.WebUI.WebGrid.DataSourceEventArgs e)
{
    XmlDataDocument xml = new XmlDataDocument();
    WebNavPane navPane = WebPaneManager1.FindControl("WebNavPane1") as WebNavPane;

    if (!IsPostBack)
        xml.DataSet.ReadXml(Server.MapPath("Inbox_Data.xml"), XmlReadMode.Auto);
    else
        xml.DataSet.ReadXml(Server.MapPath(navPane.ActiveBar.ActiveBarItem.Text + "_Data.xml"), XmlReadMode.Auto);

    if (xml.DataSet.Tables.Count > 0)
    {
        e.DataSource = xml.DataSet.Tables[0].Copy();
    }
    else
    {
        xml.DataSet.ReadXmlSchema(Server.MapPath("Schema.xml"));
        e.DataSource = xml.DataSet.Tables[0].Clone();
    }
}

You also need to set the InitializeRow and RowChanged event handler and use the following code:

Copy Code

protected void WebGrid1_RowChanged(object sender, RowChangedEventArgs e)
{
    if (e.Row.Type == RowType.Record)
    {
        // get the content's object
        Label subjectLabel = WebPaneManager1.FindControl("subjectLabel") as Label;
        Label toLabel = WebPaneManager1.FindControl("toLabel") as Label;
        Label fromLabel = WebPaneManager1.FindControl("fromLabel") as Label;
        Label contentLabel = WebPaneManager1.FindControl("contentLabel") as Label;

        // set the content's data
        subjectLabel.Text = e.Row.Cells.GetNamedItem("Subject").Text;
        toLabel.Text = "To : " + e.Row.Cells.GetNamedItem("To").Text;
        fromLabel.Text = "From : " + e.Row.Cells.GetNamedItem("From").Text;
        contentLabel.Text = e.Row.Cells.GetNamedItem("Contents").Text;
    }
}

protected void WebGrid1_InitializeRow(object sender, RowEventArgs e)
{
    if (e.Row.Type == RowType.Record)
    {
        WebGridCell hasAttachment = e.Row.Cells.GetNamedItem("HasAttachment");

        if (hasAttachment.Value.ToString() == "True")
            hasAttachment.Text = "../images/Attachment.gif";
        else
            hasAttachment.Text = "../images/wg_blank.gif";
    }
}

Click on WebDragDropExtender instance and press F4.

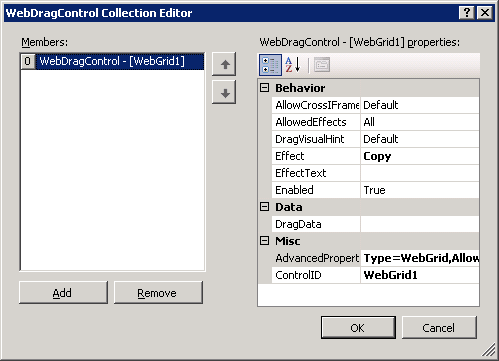

On DragControls property, click the (collection) button to open WebDragControl Collection Editor. You can set which panel will be the DragControl.

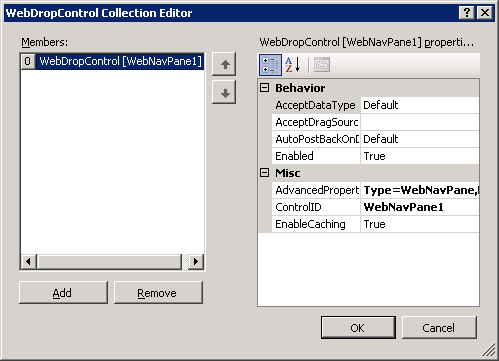

On DropControls property, click the (collection) button to open WebDropControl Collection Editor. You can set which panel will be the DropControl.

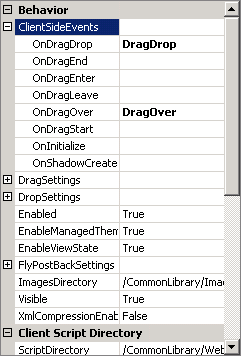

In ClientSideEvents, set OnDragOver to DragOver.
In ClientSideEvents, set OnDragDrop to DragDrop.

Here is the complete javascript code for all the client side events:

JavaScript

Copy Code

function DragOver(controlId, e, dropObject)
{
    if (dropObject.IsSubObject)
    {
        /* get the context of the sub object being hovered */
        var dropItem = dropObject.SubObjectContext;

        /* if the hovered item's type is WebNavBar */
        if (dropItem.ItemType == "WebNavBar")
        {
            /* get the real WebNavBar object being hovered */
            var bar = dropItem.ItemObject;

            /* set effect text based on hovered item to give feedback to user */
            switch (bar.Text)
            {
                case "Mail":
                    e.EffectText = "";
                    break;

                case "Calendar":
                    e.EffectText = "Add mail items to calendar.";
                    break;

                case "Contacts":
                    e.EffectText = "Add sender to contact.";
                    break;

                case "Tasks":
                    e.EffectText = "Create new task for the selected mail items.";
                    break;

                case "Notes":
                    e.EffectText = "Add mail items to notes.";
                    break;

                case "Journals":
                    e.EffectText = "Add mail items to journal.";
                    break;
            }
        }
        else if (dropItem.ItemType == "WebNavBarItem")
        {
            var navPane = ISGetObject("WebNavPane1");
            var activeBar = navPane.GetActiveBar();
            var dropItem = dropItem.ItemObject;

            if (activeBar.Text == "Mail")
            {
                var activeItem = activeBar.GetActiveBarItem();

                if (activeItem.Text == dropItem.Text)
                {
                    e.Effect = ISDragDropEffects.NotAllowed;
                    e.EffectText = "Cannot move mail items to the same folder.";
                }
                else
                {
                    e.Effect = ISDragDropEffects.Move;
                    e.EffectText = "Move mail items to " + dropItem.Text + "";
                }
            }
        }
    }
    else
    {
        e.EffectText = "";
    }
}

function DragDrop(controlId, e, dropObject)
{
    if (dropObject.IsSubObject)
    {
        /* get the context of the sub object being hovered */
        var dropItem = dropObject.SubObjectContext;

        /* if the hovered item's type is WebNavBar */
        if (dropItem.ItemType == "WebNavBar")
        {
            alert("Perform action such as show the create new '" + dropItem.ItemObject.Text + "' dialog box.");
        }
        else
        {
            if (e.Effect == ISDragDropEffects.Move)
            {
                var np = ISGetObject("WebNavPane1");
                var activeBar = np.GetActiveBar();
                var activeItem = activeBar.GetActiveBarItem();

                /* We need to serialize DragData to xml first because object can't be send as event argument.
                   This process optimizes the data sent to the server during AJAX callback for best performance.
                */
                var s = "<dragdata>";
                s += "<currentview>" + activeItem.Text + "</currentview>";
                s += "<targetview>" + dropItem.ItemObject.Text + "</targetview>";
                s += "<maildata>";

                /* loop through the dragged mail items from WebGrid
                   notice that e.DragObject.Data is WebGridDragData object.
                */
                var draggedRows = e.DragObject.Data.Rows;
                for (var i=0; i<draggedrows.length/>";
                }

                s += "</maildata>";
                s += "</dragdata>";
                e.data = s;

                /* proceed with move mail items - see OnDragDrop event in server side */
                return true;
            }
        }
    }

    return false;
}

function ReinitializeDragControls()
{
    setTimeout(function()
    {
        /* this function needs to be called when the Grid is refreshed due to AJAX callback */
        var extender = ISGetObject("WebDragDropExtender1");
        extender.ReinitializeDragControls();
    }, 100);
}

function RefreshMailItems()
{
    var grid = ISGetObject("WebGrid1");
    grid.Refresh();
}

/* grid event */
function BeforeRefresh(controlId)
{
    /* unload drag controls to free memory before the Grid is refreshed */
    var extender = ISGetObject("WebDragDropExtender1");
    extender.UnloadDragControls();
}

/* grid event */
function AfterRefresh(controlId)
{
    ReinitializeDragControls();
}

On the server side, you also need to set WebDragDropExtender1_DragDrop and WebNavPane1_ActiveBarItemChanged. Here is the code:

Copy Code

protected void WebDragDropExtender1_DragDrop(object sender, ISNet.WebUI.WebDesktop.WebDragDropEventArgs e)
{
    XmlDocument xml = new XmlDocument();
    xml.LoadXml(e.Data.ToString());

    XmlDocument xmlSource = new XmlDocument();
    string sourceXmlPath = Server.MapPath(xml.SelectSingleNode("//CurrentView").InnerText + "_Data.xml");
    xmlSource.Load(sourceXmlPath);

    XmlDocument xmlTarget = new XmlDocument();
    string targetXmlPath = Server.MapPath(xml.SelectSingleNode("//TargetView").InnerText + "_Data.xml");
    xmlTarget.Load(targetXmlPath);

    XmlNodeList mailItems = xml.SelectNodes("//MailData/Item");
    foreach (XmlNode item in mailItems)
    {
        string messageID = item.Attributes.GetNamedItem("MessageID").Value;
        XmlNode srcNode = xmlSource.SelectSingleNode("//MailMessages[MessageID='" + messageID + "']");

        srcNode.ParentNode.RemoveChild(srcNode);
        XmlNode newNode = xmlTarget.CreateNode(XmlNodeType.Element, "MailMessages", null);
        newNode.InnerXml = srcNode.InnerXml;
        xmlTarget.DocumentElement.AppendChild(newNode);
    }

    xmlSource.Save(sourceXmlPath);
    xmlTarget.Save(targetXmlPath);

    WebDragDropExtender1.ClientAction.Alert("Successfully moved " + mailItems.Count.ToString()
        + " item(s) to " + xml.SelectSingleNode("//TargetView").InnerText + ".");

    WebDragDropExtender1.ClientAction.InvokeScript("RefreshMailItems();");
}

protected void WebNavPane1_ActiveBarItemChanged(object sender, ActiveBarItemChangedEventArgs e)
{
    XmlDataDocument xml = new XmlDataDocument();
    xml.DataSet.ReadXml(Server.MapPath(e.ActiveBarItem.Text + "_Data.xml"), XmlReadMode.Auto);

    WebGrid grid = WebPaneManager1.FindControl("WebGrid1") as WebGrid;
    DataTable dt = null;

    if (xml.DataSet.Tables.Count > 0)
        dt = xml.DataSet.Tables[0].Copy();
    else
    {
        xml.DataSet.ReadXmlSchema(Server.MapPath("Schema.xml"));
        dt = xml.DataSet.Tables[0].Clone();
    }

    fpb.ClientAction.InvokeScript("BeforeRefresh();");

    grid.SetSelectedObject(null);
    grid.DataSource = dt;
    grid.RequiresUIRefresh = true;
    grid.RebindDataSource();

    fpb.ClientAction.InvokeScript("AfterRefresh();");
}

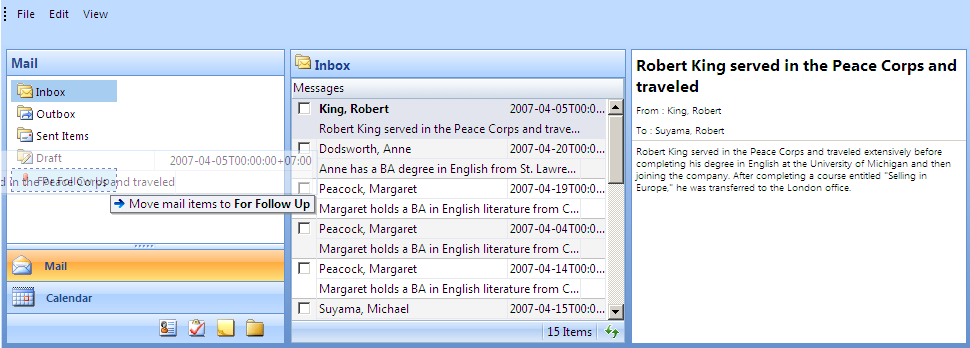

Run and compile the project.
