This walkthrough shows you how to create Outlook style drag and drop application.

During this walkthrough, you will learn how to do the following:

Use WebDragDropExtender to allow the drag grid row dragged to drop WebNavPane.

Prerequisites

In order to complete this walkthrough, you will need the following:

Visual Studio 2005 Application.
Intersoft controls WebGrid and WebDesktop

Step-By-Step Instructions

To create an Outlook Style Drag and Drop Application.

Launch Visual Studio.NET 2005.
Open an Outlook sample. (Reference Sample: WebGridSamples/Outlook2007Page.aspx).
Drag WebDragDropExtender into the WebForm.
Click on WebDragDropExtender instance and press F4.

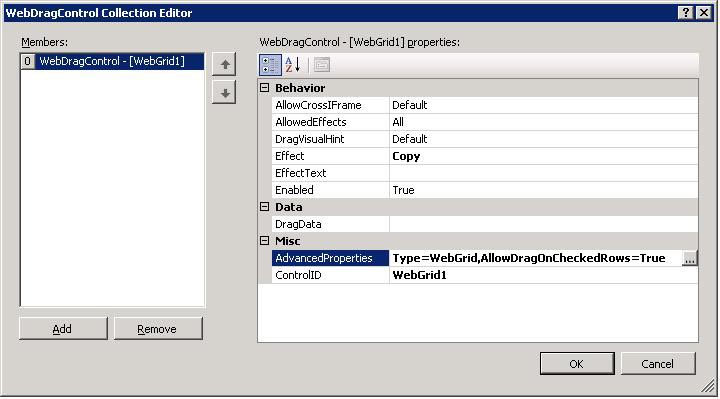

On DragControls property, click the (collection) button to open WebDragControl Collection Editor. You can set which panel will be the DropControl.

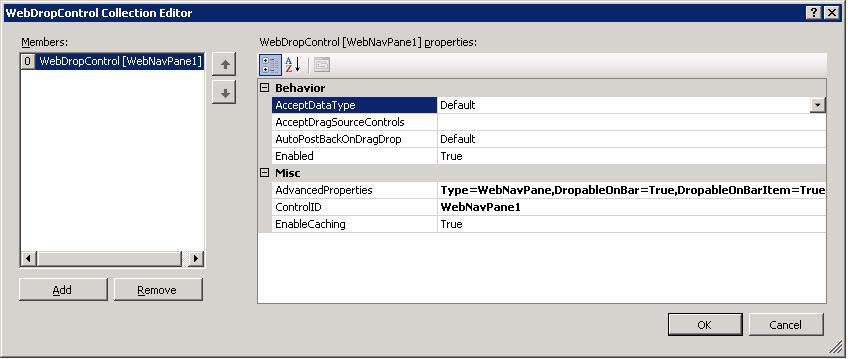

On DropControls property, click the (collection) button to open WebDropControl Collection Editor. You can set which panel will be the DropControl.

Create 2 clientside events from your WebDragDropExtender, which are onDragDrop and onDragOver and create the functions as following:

JavaScript

Copy Code

function DragOver(controlId, e, dropObject)
{
    if (dropObject.IsSubObject)
    {
        /* get the context of the sub object being hovered */
        var dropItem = dropObject.SubObjectContext;

        /* if the hovered item's type is WebNavBar */
        if (dropItem.ItemType == "WebNavBar")
        {
            /* get the real WebNavBar object being hovered */
            var bar = dropItem.ItemObject;

            /* set effect text based on hovered item to give feedback to user */
            switch (bar.Text)
            {
                case "Mail":
                     e.EffectText = "";
                    break;

                case "Calendar":
                    e.EffectText = "Add mail items to calendar.";
                      break;

                case "Contacts":
                    e.EffectText = "Add sender to contact.";
                    break;

                case "Tasks":
                    e.EffectText = "Create new task for the selected mail items.";
                    break;

                case "Notes":
                    e.EffectText = "Add mail items to notes.";
                    break;

                case "Journals":
                    e.EffectText = "Add mail items to journal.";
                    break;
            }
        }
        else if (dropItem.ItemType == "WebNavBarItem")
        {
            var navPane = ISGetObject("WebNavPane1");
            var activeBar = navPane.GetActiveBar();
            var dropItem = dropItem.ItemObject;

            if (activeBar.Text == "Mail")
            {
                var activeItem = activeBar.GetActiveBarItem();

                if (activeItem.Text == dropItem.Text)
                {
                    e.Effect = ISDragDropEffects.NotAllowed;
                    e.EffectText = "Cannot move mail items to the same folder.";
                }
                else
                {
                    e.Effect = ISDragDropEffects.Move;
                    e.EffectText = "Move mail items to " + dropItem.Text + "";
                }
            }
        }
    }
    else
    {
        e.EffectText = "";
    }
}

function DragDrop(controlId, e, dropObject)
{
    if (dropObject.IsSubObject)
    {
        /* get the context of the sub object being hovered */
        var dropItem = dropObject.SubObjectContext;

        /* if the hovered item's type is WebNavBar */
        if (dropItem.ItemType == "WebNavBar")
        {
            alert("Perform action such as show the create new '" + dropItem.ItemObject.Text + "' dialog box.");
        }
        else
        {
            if (e.Effect == ISDragDropEffects.Move)
            {
                var np = ISGetObject("WebNavPane1");
                var activeBar = np.GetActiveBar();
                var activeItem = activeBar.GetActiveBarItem();

                /* We need to serialize DragData to xml first because object can't be send as event argument.
                   This process optimizes the data sent to the server during AJAX callback for best performance.
                */
                var s = "<dragdata>";
                s += "<currentview>" + activeItem.Text + "</currentview>";
                s += "<targetview>" + dropItem.ItemObject.Text + "</targetview>";
                s += "<maildata>";

                /* loop through the dragged mail items from WebGrid
                   notice that e.DragObject.Data is WebGridDragData object.
                */
                var draggedRows = e.DragObject.Data.Rows;
                for (var i=0; i<draggedrows.length/>";
                }

                s += "</maildata>";
                s += "</dragdata>";
                e.data = s;

                /* proceed with move mail items - see OnDragDrop event in server side */
                return true;
            }
        }
    }
    return false;
}

In WebGrid, add 2 events which are onBeforeResponseProcess and onAfterResponseProcess.

JavaScript

Copy Code

function ReinitializeDragControls()
{
    setTimeout(function()
    {
        /* this function needs to be called when the Grid is refreshed due to AJAX callback */
        var extender = ISGetObject("WebDragDropExtender1");
        extender.ReinitializeDragControls();
    }, 100);
}

function BeforeRefresh(controlId) // taken from onBeforeResponseProcess
{
    /* unload drag controls to free memory before the Grid is refreshed */
    var extender = ISGetObject("WebDragDropExtender1");
    extender.UnloadDragControls();
}

function AfterRefresh(controlId) // taken from onAfterResponseProcess
{
    ReinitializeDragControls();
}

Enable the AutoPostBackDragDrop property and set PostBackMode to FlyPostBack from the WebDragDropExtender properties.
Run and compile the project.
