This walkthrough shows you how to use GetDataPresent method to query object type in OnDragOver event.

During this walkthrough, you will learn how to do the following:

Set ASP.NET Panel for dragable panel and dropable panel.
Use WebDragDropExtender to allow the dragable panel dragged to dropable panel.

Prerequisites

In order to complete this walkthrough, you will need the following:

Visual Studio 2005 Application.

Step-By-Step Instructions

To use GetDataPresent method to query to object type in OnDragOver event.

Launch Visual Studio.NET 2005.
Click on File menu, then select New and click Web Site.
Select ASP.NET Web Site in the Template box and set Location to HTTP.
Named the Web Site and click OK.
Right-click on Project's name and select Add New Item.
Select Intersoft AppForm in the My Templates box and named it as Walkthrough.aspx.
Drag 4 ASP.Net Panel to WebForm.
Drag WebDragDropExtender instance from ToolBar to WebForm.

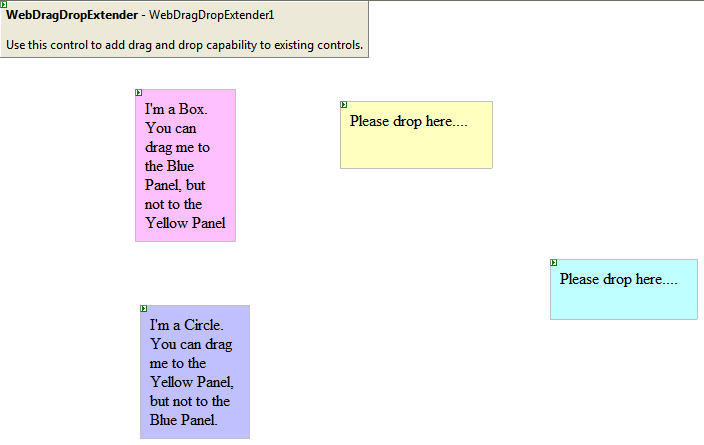

Set the BackColor of each ASP.NET Panel.
Click on WebDragDropExtender instance and press F4.

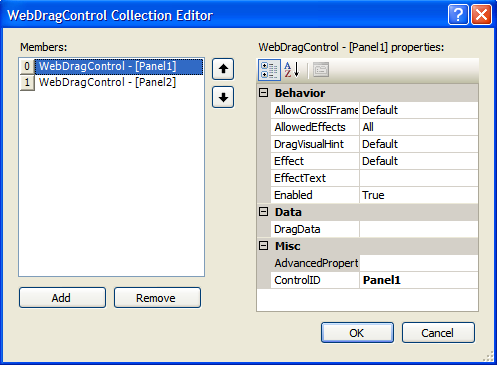

On DragControls property, click the (collection) to open WebDragControl Collection Editor. Set Panel1 and Panel2 as DragControl.

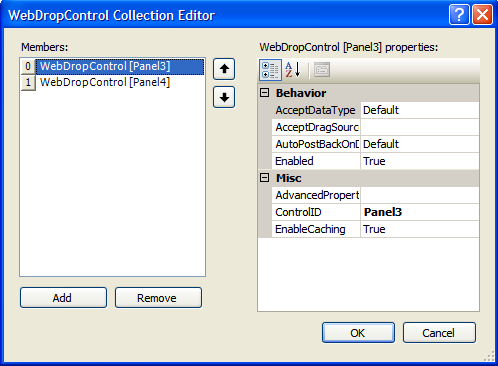

On DropControls property, click the (collection) to open WebDropControl Collection Editor. Set Panel3 and Panel4 as DropControl.

Create Box and Circle object.

JavaScript	Copy Code
function Box() { this._Type = "Box"; ISObject.call(this); } function Circle() { this._Type = "Circle"; ISObject.call(this); }

Assign each Panel with the object.

JavaScript

Copy Code

function DragStart(controlId, dragObject)
{
   var dragControl = dragObject.Owner;

   /* assign DragData based on the dragged control */
   if (dragControl.ControlID == "Panel1")
   {
      dragControl.DragData = new Box();
   }
   else if (dragControl.ControlID == "Panel2")
   {
      dragControl.DragData = new Circle();
   }
}

Specify the effect for each drop able Panel using GetDataPresent method to validate the type of the object.

JavaScript

Copy Code

function DragOver(controlId, e, dropObject)
{
   if (dropObject.Owner.ControlID == "Panel4")
   {
      if (e.GetDataPresent("object", "Box"))
         e.Effect = ISDragDropEffects.Copy;
      else
         e.Effect = ISDragDropEffects.NotAllowed;
   }
   else
   {
      if (e.GetDataPresent("object", "Circle"))
         e.Effect = ISDragDropEffects.Move;
      else
         e.Effect = ISDragDropEffects.NotAllowed;
   }
}

Specify an alert for each DragDrop action.

JavaScript

Copy Code

function DragDrop(controlId, e, dropObject)
{
    // this function is invoked when a valid dragable element is dropped (mouse up).

    if ((e.Effect & ISDragDropEffects.NotAllowed) == ISDragDropEffects.NotAllowed) // notice that we used bitwise operator to check the flag here
    {
        alert("You tried to drop on me, but sorry - not allowed");
    }
    else
    {
        alert("Congratulations. You have successfully drop '" + e.DragObject.Owner.ControlID + "' element to '" + dropObject.Owner.ControlID + "'!");
    }
}

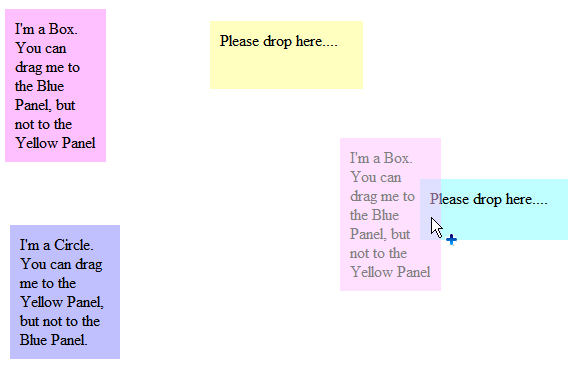

Run the project. You will notice the cursor effect when trying to drag the drag able panel and drop it to the drop able panel.
